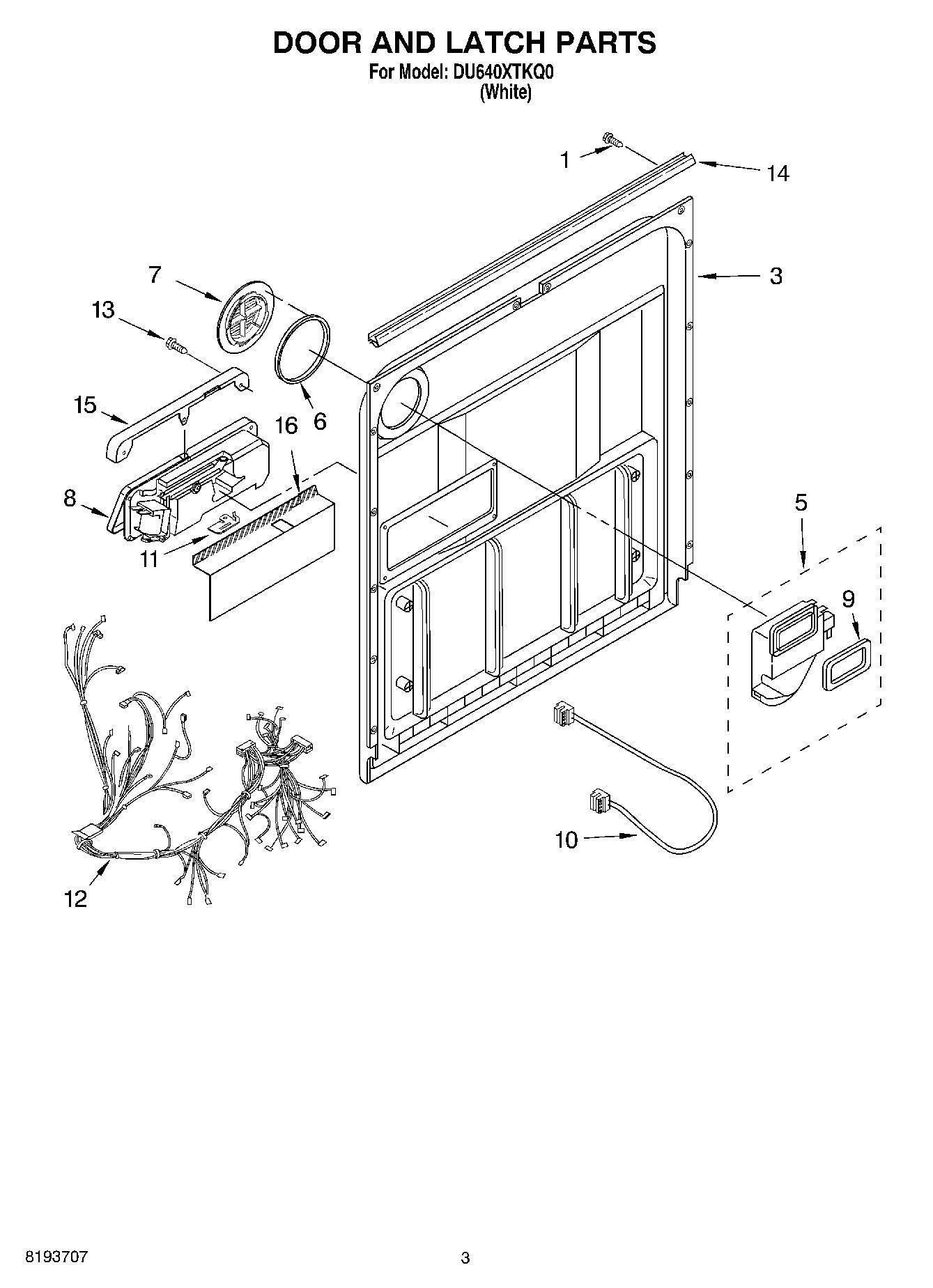

DU640XTKQ0 03 – DOOR AND LATCH

DU640XTKQ0 03 – DOOR AND LATCH

Written by

in

DU640XTKQ0 03 – DOOR AND LATCH

Products

PositionProduct
1WPW10348409 Whirlpool Screw
3WP8269311 Whirlpool Dishwasher Inner Door
5WP8545533 Whirlpool Dishwasher Vent
6WP8269259 Whirlpool Air Vent Gasket
7DEFLECTOR
8Dispenser, Assembly
9WP8269258 Whirlpool Dishwasher Gasket
10Dispenser, Wiring Harness
11WP8533381 Whirlpool Dishwasher Sensor
12Wiring Harness Main
13WPW10177098 Whirlpool Dishwasher Screw
14WP8269296 Whirlpool Dishwasher Seal
15WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
16Shield, Dispenser
