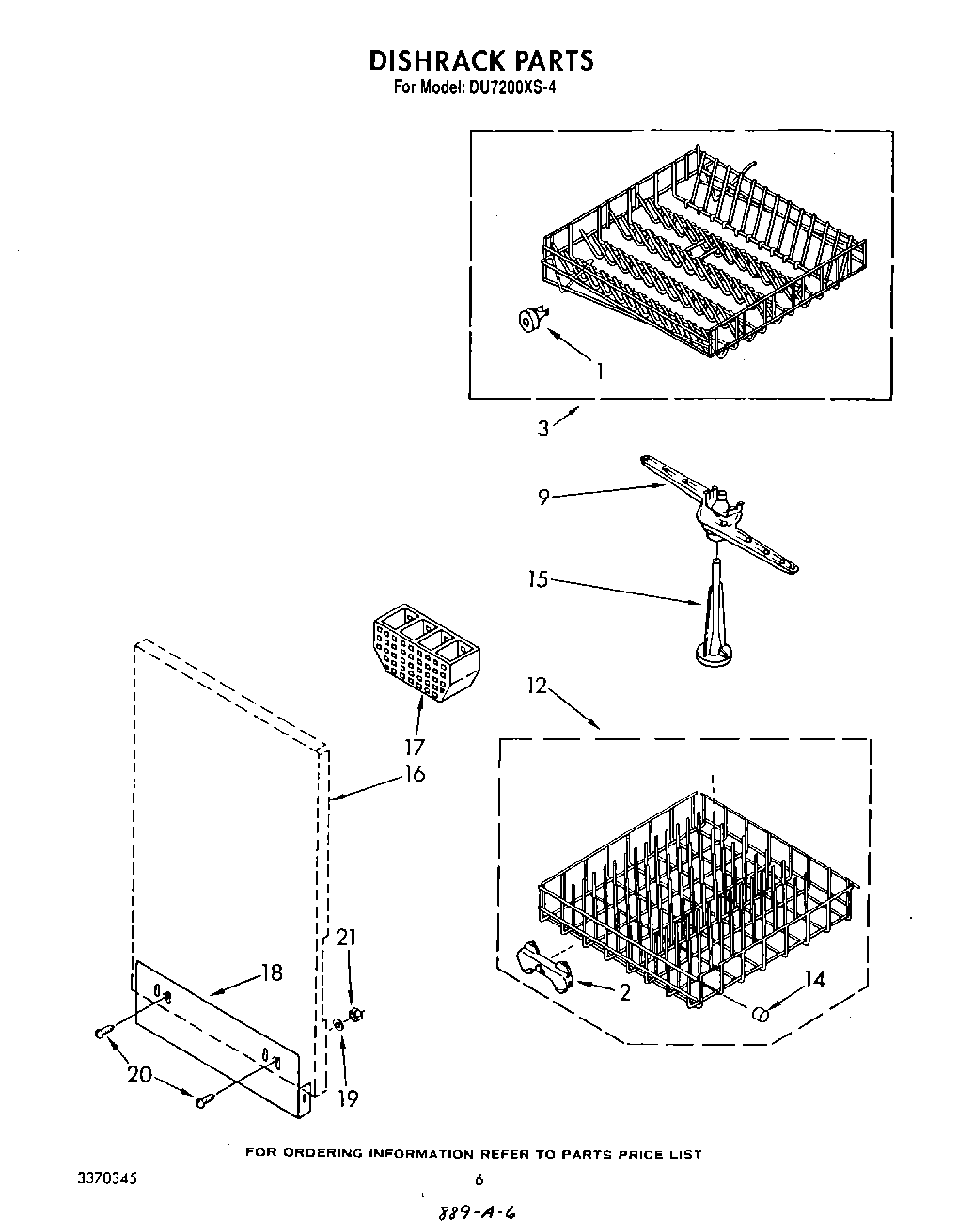

DU7200XS4 04 – DISHRACK

Products

PositionProduct
1Wheel & Axle Assembly (4)
2WP3376961 Whirlpool Dishwasher Wheel
3W11169039 Whirlpool Dishwasher Dish Rack
9WP304204 Whirlpool Dishwasher Spray Arm
12W10311986 Whirlpool Dishwasher Lower Rack
14Bumper
15Tower
16Panel, Reversible Side
17WP8539066 Whirlpool Dishwasher Basket Ware
18Panel, Lower Side
19W11089212 Whirlpool Washer
20Screw, Lower Side Panel Mounting (2)
21W10080180 Whirlpool Nut
