DU7200XS4 06 – WIRING HARNESS – Aparts

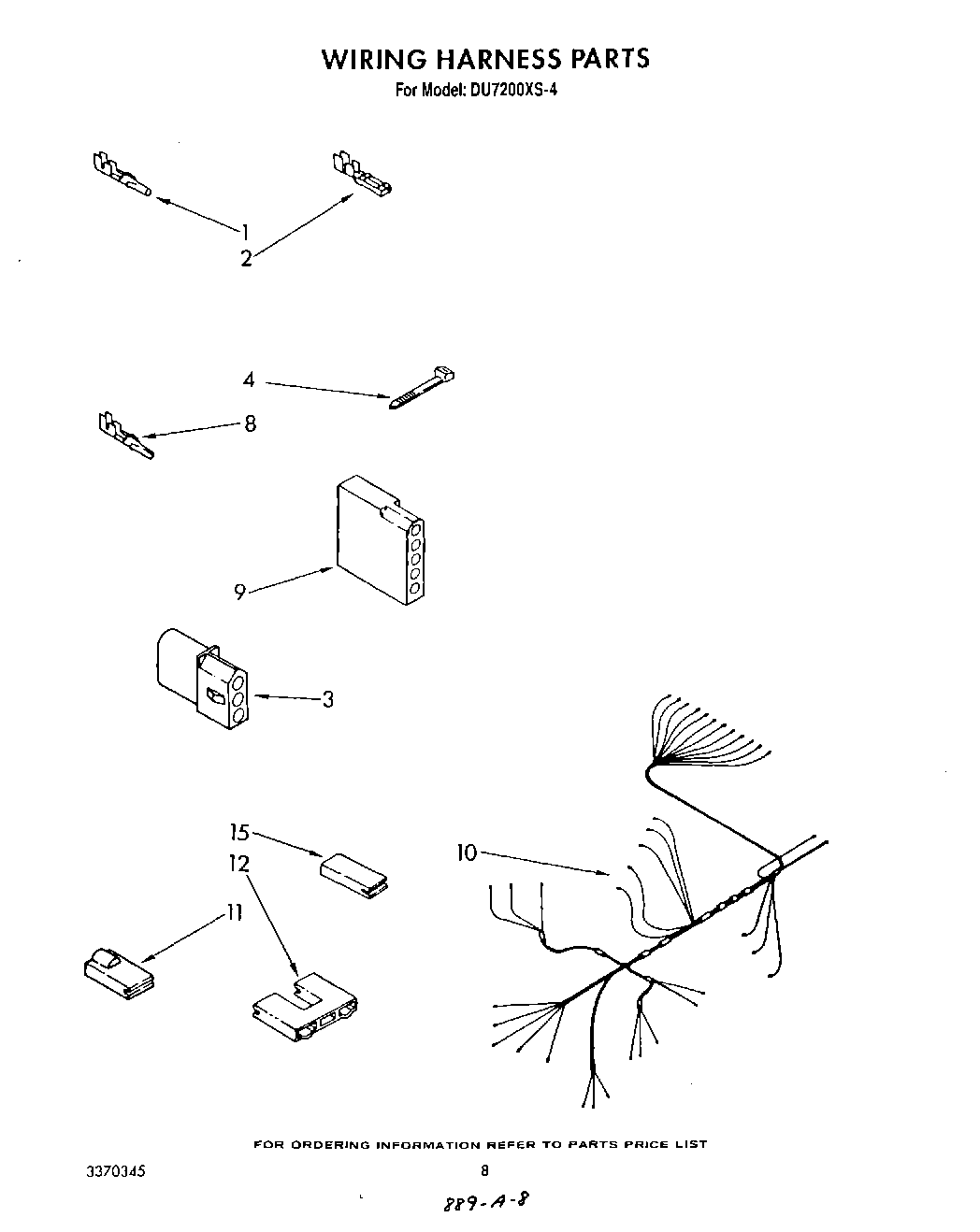

DU7200XS4 06 – WIRING HARNESS

Products

Position	Product
1	WP94614 Whirlpool Terminal
2	Terminal, Female
3	Connector (Door Switch)
4	WPW10339879 Whirlpool Wire Tie
8	WP596797 Whirlpool Terminal
9	Receptacle (5-Circuit)
10	Harness, Wiring
11	Insulator, Terminal
12	Terminal Insulator
12	Connector Block (Alternate)
15	Connector Block
