DU7400XS3 03 – DOOR

DU7400XS3 03 – DOOR

Written by

in

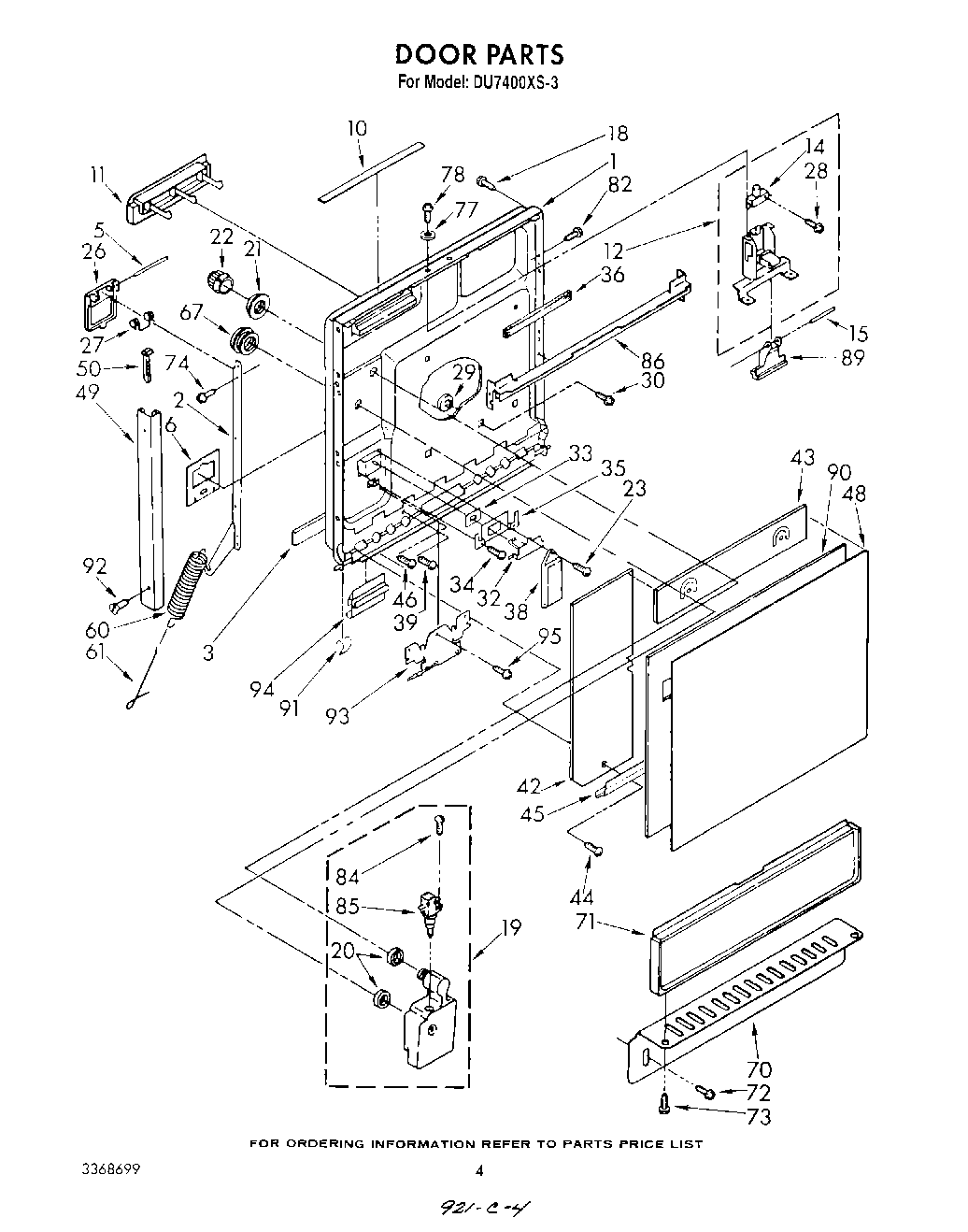

DU7400XS3 03 – DOOR

Products

PositionProduct
1Door, Inner (Includes Illus. 4)
2Support, Door (L.H.)
2Support, Door (R.H.)
3Gasket, Door
54387043 Whirlpool Door Latch Kit
6Barrier
10Label, Users Guide
11Screen, Vent
12Latch Assembly
14Switch, Interlock
14Switch, Interlock (Alternate)
14Switch, Interlock (Alternate)
14Switch, Interlock (Alternate)
15Pin, Pivot
18Screw, 8 x 1-7/8 (2)
19Dispenser, Wetting Agent
20Washer
21Nut, 1-14
22Indicator, Leveler
27WP8066018 Whirlpool Spring Assembly
28Screw, 6-32 x 1
29Button, Retainer (3)
30Screw, 8-18 x 3/8 (3)
32Lever, Catch
33Seal, Lever
35Retainer
36Baffle
38Actuator
39WP304231 Whirlpool Dishwasher Screw
42Barrier, Door
43Barrier, Console
44W11693756 Whirlpool Screw Assembly
45Edging, Panel
48Panel, Front
49Trim, Door R.H.
49Trim, Door (L.H.)
50Clip, Trim Guard (2)
60675611 Whirlpool Spring Assembly
61WP716401 Whirlpool Dishwasher Retainer
67Cap, Drip
70Plate, Toe
71WP3367793 Whirlpool Black Access Panel
72WP90767 Whirlpool Screw
73WP302868 Whirlpool Screw
74WP488627 Whirlpool Refrigerator Screw
77Washer (2)
82WP489069 Whirlpool Compactor Screw
84Screw, 4-20 x 3/8 (2)
85Actuator
86Rail, Support
89WPL 304408
90Spacer, Panel
91Clip, Wire
92Screw, 8 x 1/2 (4)
93Shield, Harness
94WPL 3367720
95Screw, 8-18 x 5/8
