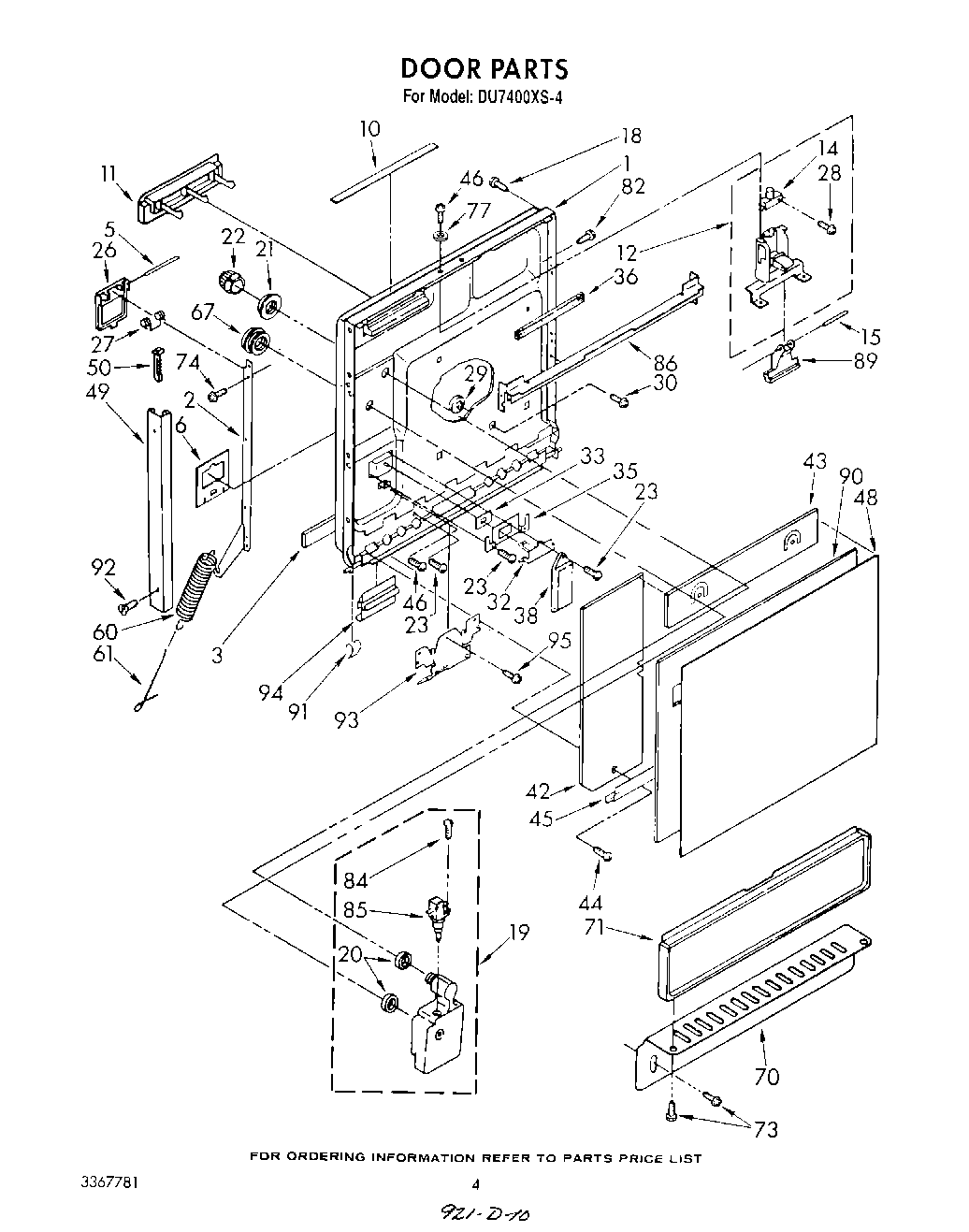

DU7400XS4 03 – DOOR

Products

Position	Product
1	Door, Inner (Includes Illus. 4)
2	Support, Door (L.H.)
2	Support, Door (R.H.)
3	Gasket, Door
5	4387043 Whirlpool Door Latch Kit
6	Barrier
10	Label, Users Guide
11	Screen, Vent
12	Latch Assembly
14	Switch, Interlock
15	Pin, Pivot
18	Screw, 8 x 1-7/8 (2)
19	Dispenser, Wetting Agent
20	Washer
21	Nut, 1-14
22	Indicator, Leveler
23	WP304231 Whirlpool Dishwasher Screw
27	WP8066018 Whirlpool Spring Assembly
28	Screw, 6-32 x 1
29	Button, Retainer (3)
30	Screw, 8-18 x 3/8 (3)
32	Lever, Catch
33	Seal, Lever
35	Retainer
36	Baffle
38	Actuator
42	Barrier, Door
43	Barrier, Console
44	W11693756 Whirlpool Screw Assembly
45	Edging, Panel
46	WP90767 Whirlpool Screw
48	Panel, Front
49	Trim, Door R.H.
49	Trim, Door L.H.
50	Clip, Trim Guard (2)
60	675611 Whirlpool Spring Assembly
61	WP716401 Whirlpool Dishwasher Retainer
67	Cap, Drip
70	Plate, Toe
71	WP3367793 Whirlpool Black Access Panel
73	WP302868 Whirlpool Screw
74	WP488627 Whirlpool Refrigerator Screw
77	Washer (2)
82	WP489069 Whirlpool Compactor Screw
84	Screw, 4-20 x 3/8 (2)
85	Actuator
86	Rail, Support
89	WPL 304408
90	Spacer, Panel
91	Clip, Wire
92	Screw, 8 x 1/2 (4)
93	Shield, Harness
94	WPL 3367720
95	Screw, 8-18 x 5/8
