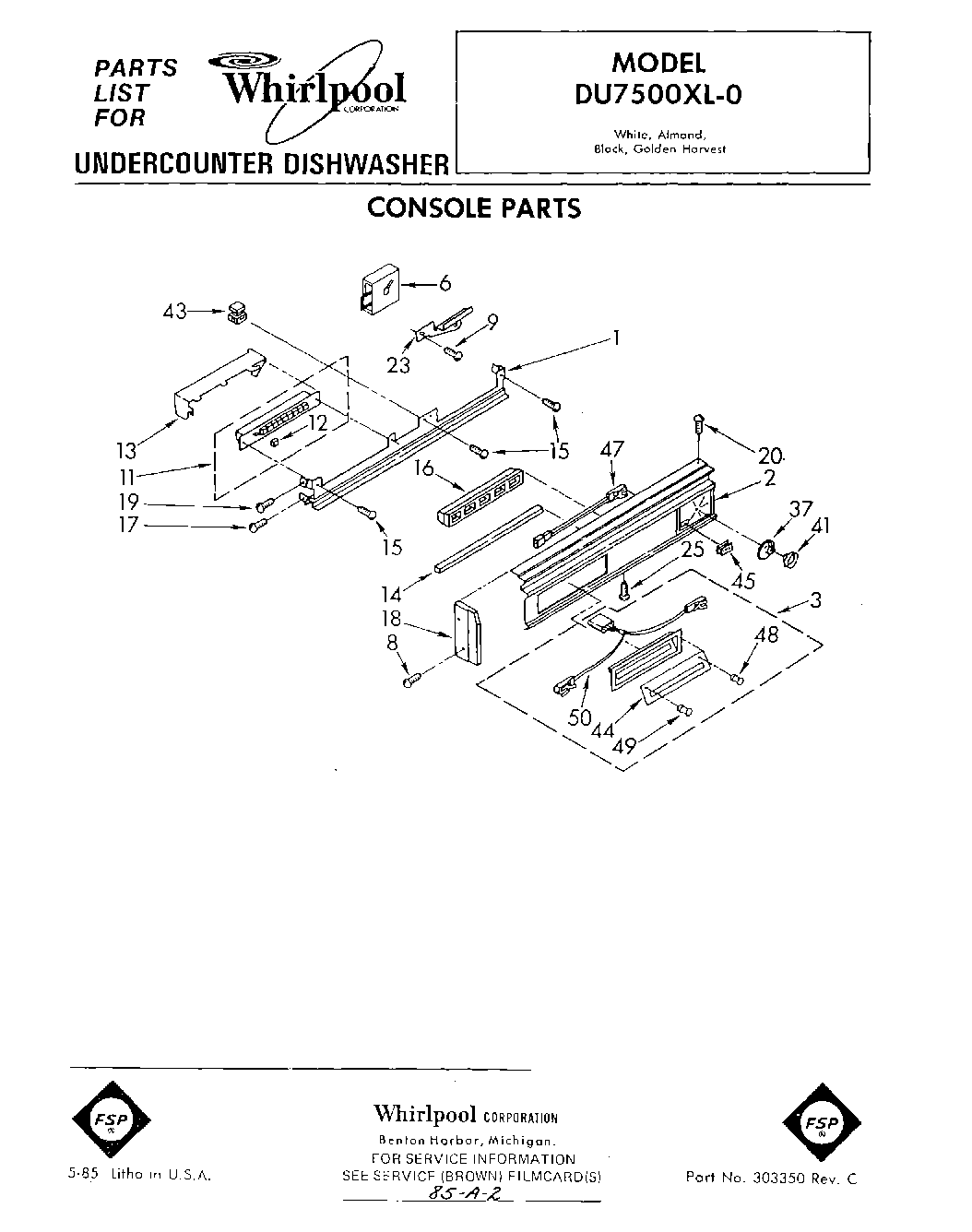

DU7500XL0 01 – CONSOLE

Products

Position	Product
1	Bracket, Console
2	Panel, Escutcheon
3	Bezel Assembly, Pushbutton
6	Timer, Disconnect
8	W10759522 Whirlpool Screw
9	WP356418 Whirlpool Screw
11	Switch, Pushbutton
12	Button (9)
13	Barrier
14	Baffle
15	WP489128 Whirlpool Refrigerator Screw
16	Grille, Vent
18	Cap, End (L.H.)
18	Clock w/Hr. Timer
19	WP488627 Whirlpool Refrigerator Screw
20	W11693756 Whirlpool Screw Assembly
23	Bracket, Timer Mounting
25	WP487353 Whirlpool Refrigerator Screw
37	Dial, Indicator
41	Knob, Timer
43	Relay, Start (Alternate)
43	Relay, Start (Alternate)
43	Relay, Start (Alternate)
44	Escutcheon, Pushbutton Switch
45	Lens, Amber
47	Indicator Light & Connector
48	Lens, Red
49	Lens, Green
50	Right
