DU7500XL0 07 – WIRING HARNESS

DU7500XL0 07 – WIRING HARNESS

Written by

in

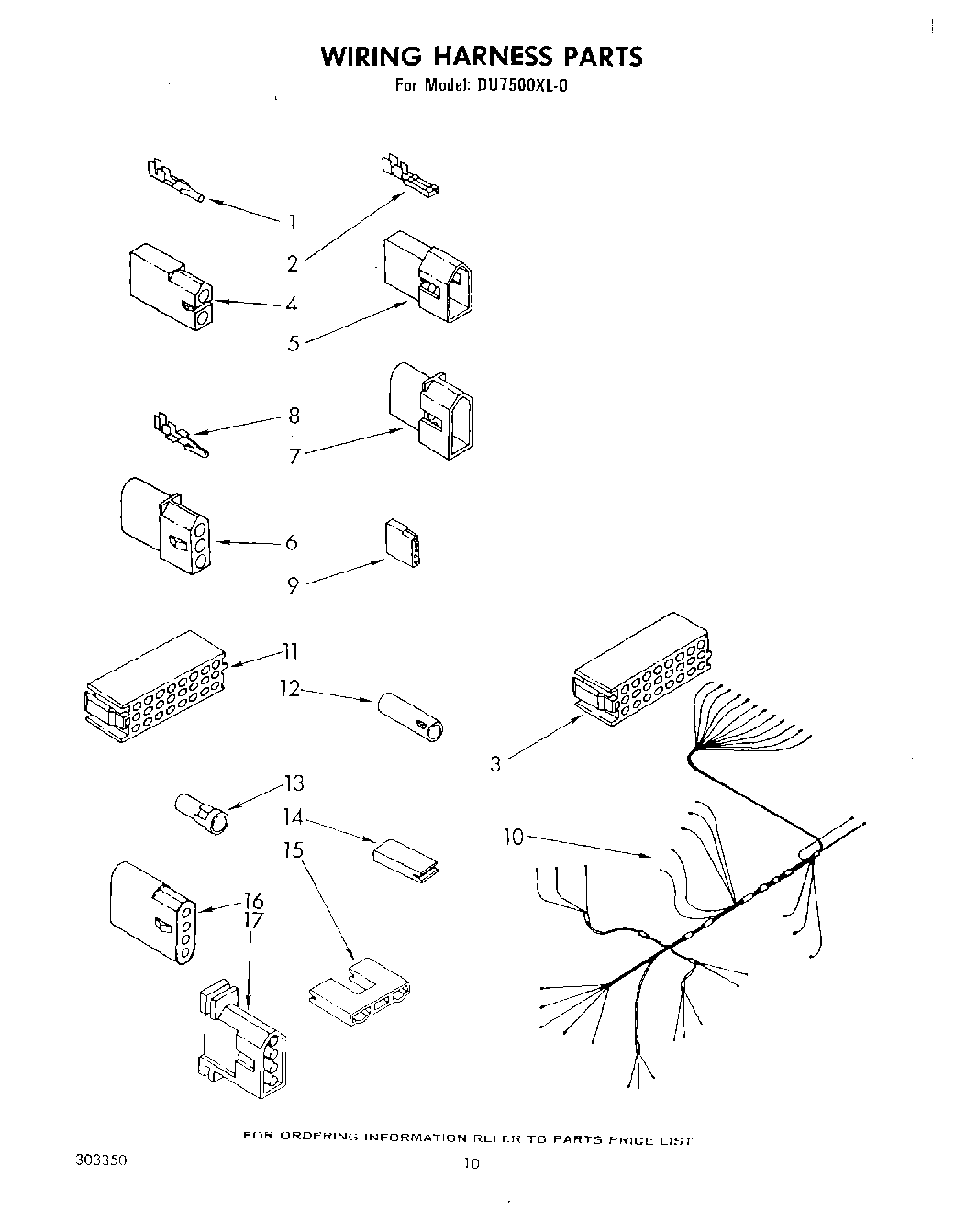

DU7500XL0 07 – WIRING HARNESS

Products

PositionProduct
1WP94614 Whirlpool Terminal
2Terminal, Female
3W10876590 Whirlpool Connector
4Receptacle, Latching (2-Way) (Uses Terminal 94614)
5WP717253 Whirlpool Dishwasher Connector
6Connector (Door Switch)
7353424 Whirlpool Connector
8WP596797 Whirlpool Terminal
9Receptacle (5-Circuit)
10Harness, Wiring
11Timer, Block Disconnect (White)
12Receptacle
13Plug
14Insulator, Terminal
14Connector Block
15Terminal Insulator
15Connector Block (Alternate)
16WPL 717315
17Plug, Terminal
