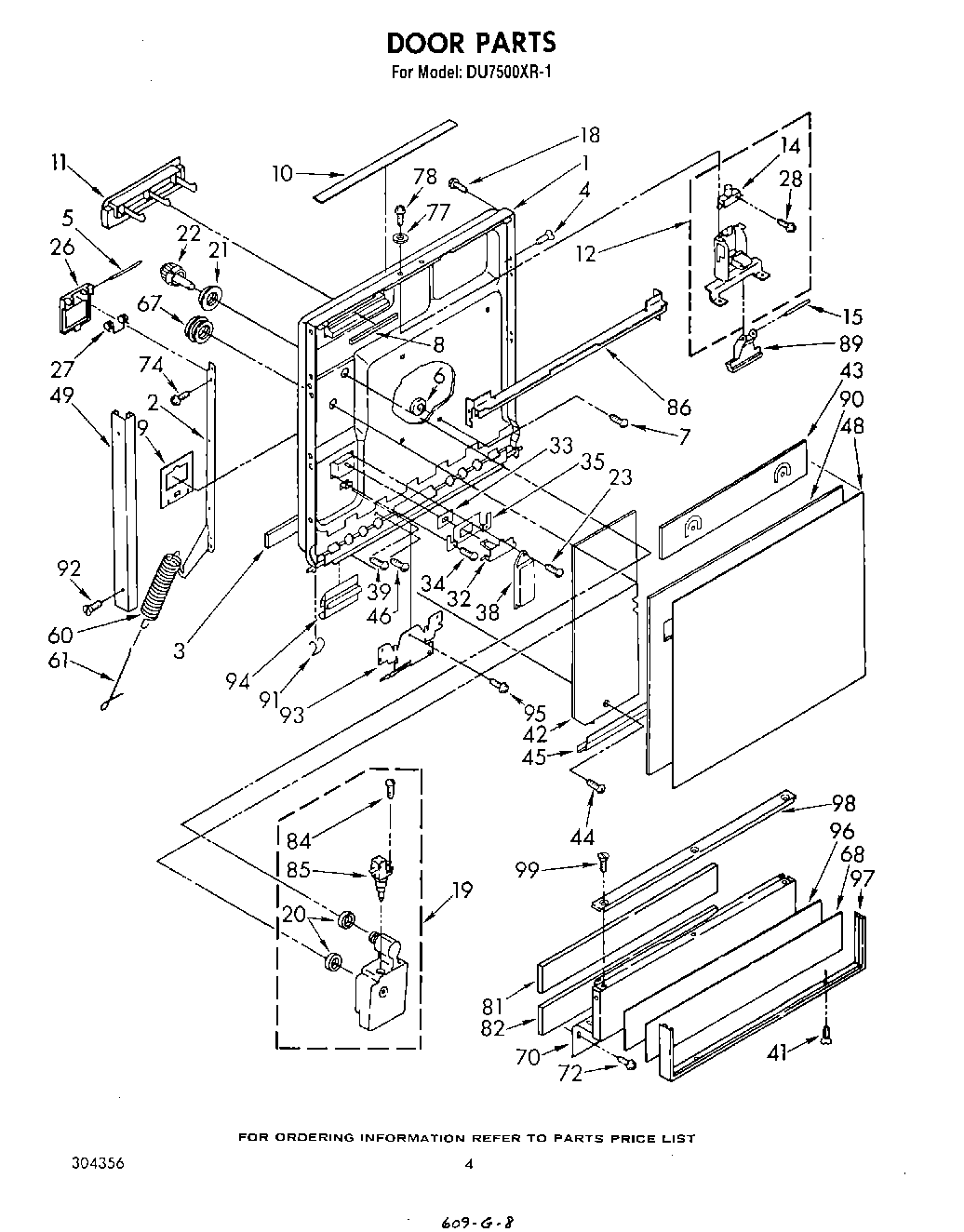

DU7500XR1 03 – DOOR

Products

PositionProduct
1Door, Inner
2Support, Door (R.H.)
2Support Door (L.H.)
3Gasket, Door
4WP489069 Whirlpool Compactor Screw
54387043 Whirlpool Door Latch Kit
6Button, Retainer (3)
7Screw, 8-18 x 3/8 (3)
8Baffle
9Barrier
10Label, User Guide
11Screen, Vent
12Latch Assembly
14Switch, Interlock (Alternate)
14Switch, Interlock (Alternate)
14Switch, Interlock (Alternate)
15Pin, Pivot
18Screw, 8-32 x 1-7/8 Truss Head Tapping (2)
19Dispenser, Wetting Agent
20Washer
21Nut, 1-14
22Indicator, Level
27WP8066018 Whirlpool Spring Assembly
28Screw, 6-32 x 1
32Lever, Catch
33Seal, Lever
35Retainer
38Actuator
39WP304231 Whirlpool Dishwasher Screw
42Barrier, Door
43Barrier, Console
44W11693756 Whirlpool Screw Assembly
45Edging, Panel
48Panel, Front
49Trim, Door (R.H.)
49Trim, Door (L.H.)
60WP304763 Whirlpool Dishwasher Spring
61WP716401 Whirlpool Dishwasher Retainer
67Cap, Drip
68Panel, Access
70Plate, Toe
72WP302868 Whirlpool Screw
74WP488627 Whirlpool Refrigerator Screw
77Washer (2)
78WP90767 Whirlpool Screw
81WPL 304660
82WPL 304661
84Screw, 4-20 x 3/8 (2)
85Actuator
86Rail, Support
89WPL 304408
90Spacer, Panel
91Clip, Wire
93Shield, Harness
94Retainer, Clip
95Screw, 8-18 x 5/8
96WPL 303755
97WPL 303753
98WPL 303754
99302251 Whirlpool Dishwasher Screw
