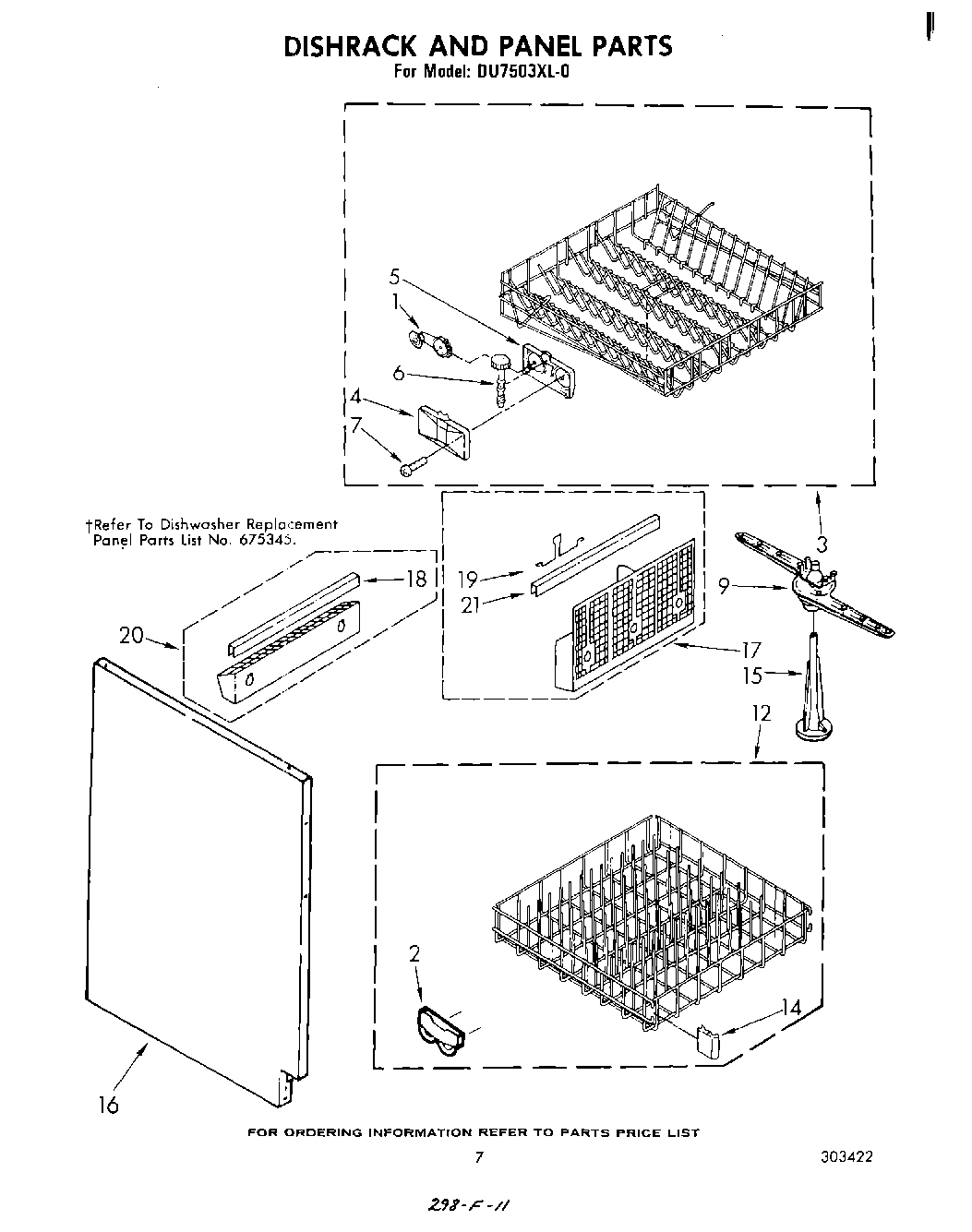

DU7503XL0 05 – DISHRACK AND PANEL

Products

Position	Product
	Panel, L.S.
1	Wheel & Gear Assembly (4)
2	4317933 Whirlpool Lower Rack Wheels
3	W11169039 Whirlpool Dishwasher Dish Rack
4	Cover, Housing (2)
5	Housing, Gear (2)
6	Worm, Dishrack (2)
7	WP9741232 Whirlpool Dishwasher Screw
9	WP304204 Whirlpool Dishwasher Spray Arm
12	W10311986 Whirlpool Dishwasher Lower Rack
14	Bumper (2)
15	Tower
16	Panel, R.S.
17	Silverware Basket Assembly
19	Handle, Basket
20	Utensil Basket Assembly
21	Trim, Basket
