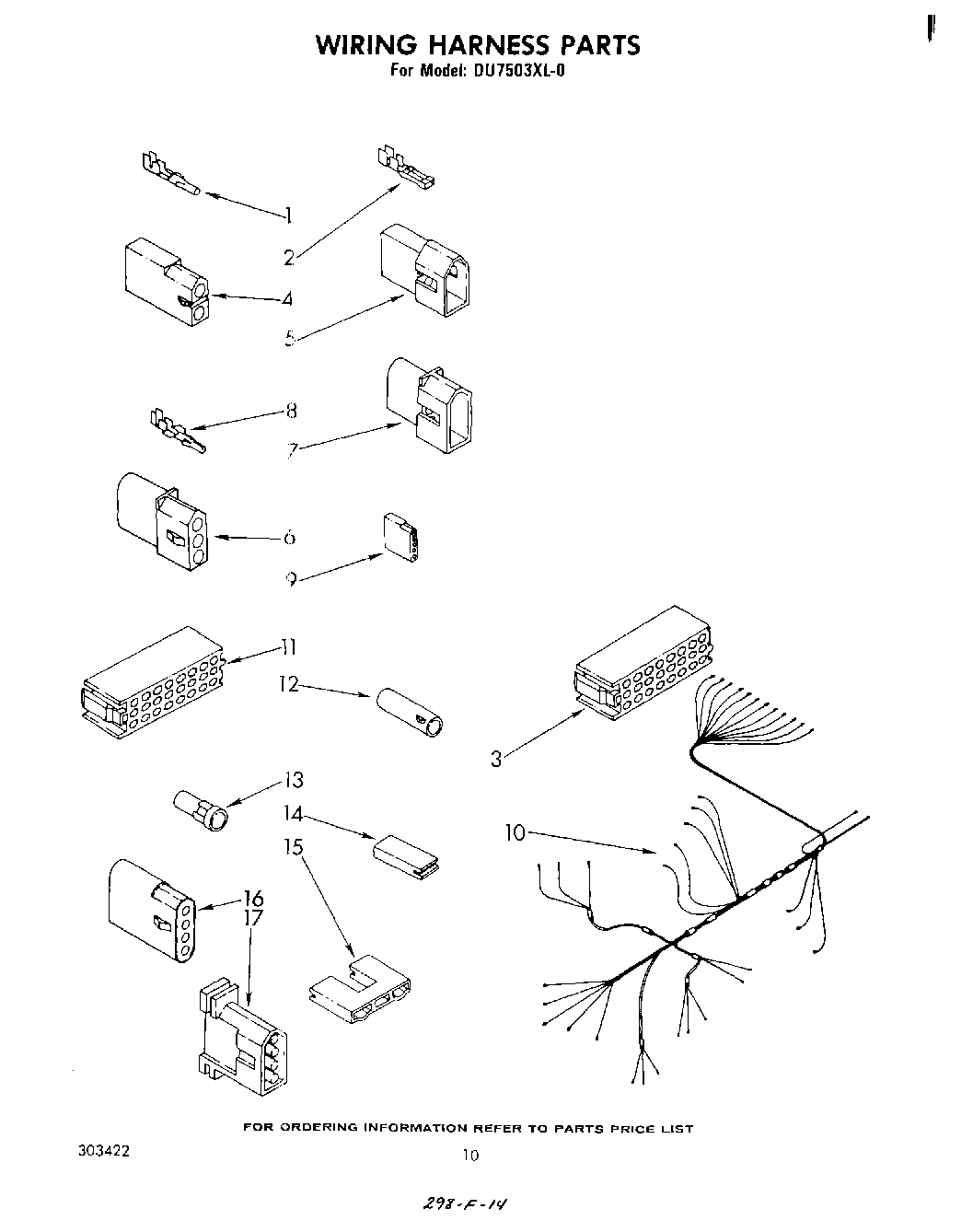

DU7503XL0 07 – WIRING HARNESS

Products

Position	Product
1	WP94614 Whirlpool Terminal
2	Terminal, Female
3	W10876590 Whirlpool Connector
4	Receptacle, Latching (2-Way) (Uses Terminal 94614)
5	WP717253 Whirlpool Dishwasher Connector
6	Connector (Door Switch)
7	353424 Whirlpool Connector
8	WP596797 Whirlpool Terminal
9	Receptacle (5-Circuit)
10	Harness, Wiring
11	Timer, Block Disconnect (White)
12	Receptacle
13	Plug
14	Insulator, Terminal
14	Connector Block
15	Terminal Insulator
15	Connector Block (Alternate)
16	WPL 717315
17	Plug, Terminal
