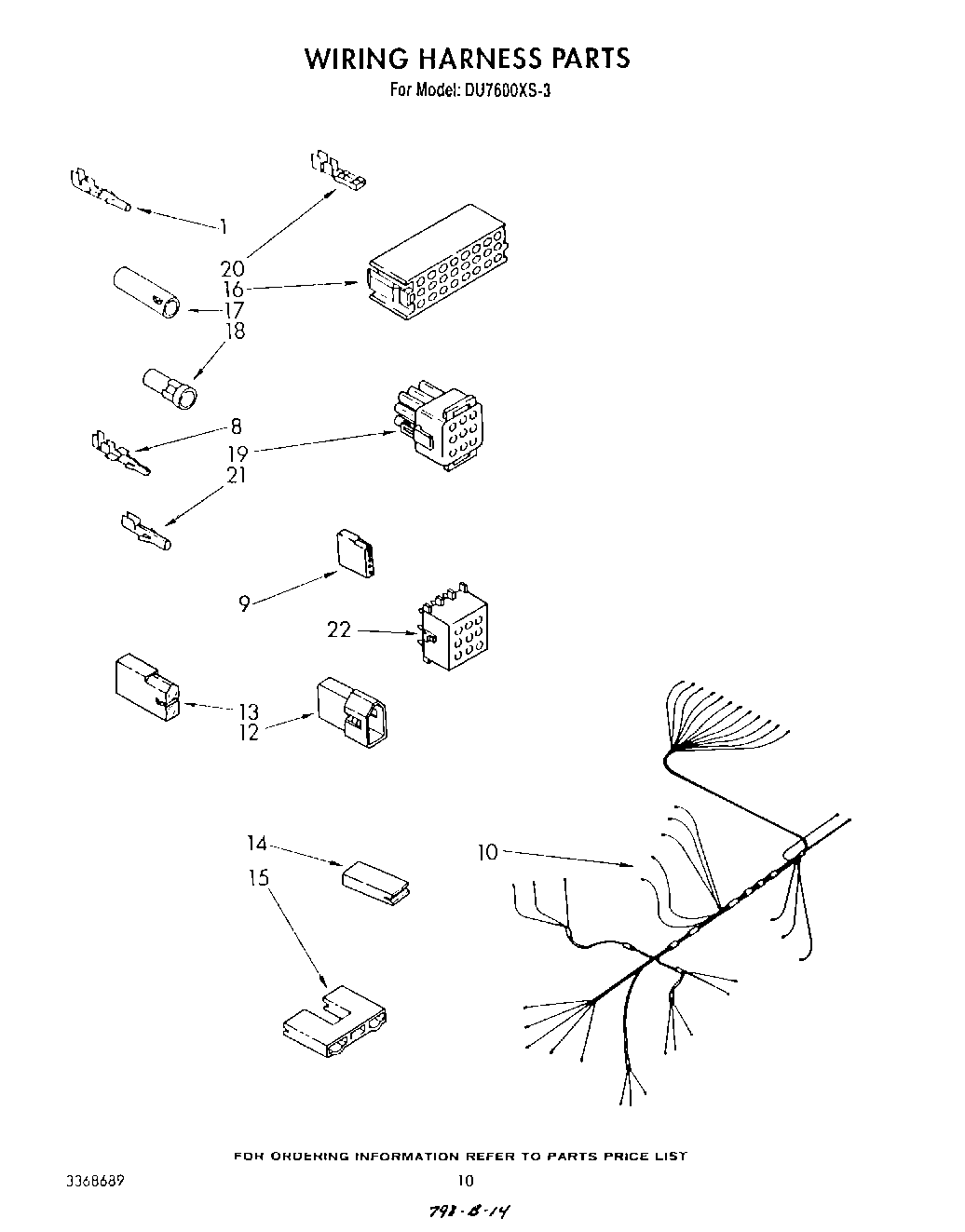

DU7600XS3 07 – WIRING HARNESS

Products

Position	Product
1	WP94614 Whirlpool Terminal
8	WP596797 Whirlpool Terminal
9	Receptacle (5-Circuit)
10	Harness, Wiring
12	WP717253 Whirlpool Dishwasher Connector
13	Receptacle, Latching (2-Way) (Uses Terminal 94614)
14	Connector Block
14	Insulator, Terminal
15	Connector Block (Alternate)
15	Terminal Insulator
16	Block, Disconnect
17	Receptacle
18	Plug
19	Housing, Plug
20	Terminal, Female
21	Terminal
22	Housing, Plug (9 Terminal)
