DU7600XS6 07 – WIRING HARNESS

DU7600XS6 07 – WIRING HARNESS

Written by

in

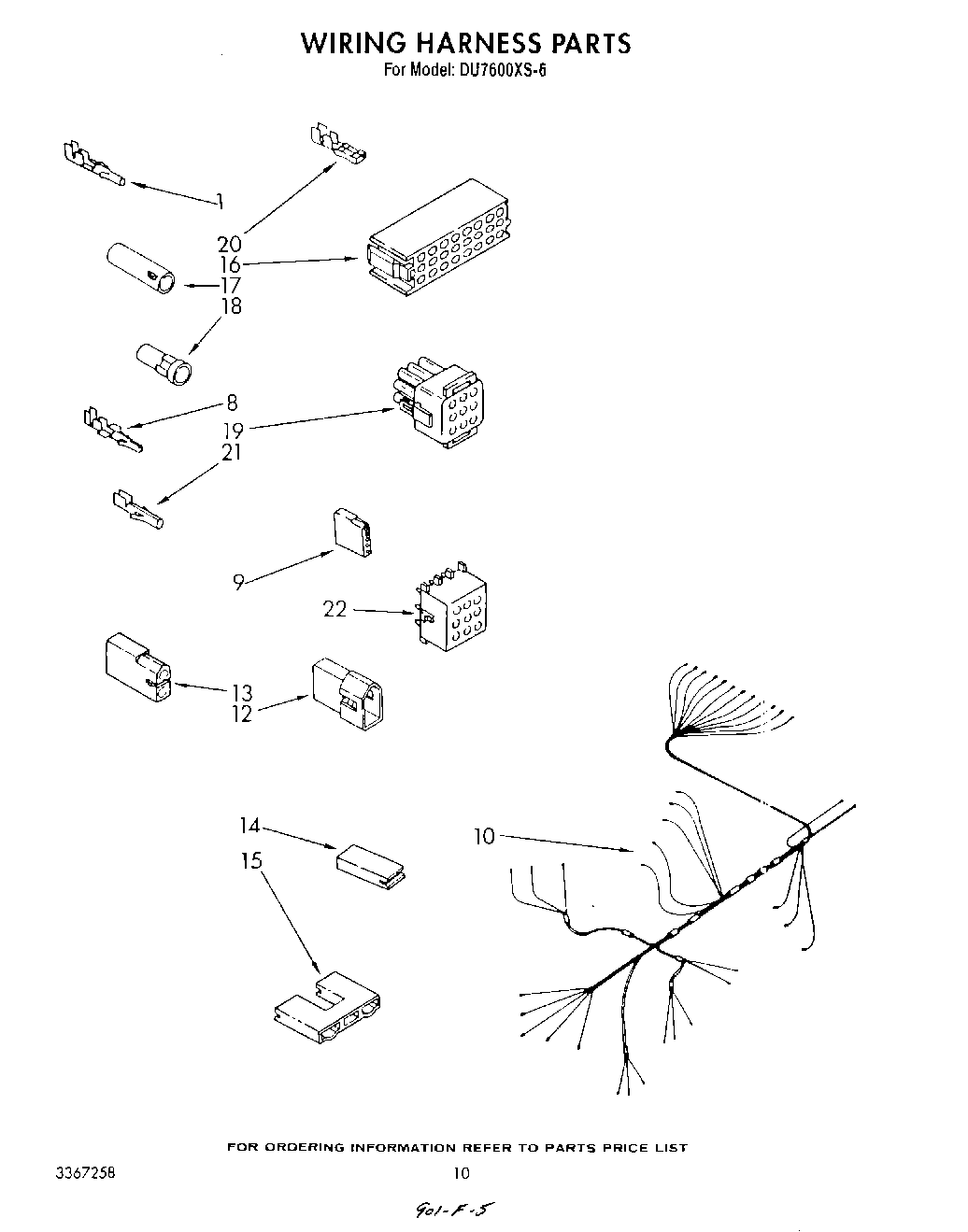

DU7600XS6 07 – WIRING HARNESS

Products

PositionProduct
1WP94614 Whirlpool Terminal
8WP596797 Whirlpool Terminal
9Receptacle (5-Circuit)
10Harness, Wiring
12WP717253 Whirlpool Dishwasher Connector
13Receptacle, Latching (2-Way) (Uses Terminal 94614)
14Insulator, Terminal
14Connector Block
15Terminal Insulator
15Connector Block (Alternate)
16Timer, Block Disconnect (Black) (Amp) (Use Term. 3369365)
17Receptacle
18Plug
19Housing, Plug
20Terminal, Female
21Terminal
22Housing, Plug (9 Terminal)
