DU7770XS0 02 – TUB, LIT/OPTIONAL

DU7770XS0 02 – TUB, LIT/OPTIONAL

Written by

in

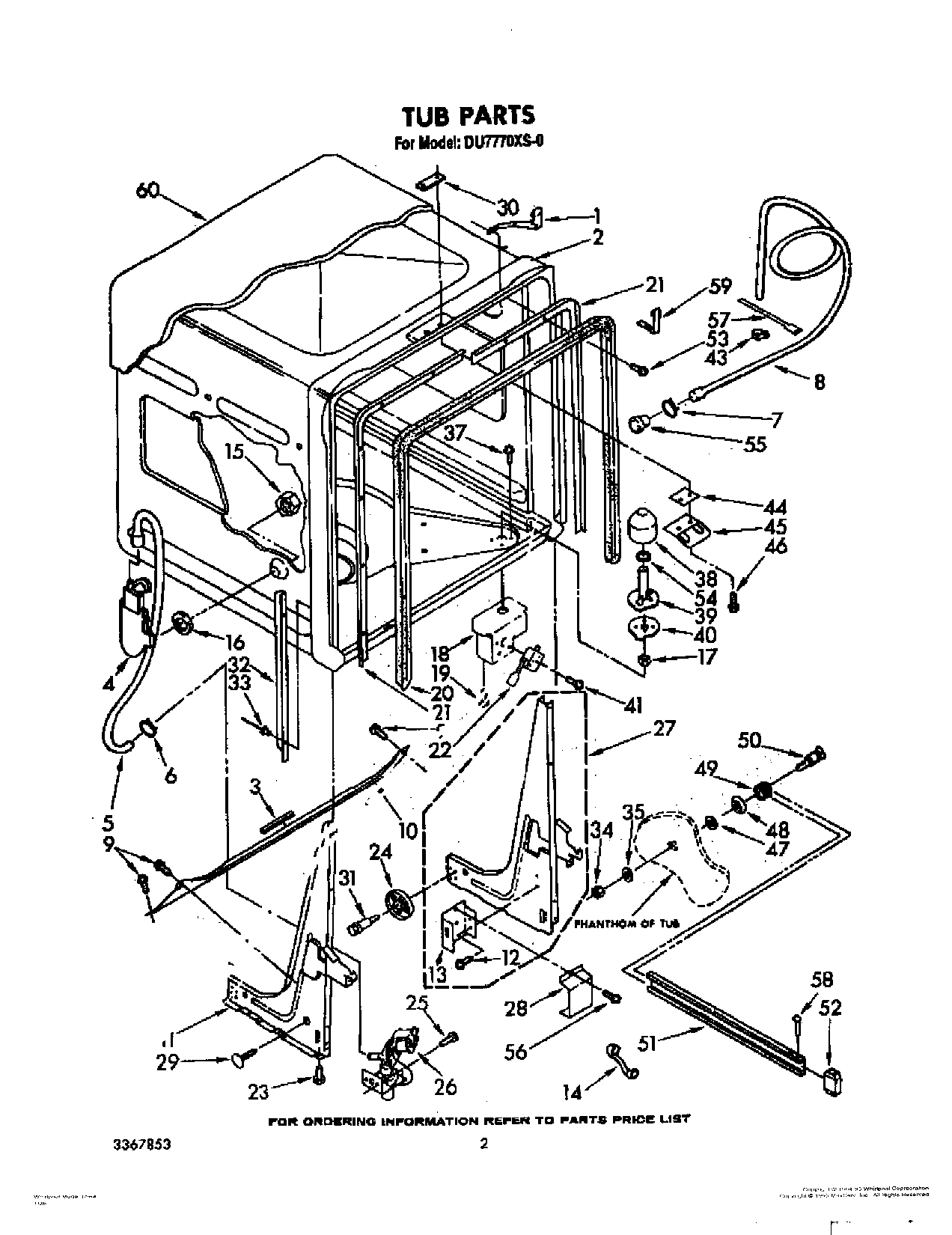

DU7770XS0 02 – TUB, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3367849
	WPL LIT3367853
	WPL LIT3367850
	WPL LIT3367228
	Instructions, Installation (Supplement) (Locating Your Water Supply)
1	Bracket, Mounting (2)
2	tub assembly
3	Edge Protector
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
9	WP302868 Whirlpool Screw
10	Brace
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Box, Terminal
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket
21	Retainer (L.H.)
21	Retainer (R.H.)
22	Switch, Pressure (Alternate)
22	Switch, Pressure (Alternate)
22	Retainer-Main Top (2 Required)
23	8193716 Whirlpool Leveling Leg
24	WP302819 Whirlpool Dishwasher Wheel
26	Valve, Water Inlet (Alternate)
26	Valve, Water Inlet (Alternate)
27	Leg & Hinge Assembly, R.H.
28	300068 Whirlpool Dishwasher Cover Assembly
29	WP304666 Whirlpool Dishwasher Retainer
30	Nut, Twin Spring
31	Screw, Shoulder
32	Retainer, Sound Shield
33	Rivet
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
43	WP3367052 Whirlpool Hose Clamp
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	End Cap, Track (4)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
56	WP90767 Whirlpool Screw
57	WPW10144763 Whirlpool Tie Wire
58	WPL 303298
59	Clip, Gasket (2)
60	350930 Whirlpool White Spray Paint
60	W11086533 Whirlpool Dishwasher Shield
60	Almond (Uncut)
60	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
60	Kit, Epoxy Patch (White)
60	WPL 72112
60	Leveler (Thinner)
60	WP72107 Whirlpool Touchup
60	799344 Whirlpool Refrigerator Paint
60	72017 Whirlpool Appliance Touch-Up Paint White
60	285006 Whirlpool Spray
60	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
60	350942 Whirlpool Spray Paint
60	Platinum (Uncut)
60	Enamal, Toast (1 Qt. Uncut)
60	Paint, Spray (13 Oz.) (Platinum)
60	W10840471 Whirlpool Dishwasher Touch Up
60	Toast
60	Golden Harvest (Uncut)
60	Golden Harvest
60	72113 Whirlpool Touch-Up Paint
60	350956 Whirlpool Spray Assembly
