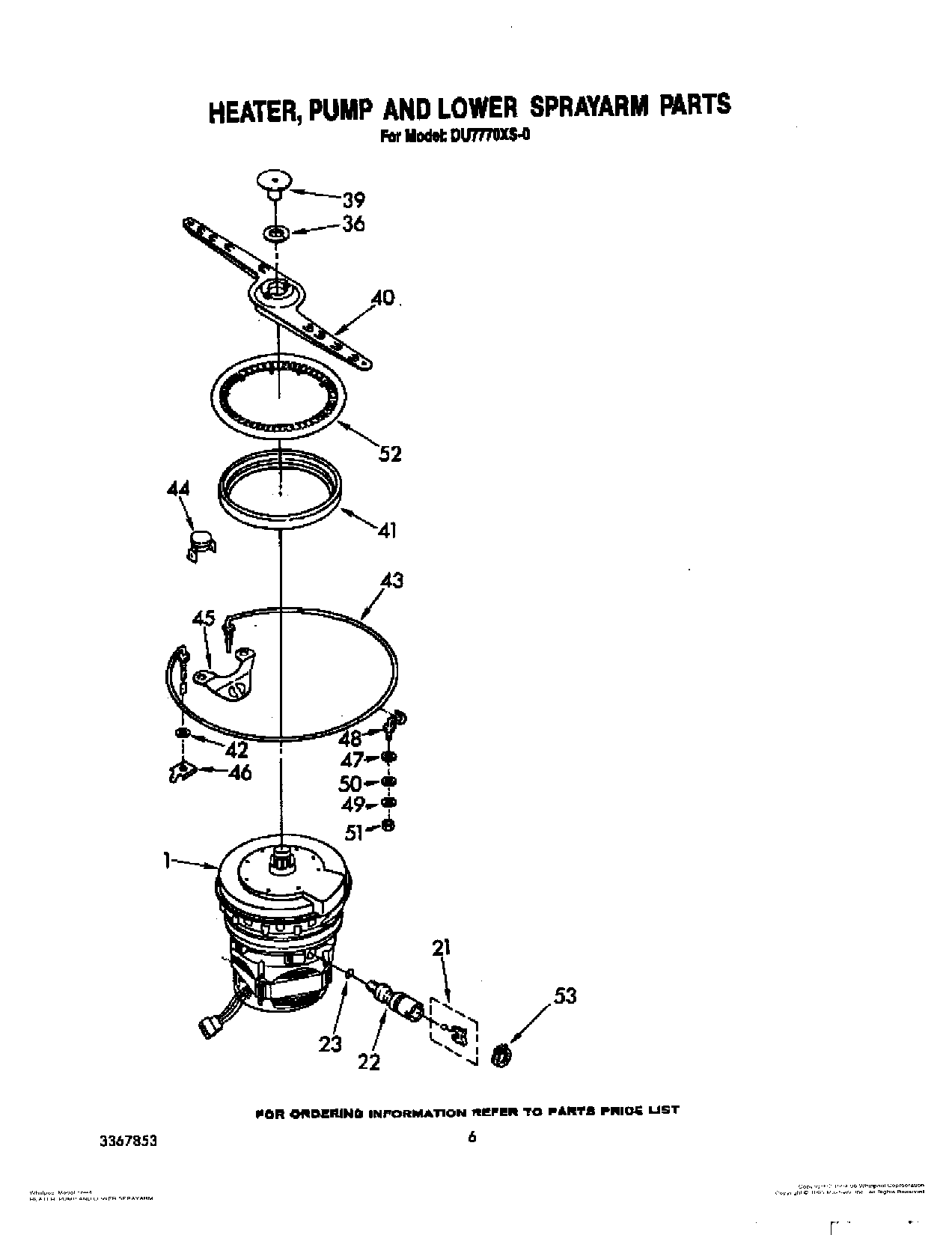

DU7770XS0 04 – HEATER, PUMP AND LOWER SPRAYARM

DU7770XS0 04 – HEATER, PUMP AND LOWER SPRAYARM

Written by

in

DU7770XS0 04 – HEATER, PUMP AND LOWER SPRAYARM

Products

PositionProduct
1Pump & Motor Assembly (Includes Illus. 41) Refer To Pump And Motor Parts Page.
21Check Ball & Retainer
22675238 Whirlpool Check Valve
23“O“ Ring
36WP719576 Whirlpool Dishwasher Bearing
39Cap, Nozzle
40Spray Arm, Lower
41717000 Whirlpool Dishwasher Gasket
42WP717273 Whirlpool Dishwasher Rubber Washer
43Heater (Alternate)
43Heater (Alternate)
43Heater (Alternate)
43Heater (Alternate)
44Thermostat (Alt.)
44Thermostat (Alt.)
45Bracket, Thermostat
46Nut, Heater Element
47Washer, Retainer (2)
48Support, Heater (2)
49Washer (2)
50Washer (2)
51Nut, Hex
52Grate
53WP3367052 Whirlpool Hose Clamp
