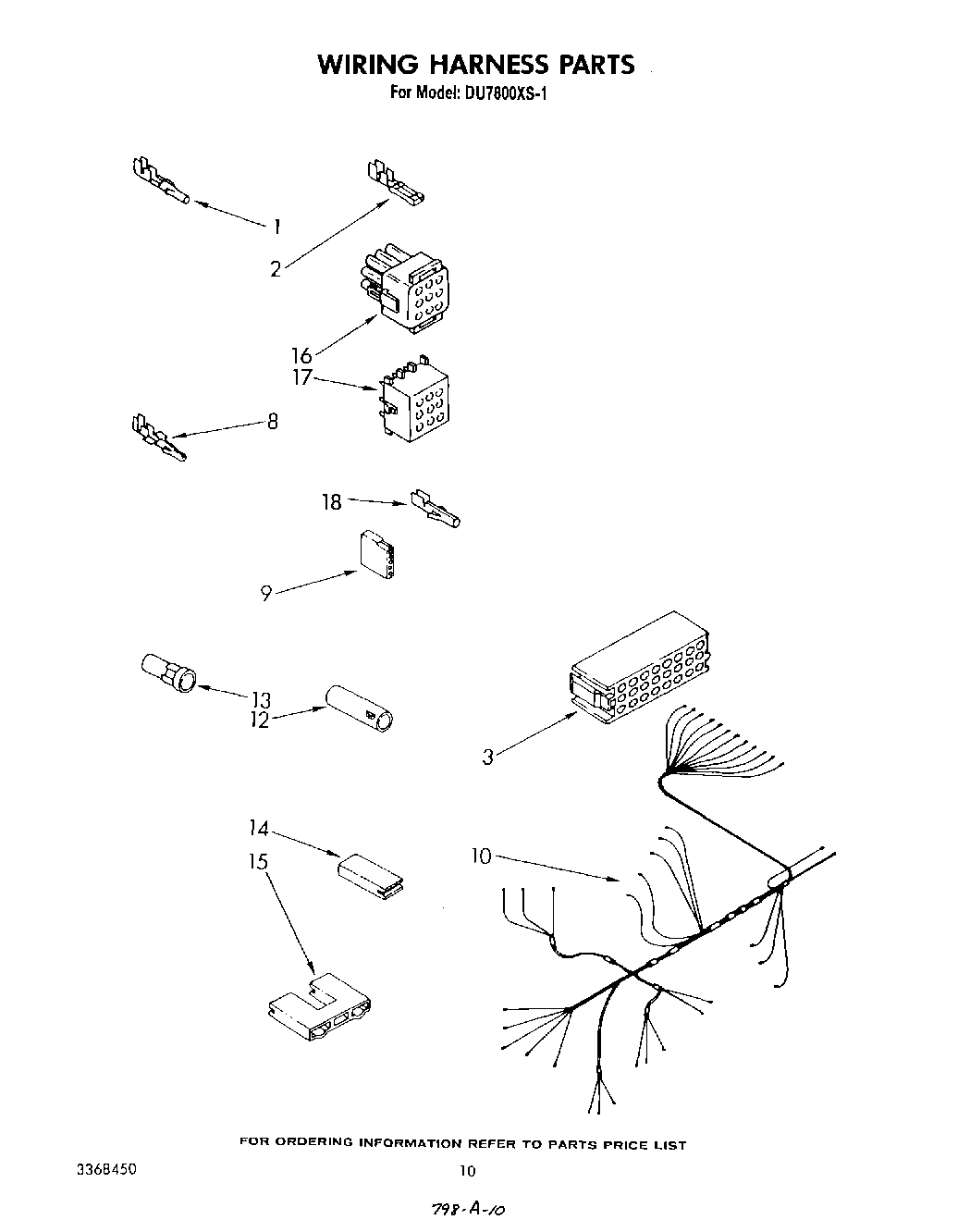

DU7800XS1 07 – WIRING HARNESS

Products

Position	Product
1	WP94614 Whirlpool Terminal
2	Terminal, Female
3	Block, Disconnect
8	WP596797 Whirlpool Terminal
9	Receptacle (5-Circuit)
10	Harness, Wiring
12	Receptacle
13	Plug
14	Insulator, Terminal
14	Connector Block
15	Terminal Insulator
15	Connector Block (Alternate)
16	Housing, Plug
17	Housing, Plug (9 Terminal)
18	Terminal
