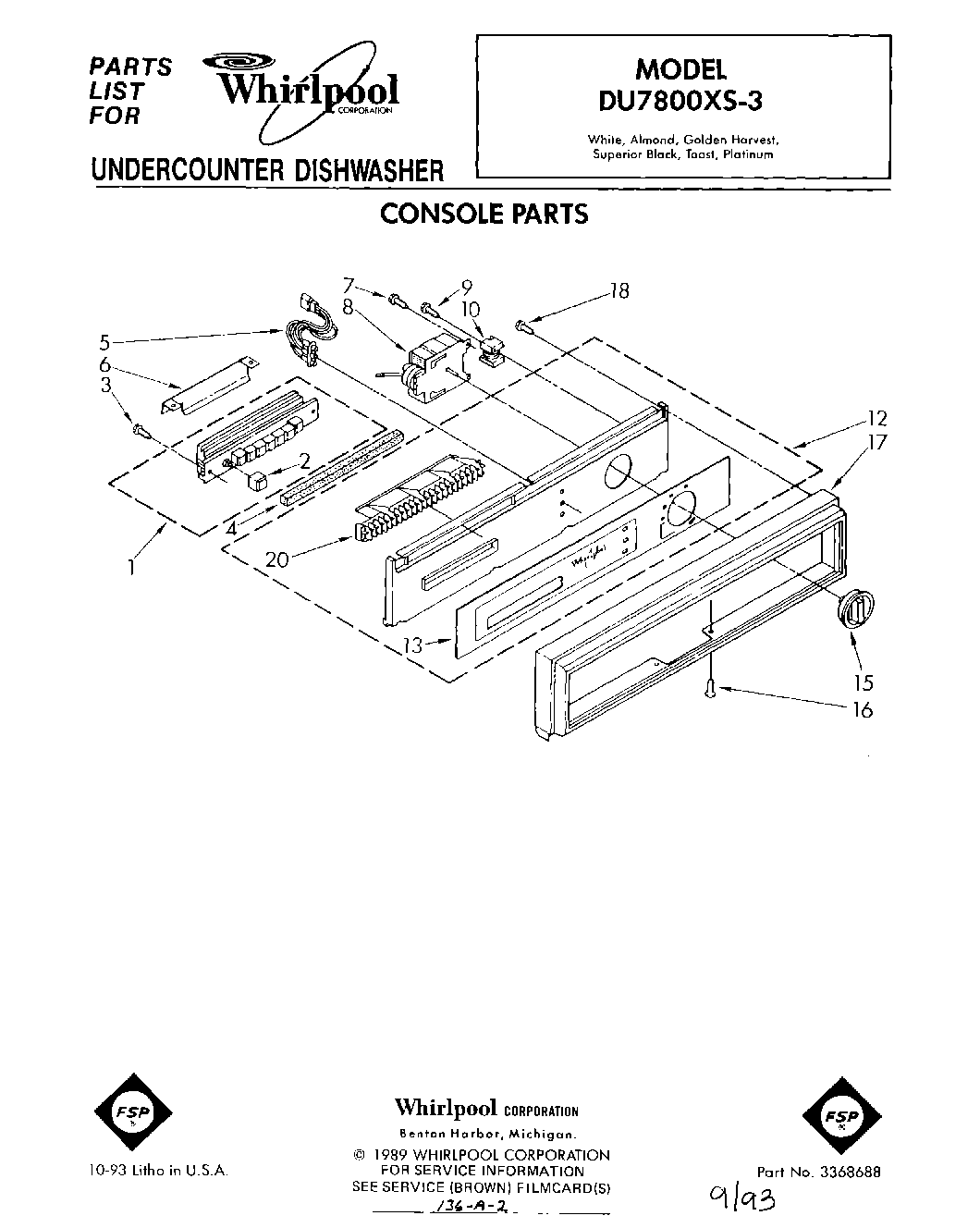

DU7800XS3 01 – CONSOLE

Products

Position	Product
1	Switch, Pushbutton
2	Button (6)
4	Foam, Seal
5	Light, Indicator (For Electrical Connector Only, See Wiring Harness Page.)
6	Shield, Sound
7	WP304231 Whirlpool Dishwasher Screw
8	Timer (For Electrical Connector Only, See Wiring Harness Page.)
9	Screw, 7-18 x 1-3/8 Slot Hex Wash Hd
10	Relay, Start
12	Console
13	Insert, Decorative
15	Knob, Timer
16	302251 Whirlpool Dishwasher Screw
17	Bezel, Console
18	Screw, 6-19 x3/8 Torx Pan Hd (4)
20	Grill, Vent
