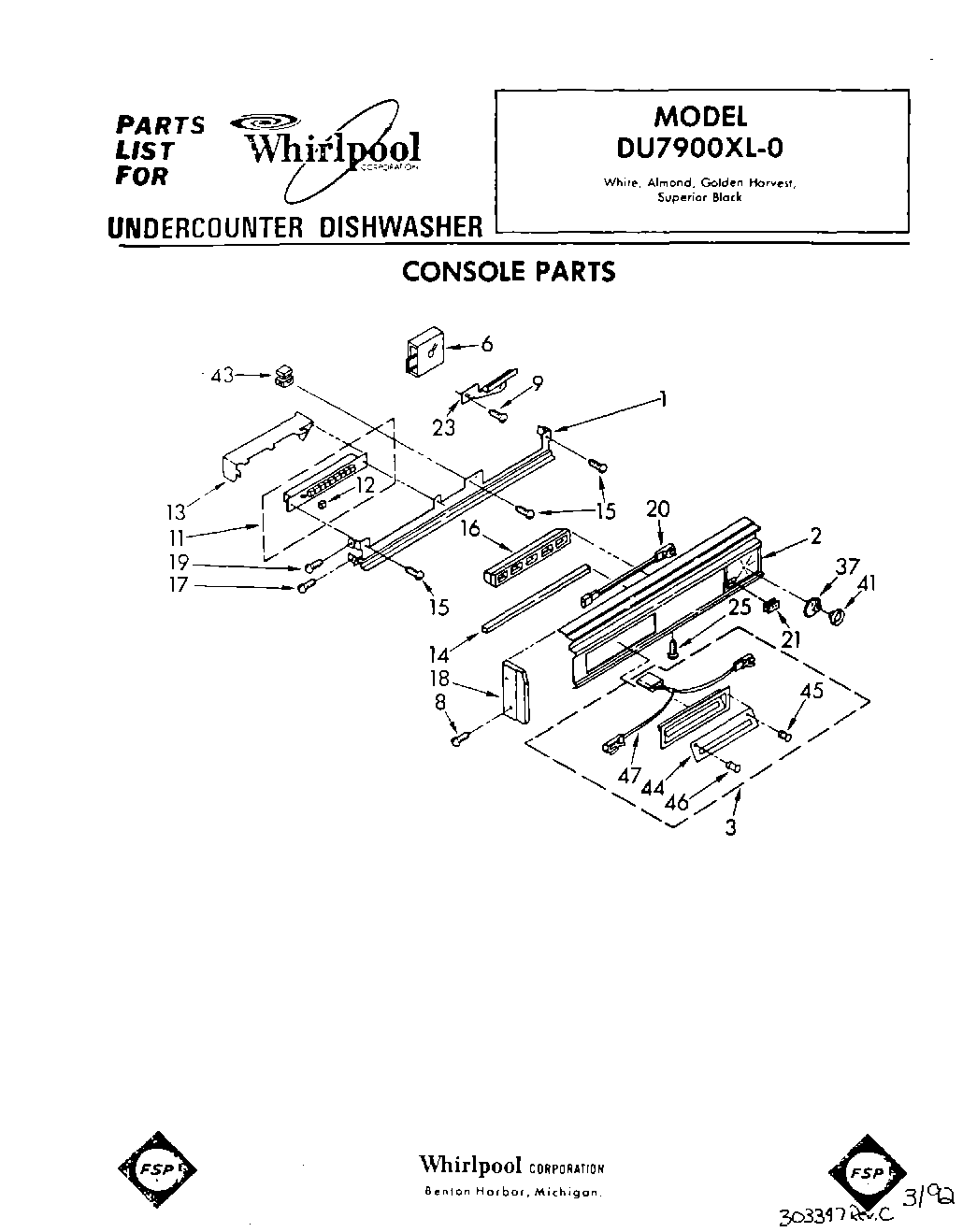

DU7900XL0 01 – CONSOLE

DU7900XL0 01 – CONSOLE

Written by

in

DU7900XL0 01 – CONSOLE

Products

PositionProduct
1Bracket, Console
2Panel, Escutcheon
3Bezel Assembly, Pushbutton
6Timer, Disconnect
8W10759522 Whirlpool Screw
9WP356418 Whirlpool Screw
11Switch, Pushbutton
12Button (9)
13Barrier
14Baffle
15WP489128 Whirlpool Refrigerator Screw
16Grille, Vent
17Screw, 8-18 x 5/8
18Clock w/Hr. Timer
18Cap, End (L.H.)
19WP302868 Whirlpool Screw
20Indicator Light & Connector
21Lens, Amber
23Bracket, Timer Mounting
25WP487353 Whirlpool Refrigerator Screw
37Dial, Indicator
41Knob, Timer
43Relay, Start (Alternate)
43Relay, Start (Alternate)
43Relay, Start (Alternate)
44Escutcheon, Pushbutton Switch
45Lens, Red
46Lens, Green
47Right
