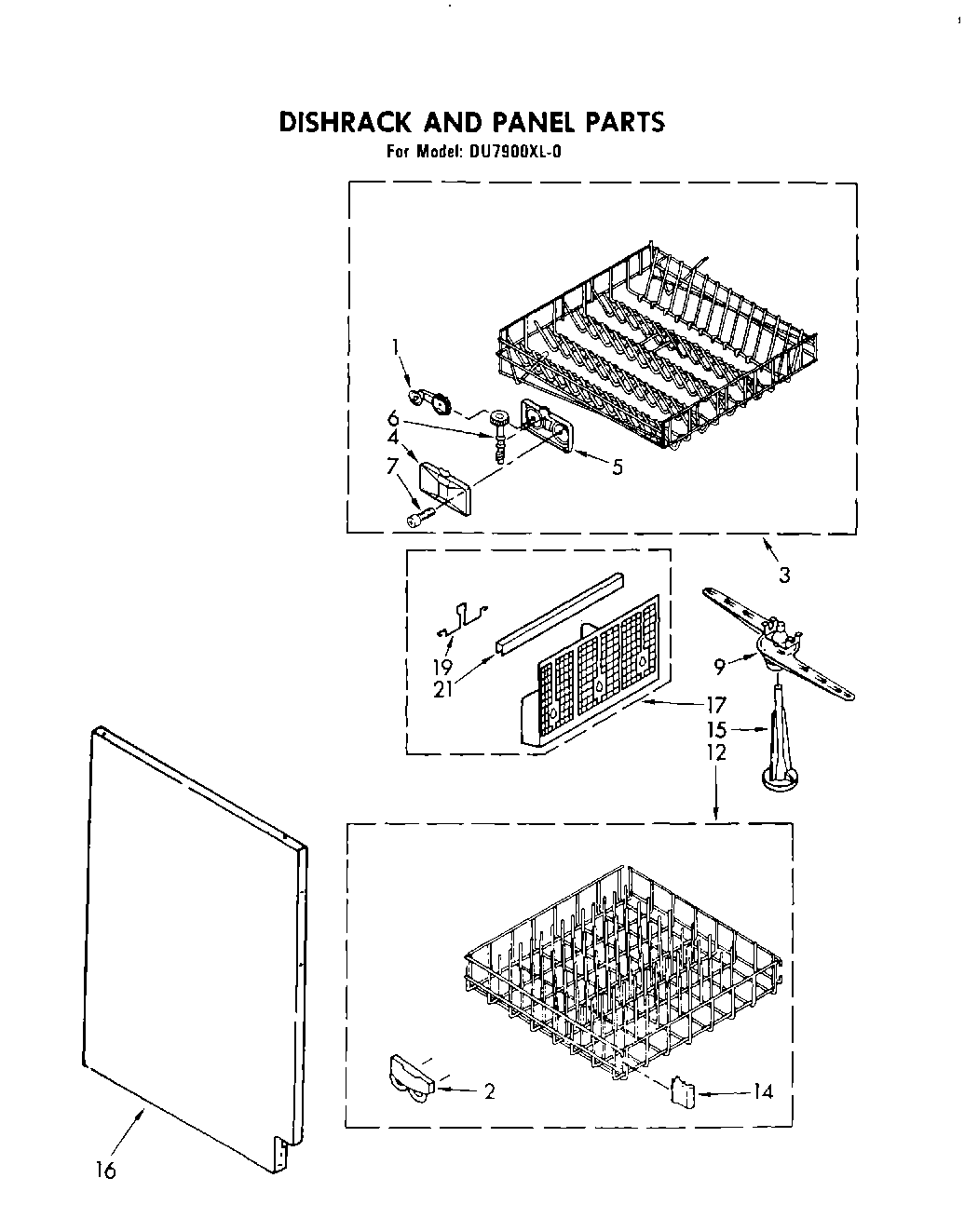

DU7900XL0 06 – DISHRACK AND PANEL

DU7900XL0 06 – DISHRACK AND PANEL

Written by

in

DU7900XL0 06 – DISHRACK AND PANEL

Products

PositionProduct
xxPanel, L.S.
1Wheel & Gear Assembly (4)
24317933 Whirlpool Lower Rack Wheels
3W11169039 Whirlpool Dishwasher Dish Rack
4Cover, Housing (2)
5Housing, Gear (2)
6Worm, Dishrack (2)
7WP9741232 Whirlpool Dishwasher Screw
9WP304204 Whirlpool Dishwasher Spray Arm
12W10311986 Whirlpool Dishwasher Lower Rack
14Bumper (2)
15Tower
16xPanel, Reversible Side
17Silverware Basket Assembly
19Handle, Basket
21Trim, Basket
