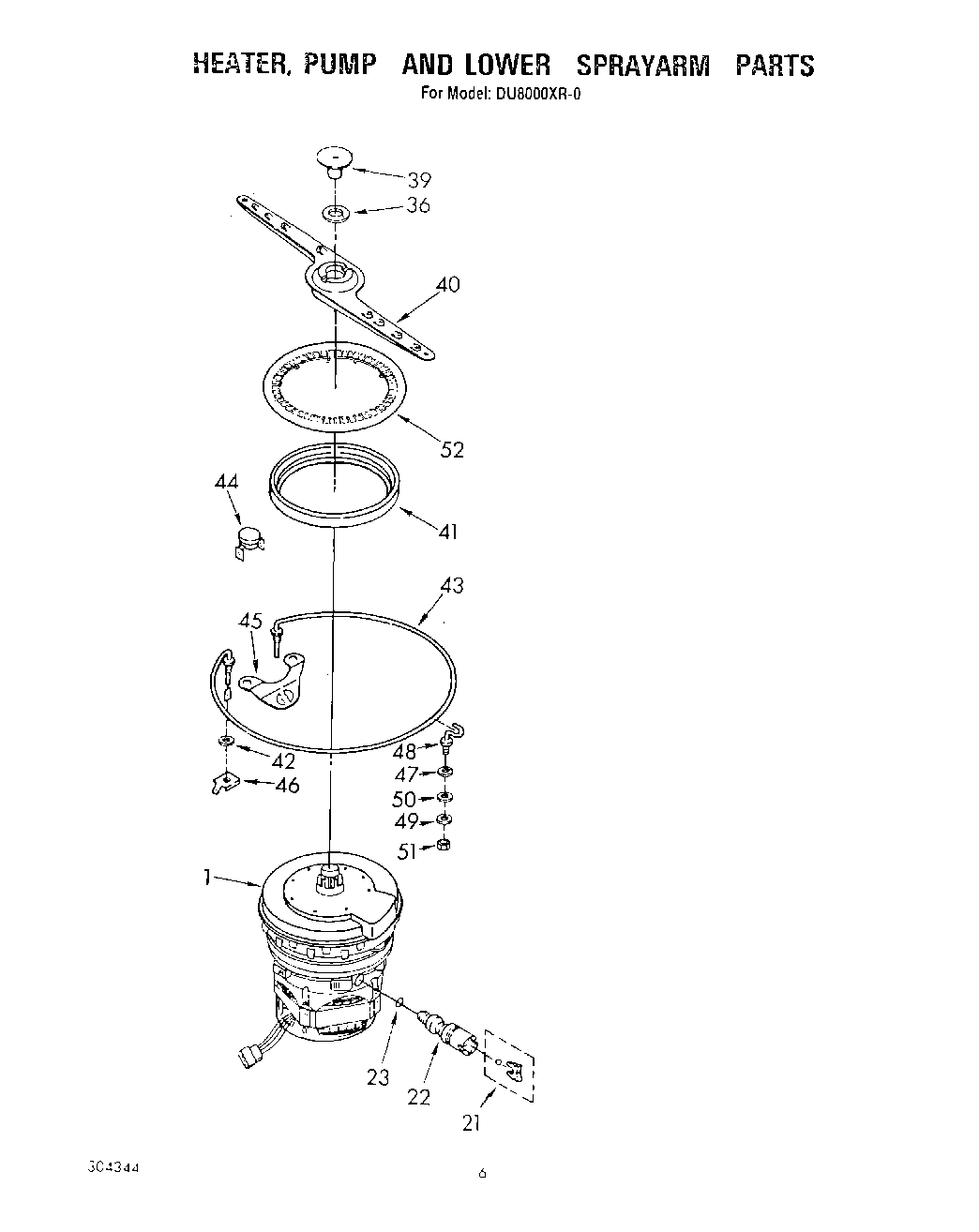

DU8000XR0 04 – HEATER, PUMP, AND LOWER SPRAYARM

DU8000XR0 04 – HEATER, PUMP, AND LOWER SPRAYARM

Written by

in

DU8000XR0 04 – HEATER, PUMP, AND LOWER SPRAYARM

Products

PositionProduct
1Check Ball & Retainer
1Pump & Motor Assembly (Includes Illus. 41)
22675238 Whirlpool Check Valve
23“O“ Ring
36WP719576 Whirlpool Dishwasher Bearing
39Cap, Nozzle
40Spray Arm, Lower
41717000 Whirlpool Dishwasher Gasket
42WP717273 Whirlpool Dishwasher Rubber Washer
43Heater (Alternate)
43Heater (Alternate)
43Heater (Alternate)
43Heater (Alternate)
44Thermostat (Alt.)
44Thermostat (Alt.)
45Bracket, Thermostat
46Nut, Heater Element
47Washer, Retainer (2)
48Support, Heater (2)
49Washer (2)
50Washer (2)
51Nut, Hex
52Grate
