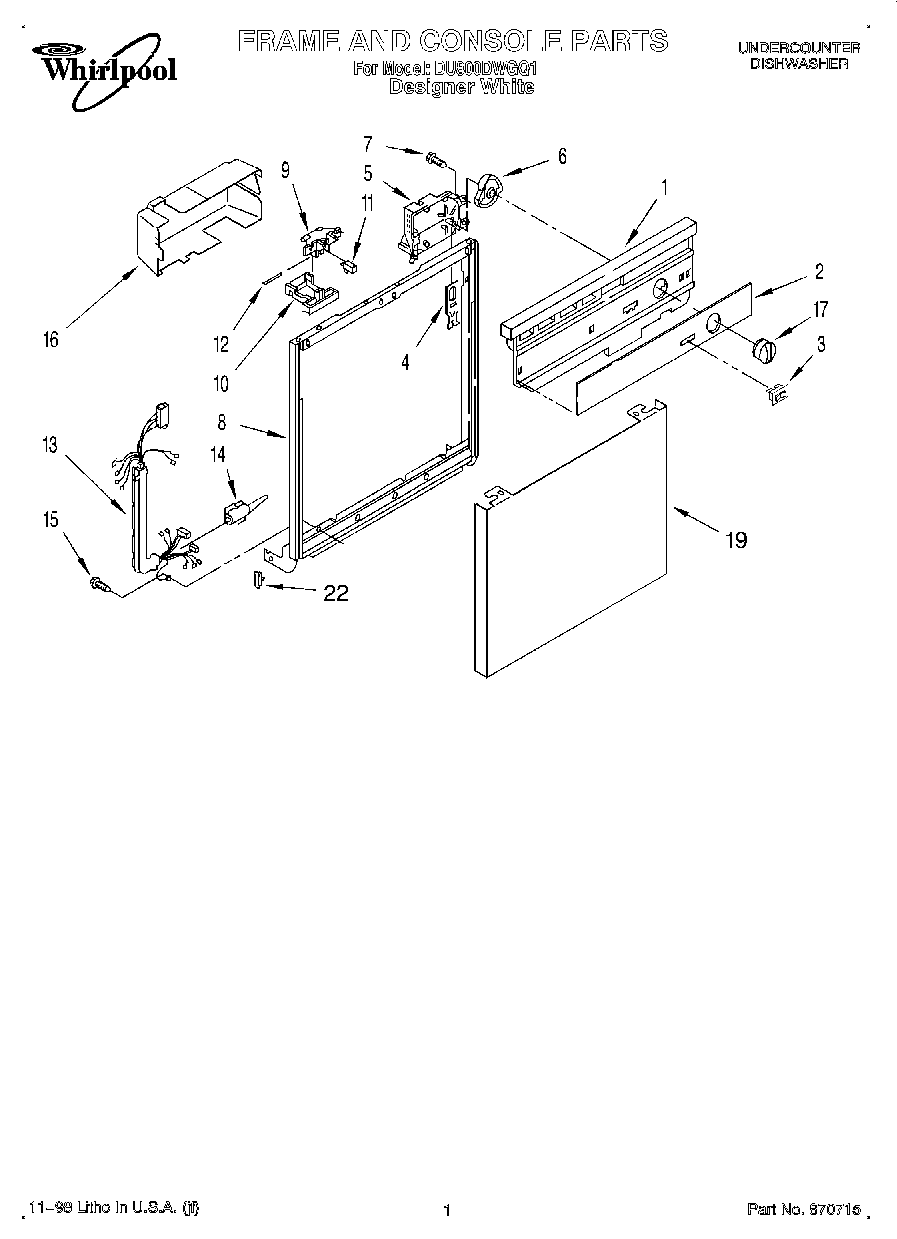

DU800DWGQ1 01 – FRAME AND CONSOLEadmin2025-04-26T11:05:29+00:00DU800DWGQ1 01 – FRAME AND CONSOLE ProductsPositionProduct1Console (Includes Item 2)2Insert, Console38051730 Whirlpool Dishwasher Switch4WP3369529 Whirlpool Dishwasher Follower5Timer6WP8271510 Whirlpool Dishwasher Cam7WP304231 Whirlpool Dishwasher Screw8WP9743028 Whirlpool Dishwasher Frame9WP3380854 Whirlpool Door Latch Bolt10Lever, Latch White11Shield, Switch12Pin, Switch (2)13Harness and Protector143376405 Whirlpool Dishwasher Elbow15WP488234 Whirlpool Air Conditioner Screw16Cover, Timer173375348 Whirlpool Dishwasher Timer Knob19Panel Front (White Model)22WP3373234 Whirlpool Dishwasher Bearing
