DU8016XX6 01 – FRAME AND CONSOLE

DU8016XX6 01 – FRAME AND CONSOLE

Written by

in

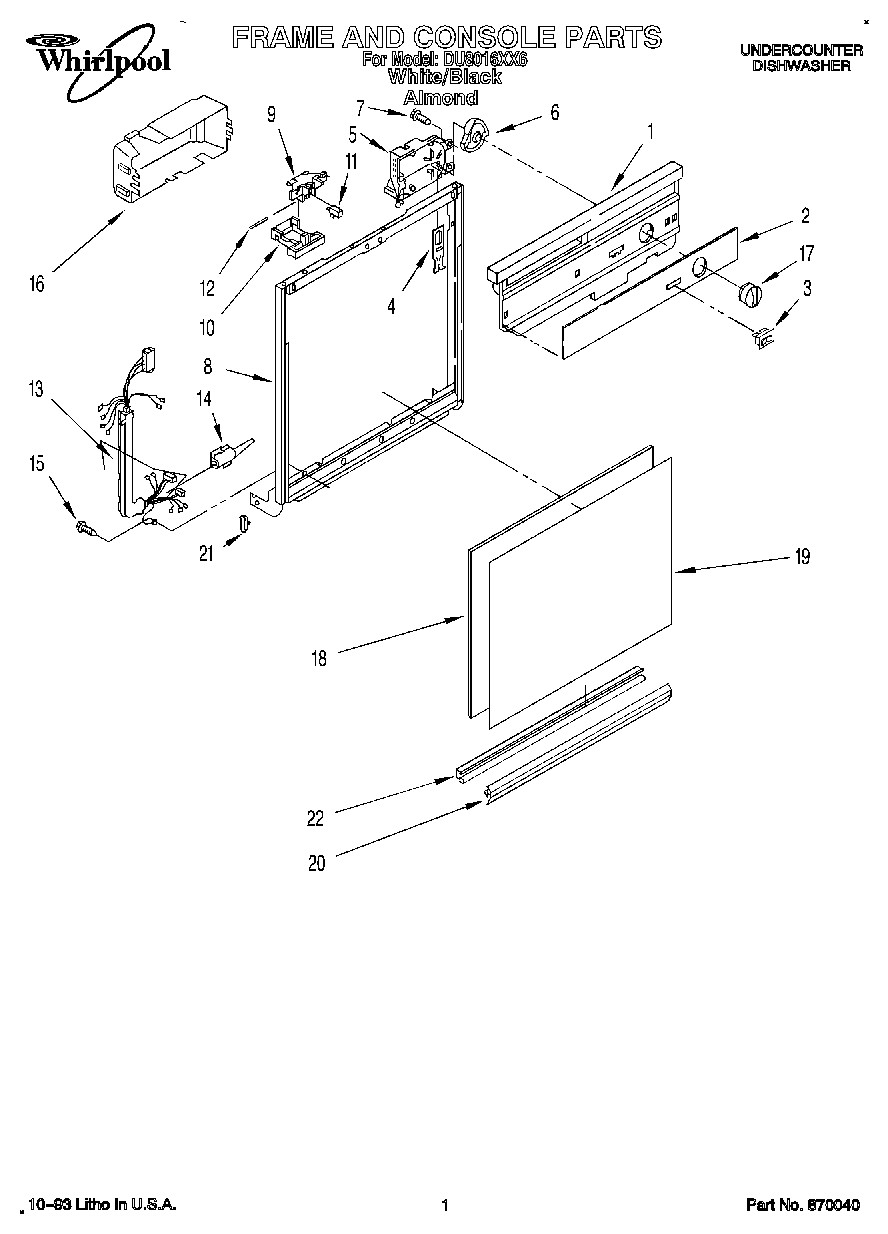

DU8016XX6 01 – FRAME AND CONSOLE

Products

PositionProduct
1Console (Also Order Key 2) (Black)
2Insert, Console
3WP4314961 Whirlpool Lite Switch
4Follower, Cam
5Timer
6Cam
7WP304231 Whirlpool Dishwasher Screw
83374711 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10WP3368954 Whirlpool Dishwasher Lever
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector (Includes Item 14)
143376405 Whirlpool Dishwasher Elbow
15WP488234 Whirlpool Air Conditioner Screw
16Cover, Timer
17Knob, Timer
18Spacer, Corrugated
19WP3369769 Whirlpool Dishwasher Panel
19Front Panel
20Retainer, Panel
21WP3373234 Whirlpool Dishwasher Bearing
22Channel, Retainer (Also Order Item No.20)
