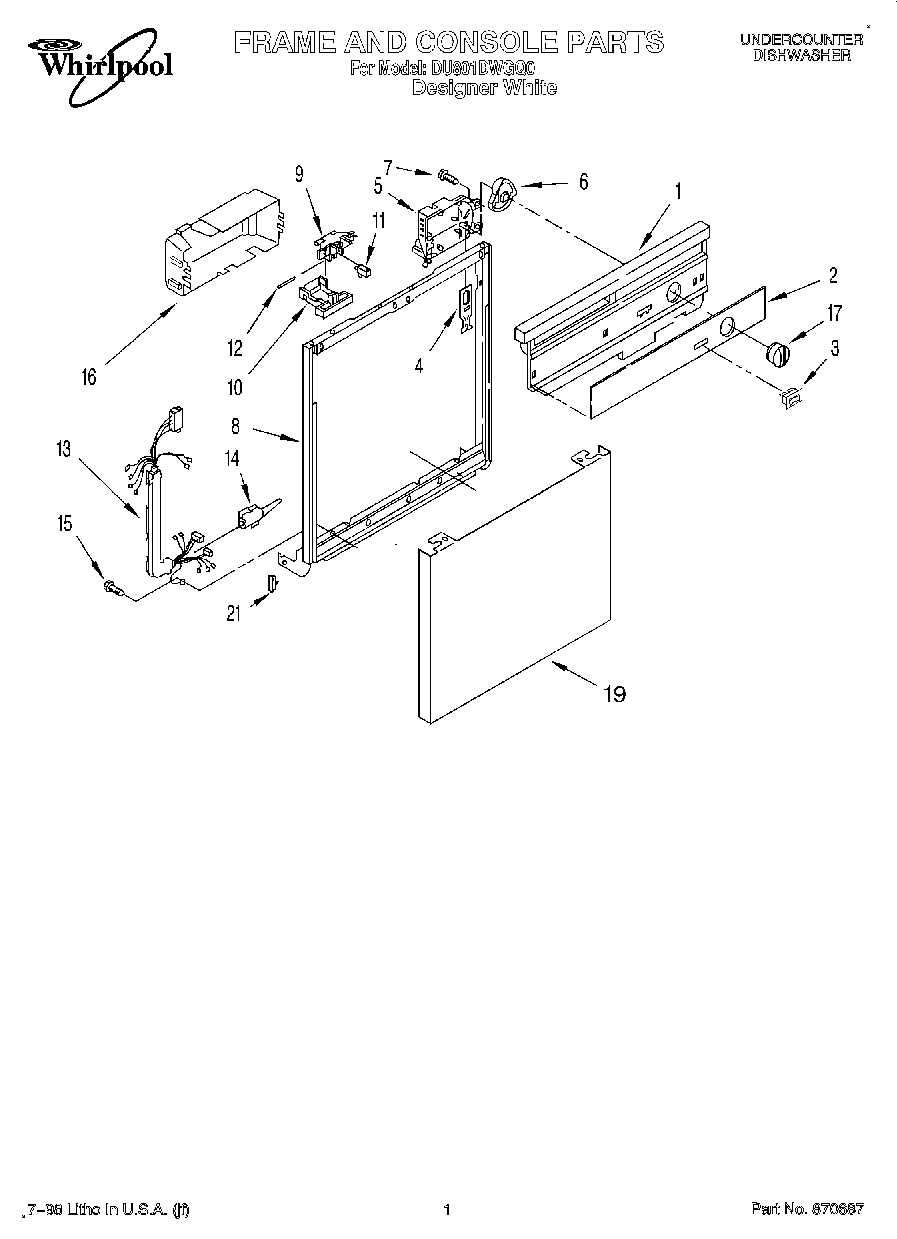

DU801DWGQ0 01 – FRAME AND CONSOLE

Products

PositionProduct
1Console (Includes Item 2)
2Insert, Console
38051730 Whirlpool Dishwasher Switch
4WP3369529 Whirlpool Dishwasher Follower
5Timer
6WP8271510 Whirlpool Dishwasher Cam
7WP304231 Whirlpool Dishwasher Screw
8WP9743028 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch White
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP488234 Whirlpool Air Conditioner Screw
16Cover, Timer
173375348 Whirlpool Dishwasher Timer Knob
19Panel Front (White Model)
21WP3373234 Whirlpool Dishwasher Bearing
