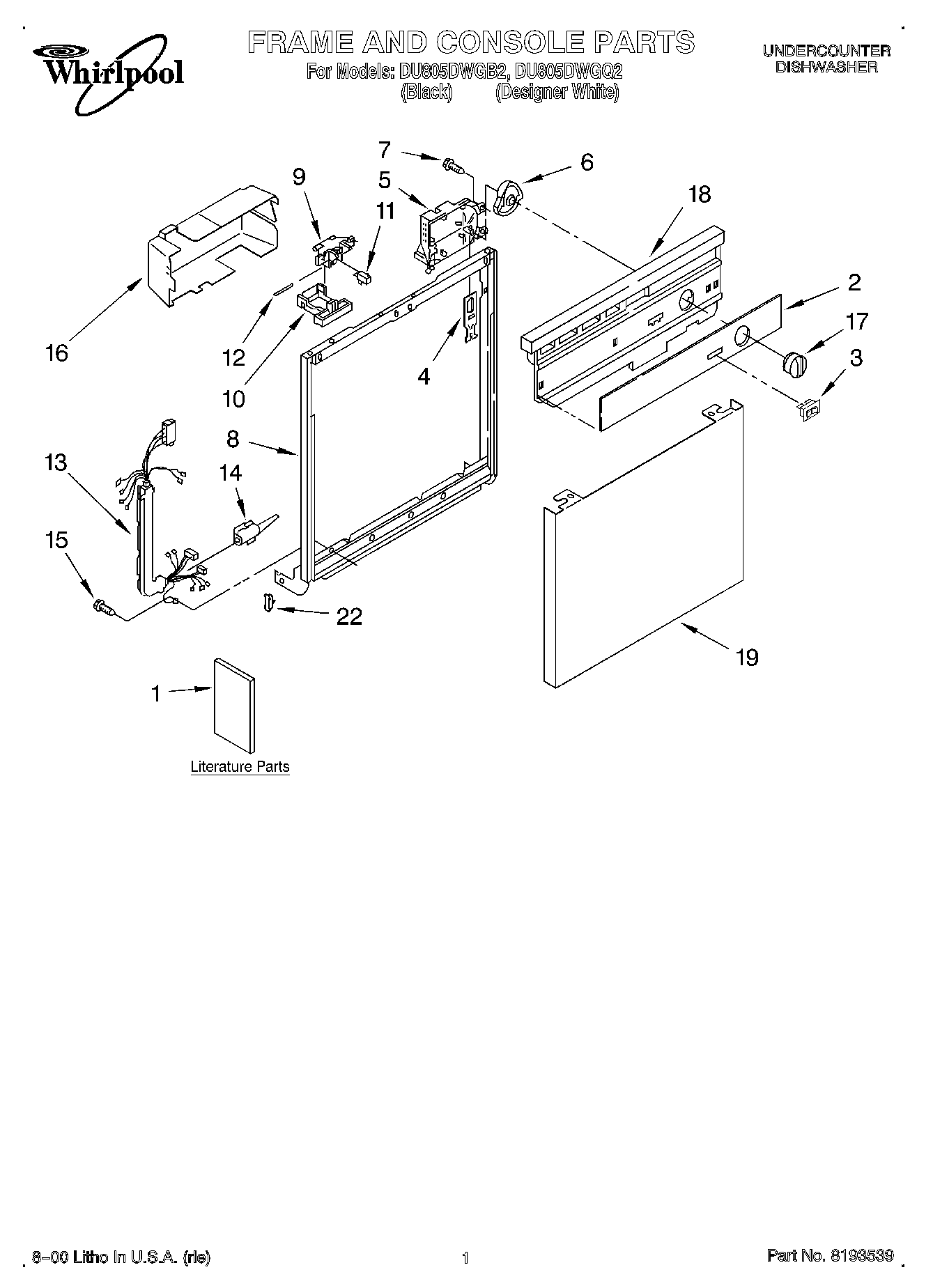

DU805DWGB2 01 – FRAME AND CONSOLE, LITERATUREadmin2025-04-26T11:07:15+00:00DU805DWGB2 01 – FRAME AND CONSOLE, LITERATURE
Products
| Position | Product |
|---|
| 1 | Literature Parts (Guide, Energy) |
| 1 | Do-It Yourself Manual |
| 1 | Literature Parts (Instructions, Installation) |
| 1 | Instructions, Installation (Supplement) (Locating Your Water Supply) |
| 1 | Guide, Use & Care |
| 1 | Wiring Diagram |
| 2 | Insert, Console |
| 2 | Insert, Console |
| 3 | 8051729 Whirlpool Dishwasher Switch |
| 3 | 8051730 Whirlpool Dishwasher Switch |
| 4 | WP3369529 Whirlpool Dishwasher Follower |
| 5 | Timer |
| 6 | WP8271510 Whirlpool Dishwasher Cam |
| 7 | WP304231 Whirlpool Dishwasher Screw |
| 8 | WP9743028 Whirlpool Dishwasher Frame |
| 9 | WP3380854 Whirlpool Door Latch Bolt |
| 10 | Lever, Latch White |
| 10 | Lever, Latch |
| 11 | Shield, Switch |
| 12 | Pin, Switch (2) |
| 13 | Harness and Protector |
| 14 | 3376405 Whirlpool Dishwasher Elbow |
| 15 | WP3400892 Whirlpool Dishwasher Screw |
| 16 | Cover, Timer |
| 17 | 3375348 Whirlpool Dishwasher Timer Knob |
| 18 | Console (Includes Item 2) |
| 18 | Console (Includes Item 2) |
| 19 | Panel Front (Black Model) |
| 19 | Panel Front (White Model) |
| 22 | WP3373234 Whirlpool Dishwasher Bearing |
