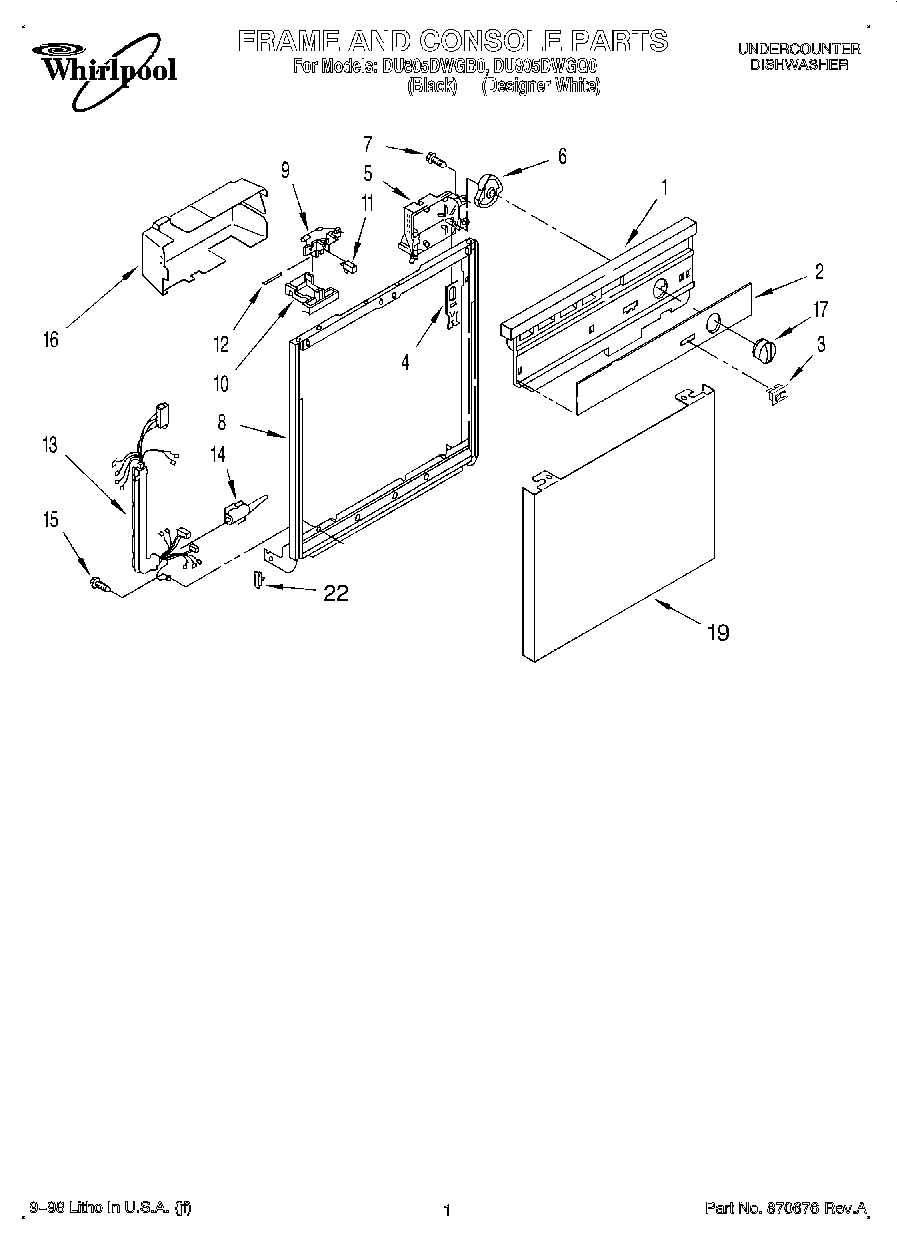

DU805DWGQ0 01 – FRAME AND CONSOLE

Products

Position	Product
1	Console (Includes Item 2)
1	Console (Includes Item 2)
2	Insert, Console
2	Insert, Console
3	8051730 Whirlpool Dishwasher Switch
3	8051729 Whirlpool Dishwasher Switch
4	WP3369529 Whirlpool Dishwasher Follower
5	Timer
6	WP8271510 Whirlpool Dishwasher Cam
7	WP304231 Whirlpool Dishwasher Screw
8	WP9743028 Whirlpool Dishwasher Frame
9	WP3380854 Whirlpool Door Latch Bolt
10	Lever, Latch White
10	Lever, Latch
11	Shield, Switch
12	Pin, Switch (2)
13	Harness and Protector
14	3376405 Whirlpool Dishwasher Elbow
15	WP488234 Whirlpool Air Conditioner Screw
16	Cover, Timer
17	3375348 Whirlpool Dishwasher Timer Knob
19	Panel Front (Black Model)
19	Panel Front (White Model)
22	WP3373234 Whirlpool Dishwasher Bearing
