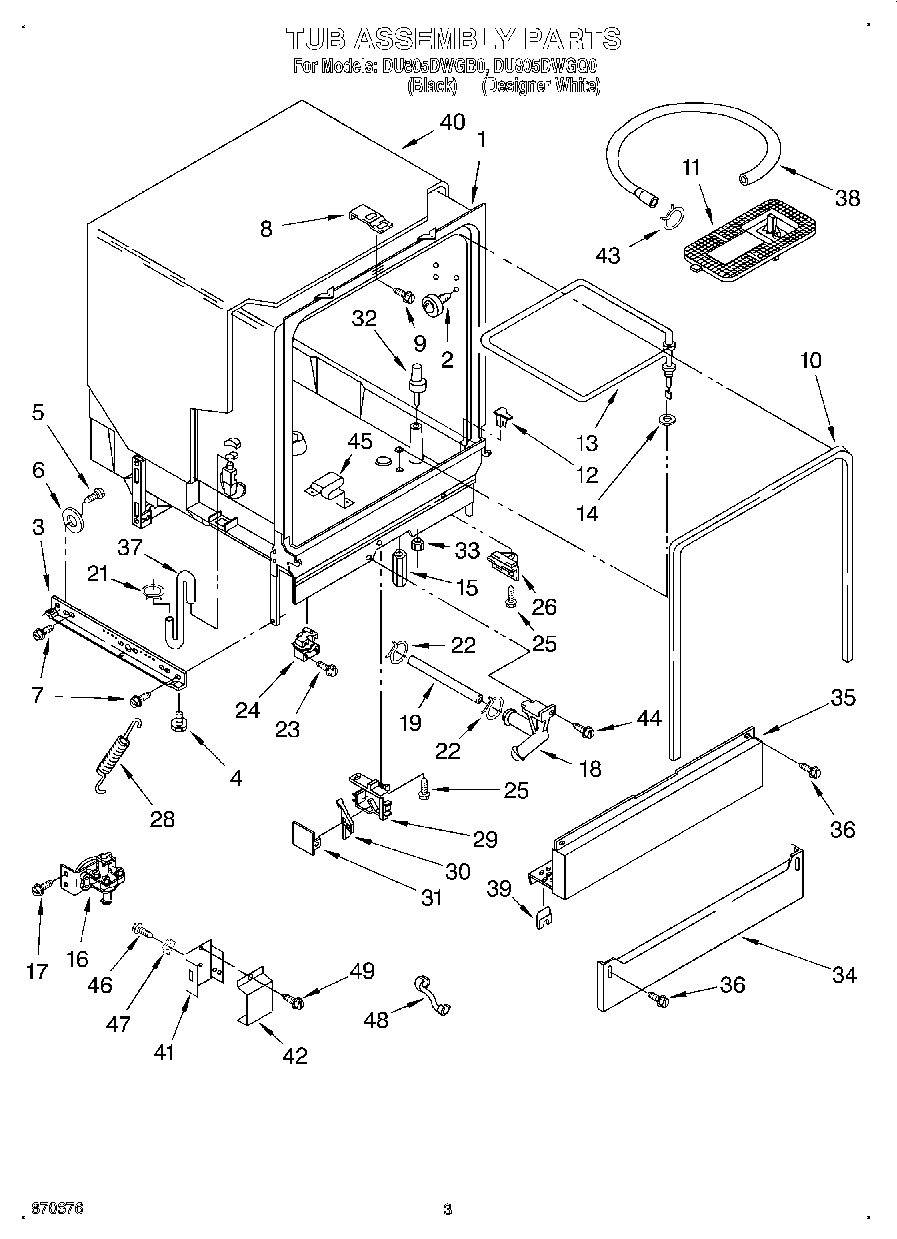

DU805DWGQ0 03 – TUB ASSEMBLY

DU805DWGQ0 03 – TUB ASSEMBLY

Written by

in

DU805DWGQ0 03 – TUB ASSEMBLY

Products

PositionProduct
1Tub Assembly
2Tub, Wheel Assembly (8)
3Runner (2)
48193716 Whirlpool Leveling Leg
5Screw (2)
6WP302819 Whirlpool Dishwasher Wheel
7SCREW
8Plate, Latch
9WP3374720 Whirlpool Dishwasher Screw
10WPW10509257 Whirlpool Door Gasket
11WP3369322 Whirlpool Cover Assembly
12DEFLECTOR-DISHWASHER
13WPW10082894 Whirlpool Dishwasher Heater
14WP717273 Whirlpool Dishwasher Rubber Washer
15Nut (2) (Heater Terminal)
16W10844024 Whirlpool Water Inlet Valve
17WP489069 Whirlpool Compactor Screw
18Check, Valve Assembly
19Hose, Coupler
21WP596669 Whirlpool Hose Clamp
22CLAMP, HOSE
23WP489128 Whirlpool Refrigerator Screw
24W10102260 Whirlpool Dishwasher Motor Relay
25WP304231 Whirlpool Dishwasher Screw
26WP3368928 Whirlpool Dishwasher Fuse
28WP3379383 Whirlpool Dishwasher Spring
29Housing, Float Switch
30Switch, Float
31Cover, Switch Housing
32WP8519552 Whirlpool Dishwasher Float
33Nut
34WP3379921 Whirlpool Dishwasher Toe Panel
34WP3379920 Whirlpool Dishwasher Toe Panel
35Access Panel & Clip Assembly (Includes Items 11 & 12) (White Model)
35Access Panel & Clip Assembly (Includes Items 11 & 12) (Black Model)
36WP302868 Whirlpool Screw
37Hose, Inlet
38WP3374077 Whirlpool Dishwasher Drain Hose
39Clip, Grounding
40W11086533 Whirlpool Dishwasher Shield
41Terminal Box
42300068 Whirlpool Dishwasher Cover Assembly
43WP356138 Whirlpool Hose Clamp
44W11693756 Whirlpool Screw Assembly
453379740 Whirlpool Dishwasher Heater Support
46WP3400014 Whirlpool Dishwasher Screw
47WP3378128 Whirlpool Dishwasher Washer
48Relief, Strain
49Screw
