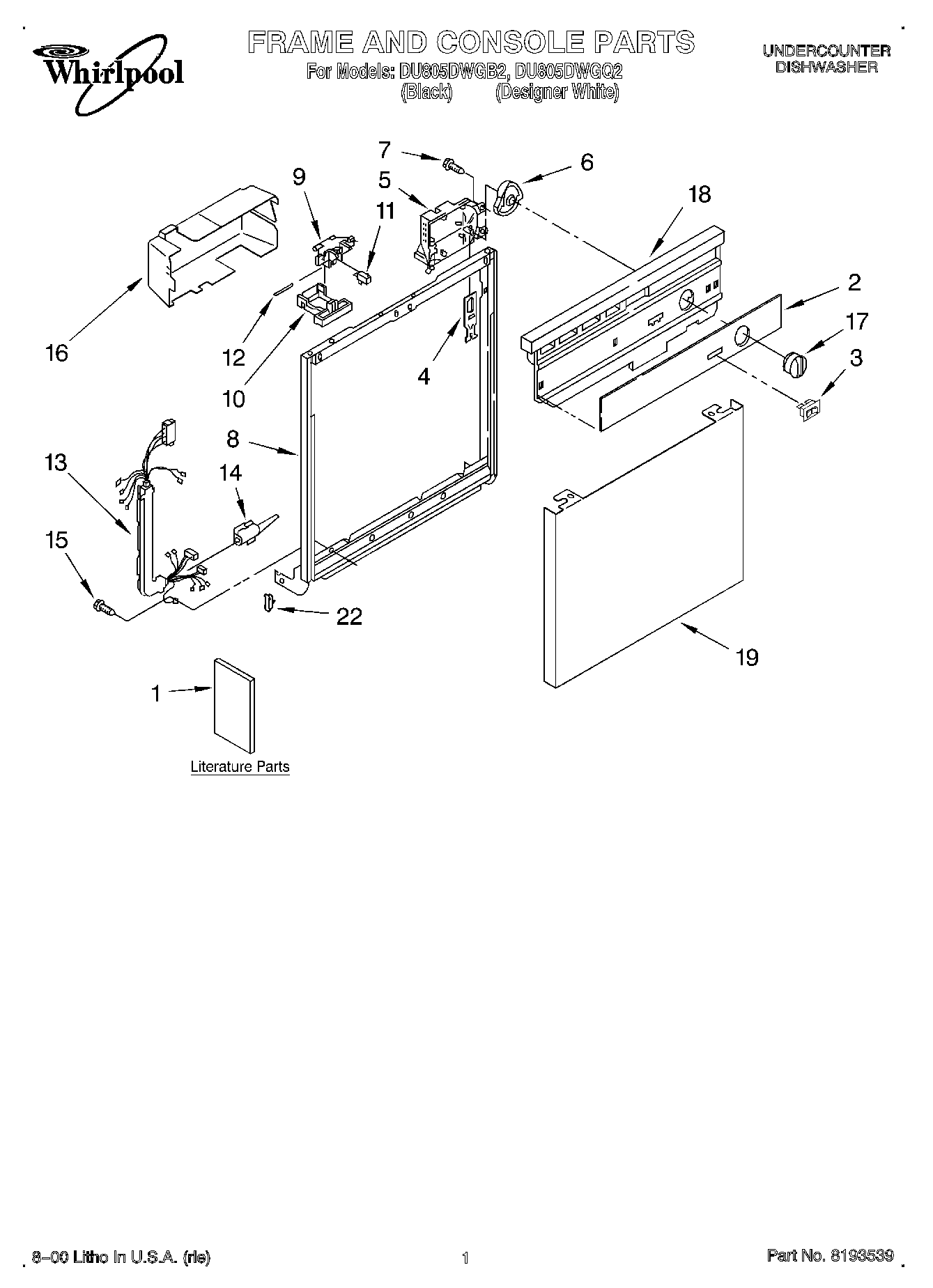

DU805DWGQ2 01 – FRAME AND CONSOLE, LITERATURE

DU805DWGQ2 01 – FRAME AND CONSOLE, LITERATURE

Written by

in

DU805DWGQ2 01 – FRAME AND CONSOLE, LITERATURE

Products

PositionProduct
1Literature Parts (Guide, Energy)
1Do-It Yourself Manual
1Literature Parts (Instructions, Installation)
1Instructions, Installation (Supplement) (Locating Your Water Supply)
1Guide, Use & Care
1Wiring Diagram
2Insert, Console
2Insert, Console
38051729 Whirlpool Dishwasher Switch
38051730 Whirlpool Dishwasher Switch
4WP3369529 Whirlpool Dishwasher Follower
5Timer
6WP8271510 Whirlpool Dishwasher Cam
7WP304231 Whirlpool Dishwasher Screw
8WP9743028 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch White
10Lever, Latch
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16Cover, Timer
173375348 Whirlpool Dishwasher Timer Knob
18Console (Includes Item 2)
18Console (Includes Item 2)
19Panel Front (Black Model)
19Panel Front (White Model)
22WP3373234 Whirlpool Dishwasher Bearing
