DU806CWDB4 01 – FRAME AND CONSOLE

DU806CWDB4 01 – FRAME AND CONSOLE

Written by

in

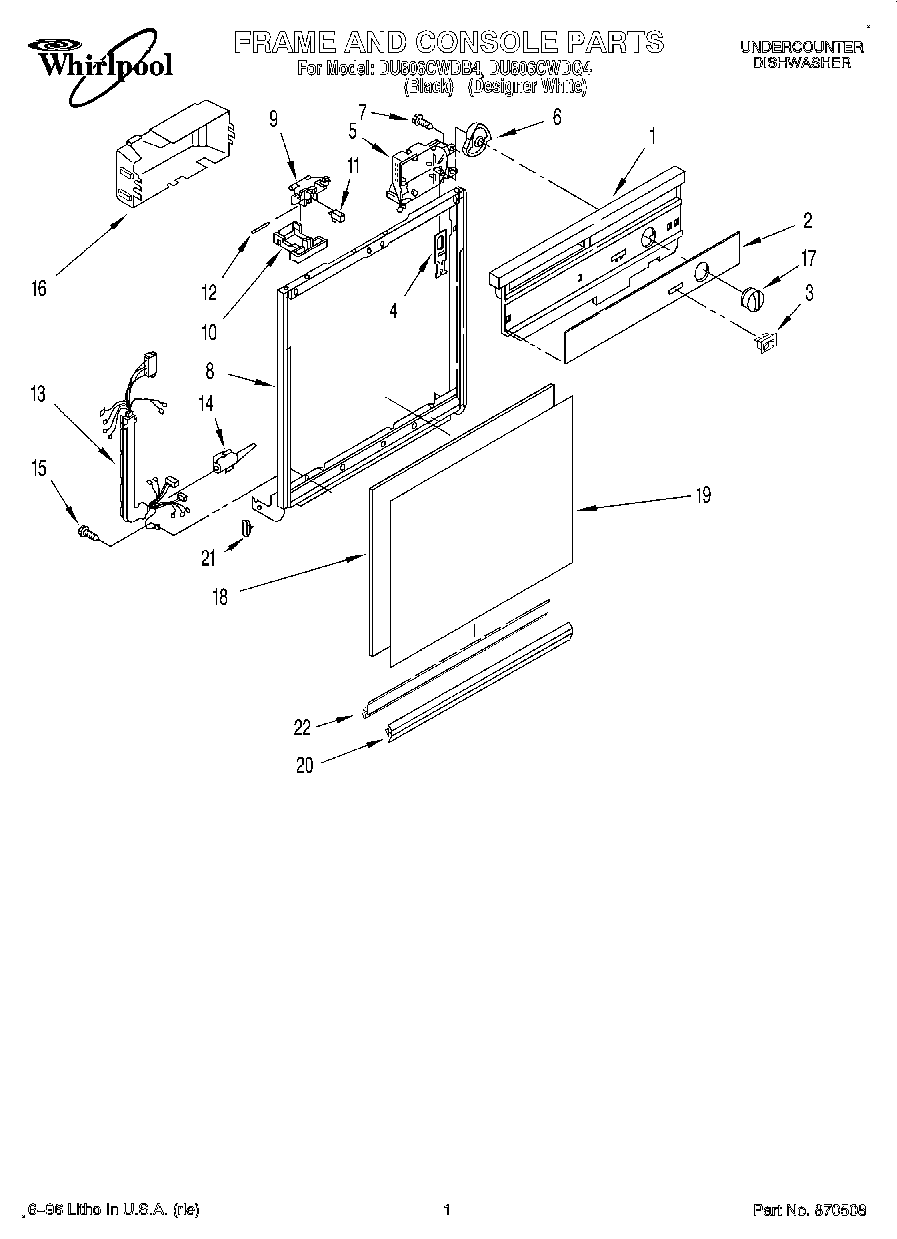

DU806CWDB4 01 – FRAME AND CONSOLE

Products

PositionProduct
1Console (Includes Item 2)
1Console (Includes Item 2) (White)
2Insert, Console
2Insert, Console (White)
3WP4314961 Whirlpool Lite Switch
4WP3369529 Whirlpool Dishwasher Follower
5Timer
6WP8271510 Whirlpool Dishwasher Cam
7WP304231 Whirlpool Dishwasher Screw
8Door Frame (Includes Item 24) (White)
83374711 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch (White)
10Latch Asm.
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP488234 Whirlpool Air Conditioner Screw
16Cover, Timer
173375348 Whirlpool Dishwasher Timer Knob
18Spacer, Corrugated
19Front Panel
19+Front Panel (White)
19WP3369769 Whirlpool Dishwasher Panel
20Retainer, Panel
20Retainer, Panel (White)
21WP3373234 Whirlpool Dishwasher Bearing
22WP3374716 Whirlpool Dishwasher Channel
