DU8100XT1 02 – TUB , LIT\OPTIONAL

DU8100XT1 02 – TUB , LIT\OPTIONAL

Written by

in

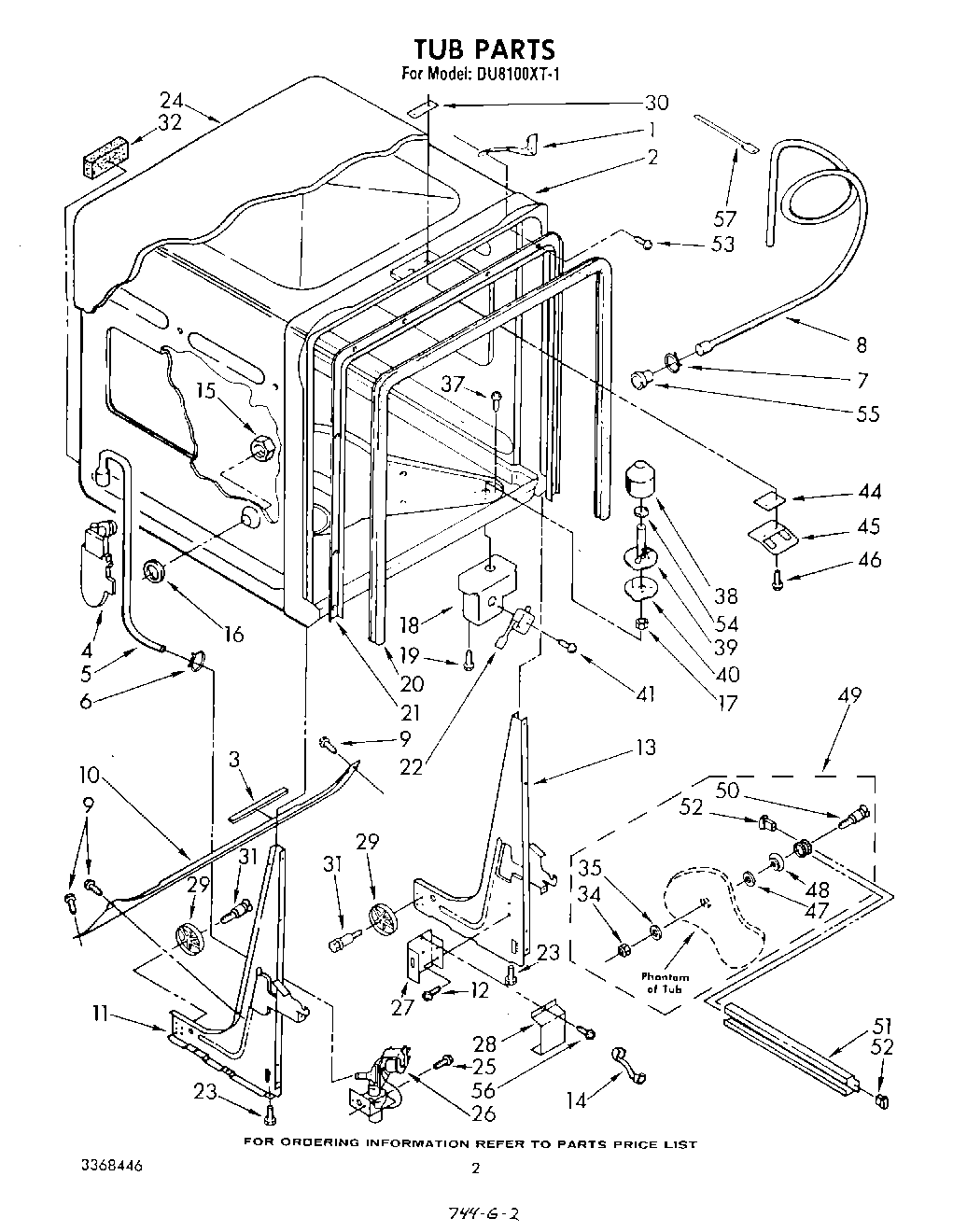

DU8100XT1 02 – TUB , LIT\OPTIONAL

Products

Position	Product
	WPL LIT3368446
	WPL LIT3367377
	WPL LIT3368261
	WPL LIT3368017
	WPL LIT304671
	WPL LIT3367228
1	Bracket, Mounting (2)
2	tub assembly
3	Edge Protector
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
10	Brace
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Leg & Hinge Assembly, R.H.
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket
21	Retainer, Gasket
22	Retainer-Main Top (2 Required)
22	Switch, Pressure (Alternate)
22	Switch, Pressure
22	Switch, Pressure (Alternate)
23	8193716 Whirlpool Leveling Leg
24	W11086533 Whirlpool Dishwasher Shield
26	Valve, Water Inlet (Alternate)
26	Valve, Water Inlet
27	Box, Terminal
28	300068 Whirlpool Dishwasher Cover Assembly
29	WP302819 Whirlpool Dishwasher Wheel
30	Nut, Twin Spring
31	Screw, Shoulder
32	Block, Foam (2)
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Wheel Assembly (8)
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
56	WP90767 Whirlpool Screw
57	Golden Harvest (Uncut)
57	Golden Harvest
57	72113 Whirlpool Touch-Up Paint
57	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
57	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
57	WP72107 Whirlpool Touchup
57	799344 Whirlpool Refrigerator Paint
57	72017 Whirlpool Appliance Touch-Up Paint White
57	Kit, Epoxy Patch (White)
57	350956 Whirlpool Spray Assembly
57	Toast
57	Paint, Spray (13 Oz.) (Platinum)
57	Leveler (Thinner) (2oz.)
57	72032 Whirlpool Touch Up Paint Black
57	285006 Whirlpool Spray
57	350930 Whirlpool White Spray Paint
57	WPW10144763 Whirlpool Tie Wire
57	Enamel, Black (1 Qt. Uncut)
57	Vinyl Touch Up (Blue)
57	WPL 72112
57	Platinum (Uncut)
57	Enamal, Toast (1 Qt. Uncut)
57	350942 Whirlpool Spray Paint
