DU8100XT1 06 – WIRING HARNESS – Aparts

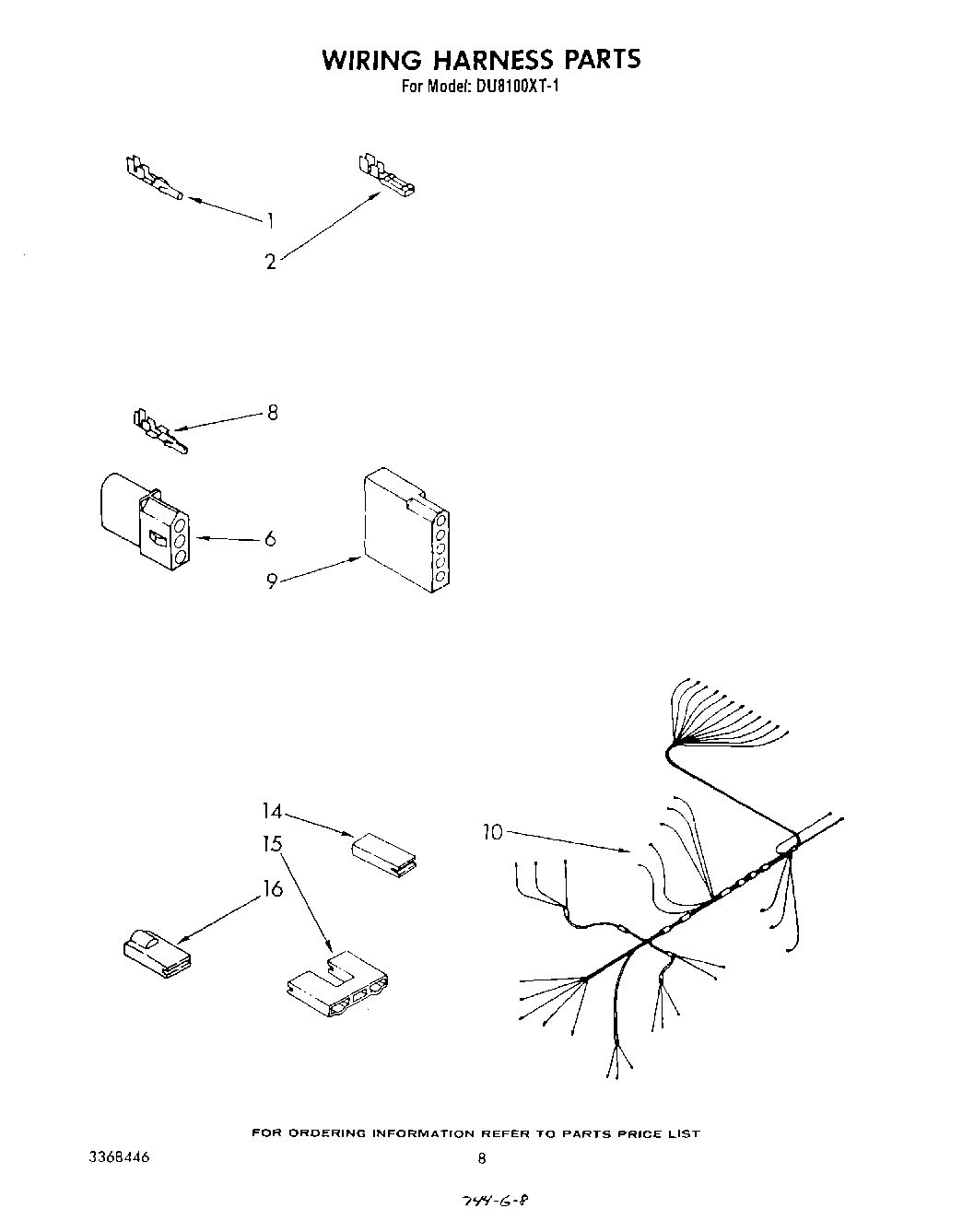

DU8100XT1 06 – WIRING HARNESS

Products

Position	Product
1	WP94614 Whirlpool Terminal
2	Terminal, Female
6	Connector (Door Switch)
8	WP596797 Whirlpool Terminal
9	Receptacle (5-Circuit)
10	Harness, Wiring
14	Connector Block
15	Terminal Insulator
15	Connector Block (Alternate)
16	Insulator, Terminal
