DU8100XT2 02 – TUB , LITERATURE AND OPTIONAL

DU8100XT2 02 – TUB , LITERATURE AND OPTIONAL

Written by

in

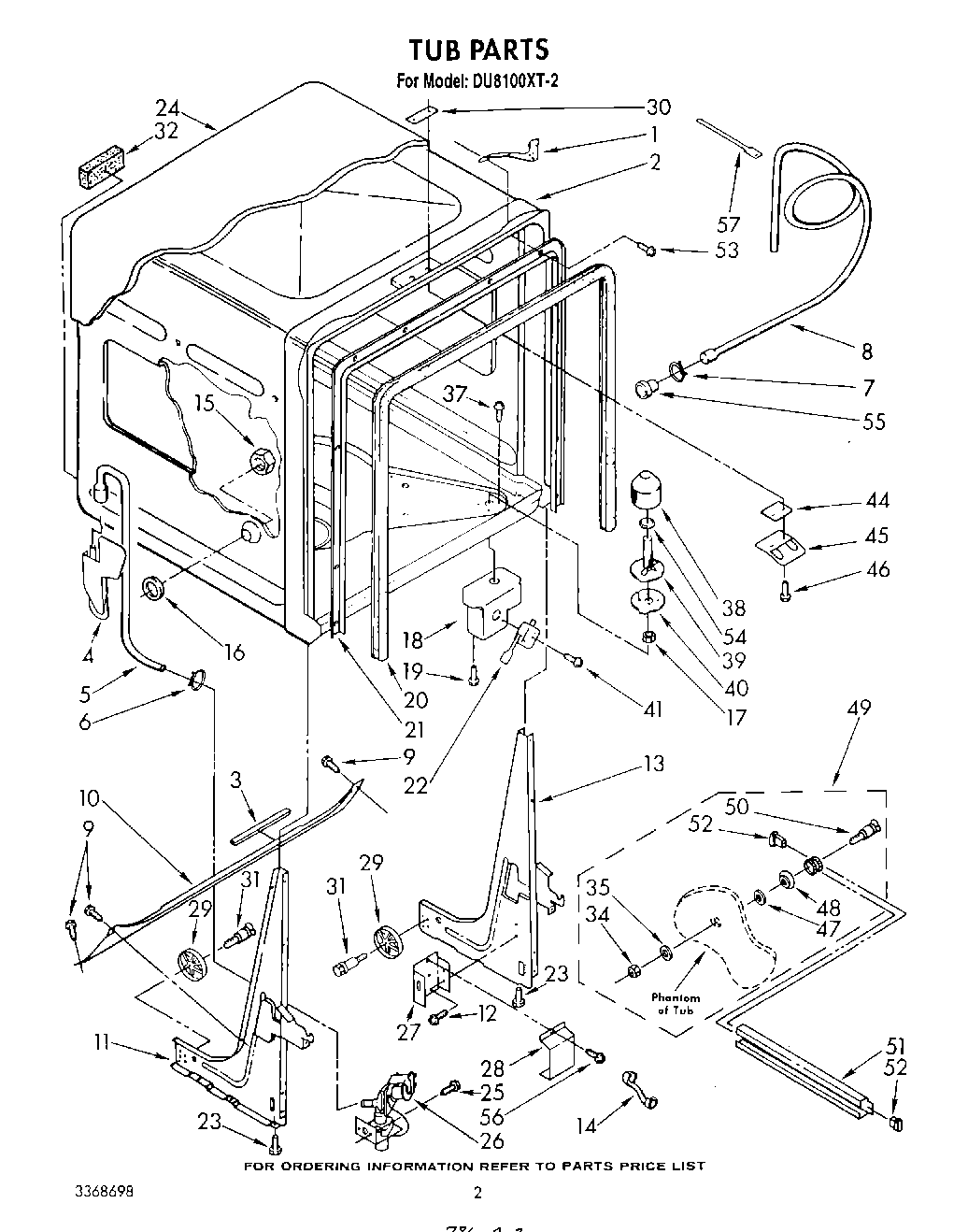

DU8100XT2 02 – TUB , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT3367228
WPL LIT3368698
WPL LIT3368261
WPL LIT3368017
WPL LIT3367377
1Bracket, Mounting (2)
2tub assembly
3Edge Protector
4Inlet, Water
5Hose, Inlet
6WP596669 Whirlpool Hose Clamp
7WP356138 Whirlpool Hose Clamp
8675544 Whirlpool Drain Hose
10Brace
11Leg & Hinge Assembly, L.H.
12Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13Leg & Hinge Assembly, R.H.
14Relief, Strain
15Nut, 7/18-16
16Gasket
17Nut
18Bracket, Overflow Switch
19Screw, 8 x 1/2 (3)
20Gasket
21Retainer, Gasket
22Switch, Pressure (Alternate)
22Switch, Pressure (Alternate)
22Switch, Pressure
22Retainer-Main Top (2 Required)
238193716 Whirlpool Leveling Leg
24W11086533 Whirlpool Dishwasher Shield
26Valve, Water Inlet (Alternate)
26Valve, Water Inlet (Alternate)
26Valve, Water Inlet
27Box, Terminal
28300068 Whirlpool Dishwasher Cover Assembly
29WP302819 Whirlpool Dishwasher Wheel
30Nut, Twin Spring
31Screw, Shoulder
32Block, Foam (2)
34Nut, Lock
35Washer (8)
37WP488729 Whirlpool Refrigerator Door Screw
38Float
39Standpipe, Overflow
40Gasket, Overflow
41Screw, 4-40 x 3/4
44Shim
45Strike
46WP308685 Whirlpool Microwave Screw
47Washer (8)
48Washer, Cup
49Wheel Assembly (8)
50Screw, Shoulder (8)
51Track (2)
52Endcap, Front or Rear (2)
53Screw, 8-18 x 5/8 (10)
54Gasket, Standpipe (2)
55WPL 301656
56WP90767 Whirlpool Screw
57WP72107 Whirlpool Touchup
57Paint, Spray (13 Oz.) (Platinum)
5772017 Whirlpool Appliance Touch-Up Paint White
57Golden Harvest (Uncut)
57Toast
57799344 Whirlpool Refrigerator Paint
57Golden Harvest
5772113 Whirlpool Touch-Up Paint
5772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
57Enamal, Toast (1 Qt. Uncut)
57Platinum (Uncut)
57Vinyl Touch Up (Blue)
57WPW10144763 Whirlpool Tie Wire
57Kit, Epoxy Patch (White)
57Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
57Leveler (Thinner) (2oz.)
5772032 Whirlpool Touch Up Paint Black
57285006 Whirlpool Spray
57350930 Whirlpool White Spray Paint
57Enamel, Black (1 Qt. Uncut)
57350942 Whirlpool Spray Paint
57WPL 72112
57350956 Whirlpool Spray Assembly
