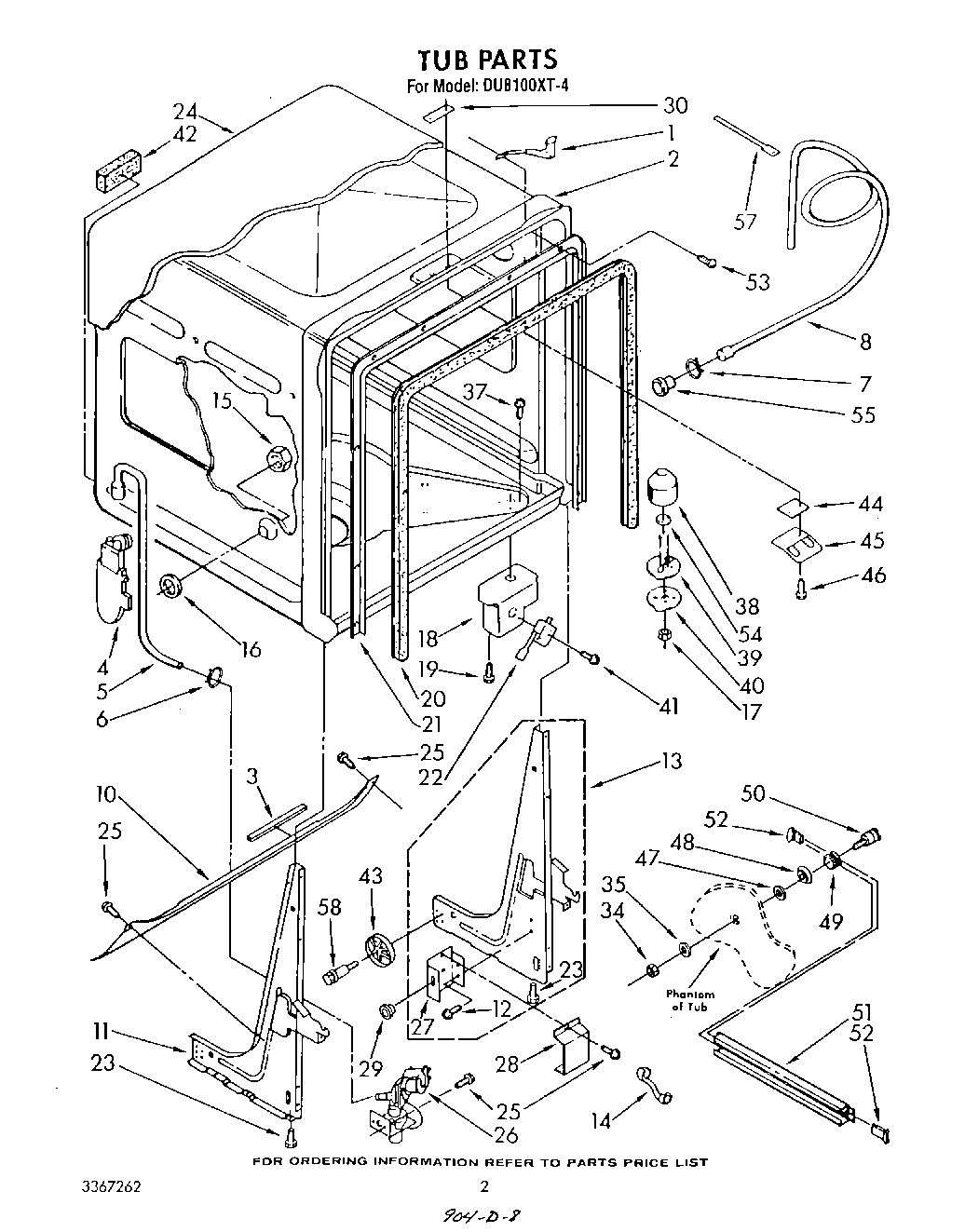

DU8100XT4 02 – TUB , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT3367228
	WPL LIT3367262
	WPL LIT3367377
	WPL LIT3368017
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	WPL LIT3370050
1	Bracket, Mounting (2)
2	tub assembly
3	Edge Protector
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
10	Brace
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Leg & Hinge Assembly, R.H.
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket
21	Retainer, Gasket
22	Switch, Pressure
23	8193716 Whirlpool Leveling Leg
24	W11086533 Whirlpool Dishwasher Shield
25	WP90767 Whirlpool Screw
26	Valve, Water Inlet (Alternate)
27	Box, Terminal
28	300068 Whirlpool Dishwasher Cover Assembly
29	WPL 302770
30	Nut, Twin Spring
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
42	Block, Foam (2)
43	WP302819 Whirlpool Dishwasher Wheel
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
57	WPW10144763 Whirlpool Tie Wire
58	Golden Harvest
58	Toast
58	Golden Harvest (Uncut)
58	72113 Whirlpool Touch-Up Paint
58	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
58	WP72107 Whirlpool Touchup
58	799344 Whirlpool Refrigerator Paint
58	72017 Whirlpool Appliance Touch-Up Paint White
58	350956 Whirlpool Spray Assembly
58	Paint, Spray (13 Oz.) (Platinum)
58	Enamal, Toast (1 Qt. Uncut)
58	Platinum (Uncut)
58	72032 Whirlpool Touch Up Paint Black
58	Screw (2)
58	Leveler (Thinner) (2oz.)
58	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
58	285006 Whirlpool Spray
58	Kit, Epoxy Patch (White)
58	Enamel, Black (1 Qt. Uncut)
58	350942 Whirlpool Spray Paint
58	WPL 72112
58	350930 Whirlpool White Spray Paint
