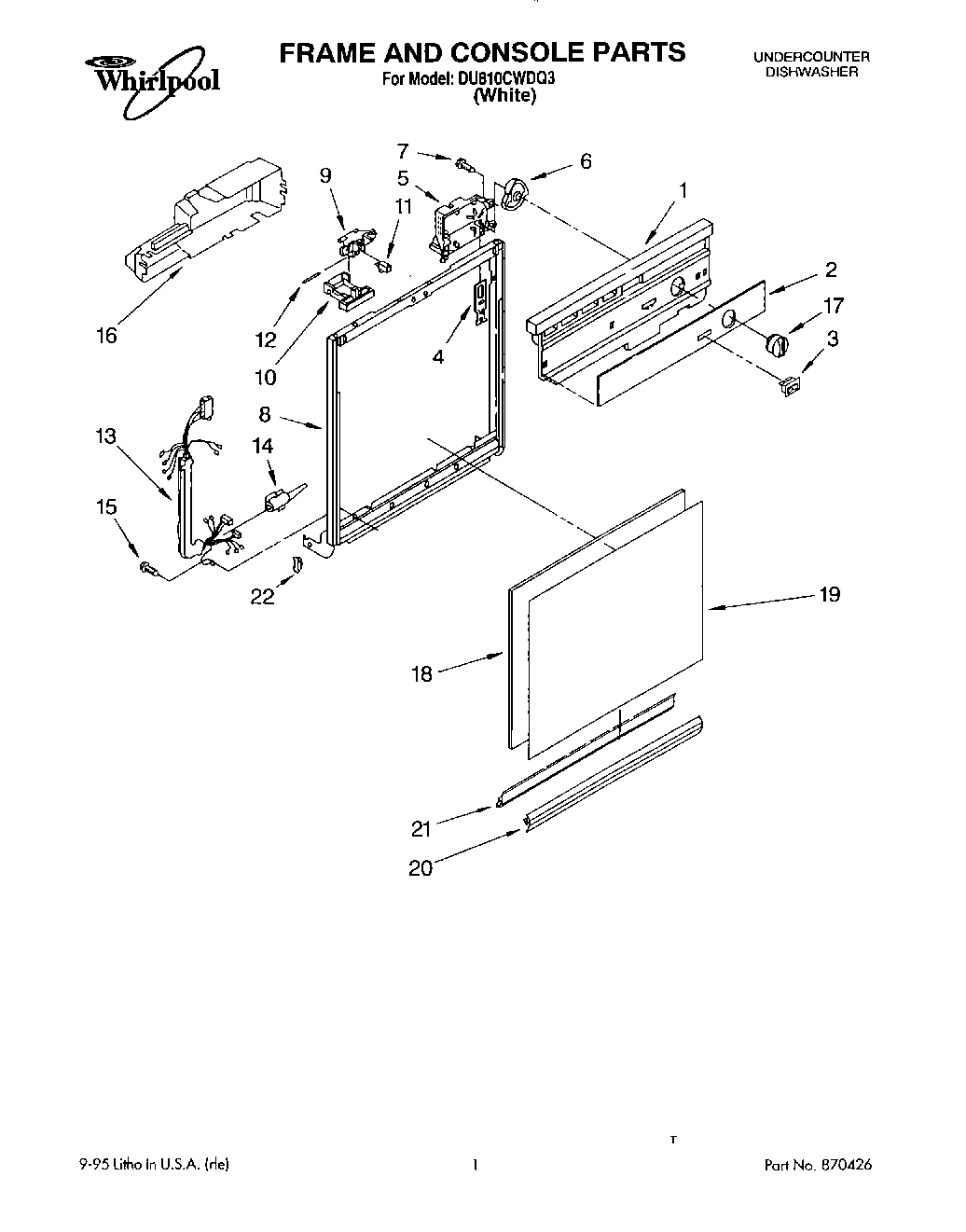

DU810CWDQ3 01 – FRAME AND CONSOLE

Products

Position	Product
1	Console (Includes Item 2)
2	Insert, Console
3	WP4314961 Whirlpool Lite Switch
4	WP3369529 Whirlpool Dishwasher Follower
5	Timer
6	WP8271510 Whirlpool Dishwasher Cam
7	WP304231 Whirlpool Dishwasher Screw
8	Door Frame (Includes Item 24) (White)
9	WP3380854 Whirlpool Door Latch Bolt
10	Lever, Latch White
11	Shield, Switch
12	Pin, Switch (2)
13	Harness and Protector
14	3376405 Whirlpool Dishwasher Elbow
15	WP488234 Whirlpool Air Conditioner Screw
16	Cover, Timer
17	3375348 Whirlpool Dishwasher Timer Knob
18	Spacer, Corrugated
19	+Front Panel (White)
20	Retainer, Panel (White)
21	WP3374716 Whirlpool Dishwasher Channel
22	WP3373234 Whirlpool Dishwasher Bearing
