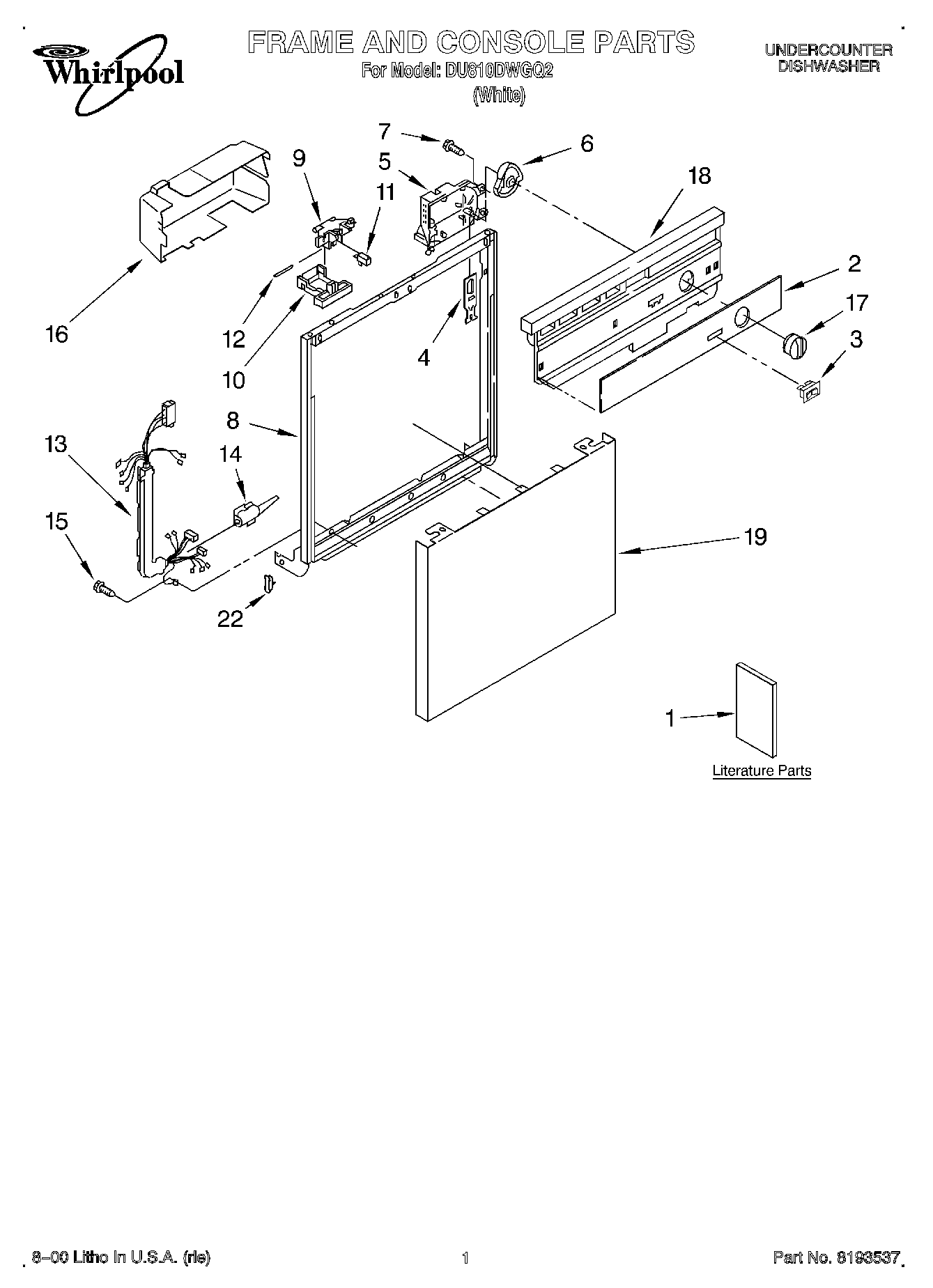

DU810DWGQ2 01 – FRAME AND CONSOLE, LITERATURE

DU810DWGQ2 01 – FRAME AND CONSOLE, LITERATURE

Written by

in

DU810DWGQ2 01 – FRAME AND CONSOLE, LITERATURE

Products

PositionProduct
1Wiring Diagram
1Literature Parts (Instructions, Installation)
1Literature Parts (Guide, Energy)
1Guide, Use & Care
1Instructions, Installation (Supplement) (Locating Your Water Supply)
1Do-It Yourself Manual
2Insert, Console (White)
38051730 Whirlpool Dishwasher Switch
4WP3369529 Whirlpool Dishwasher Follower
5Timer
6WP8271510 Whirlpool Dishwasher Cam
7WP304231 Whirlpool Dishwasher Screw
8WP9743028 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch White
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16Cover, Timer
173375348 Whirlpool Dishwasher Timer Knob
18Console (Includes Item 2) (White)
19Panel Front (White Model)
22WP3373234 Whirlpool Dishwasher Bearing
