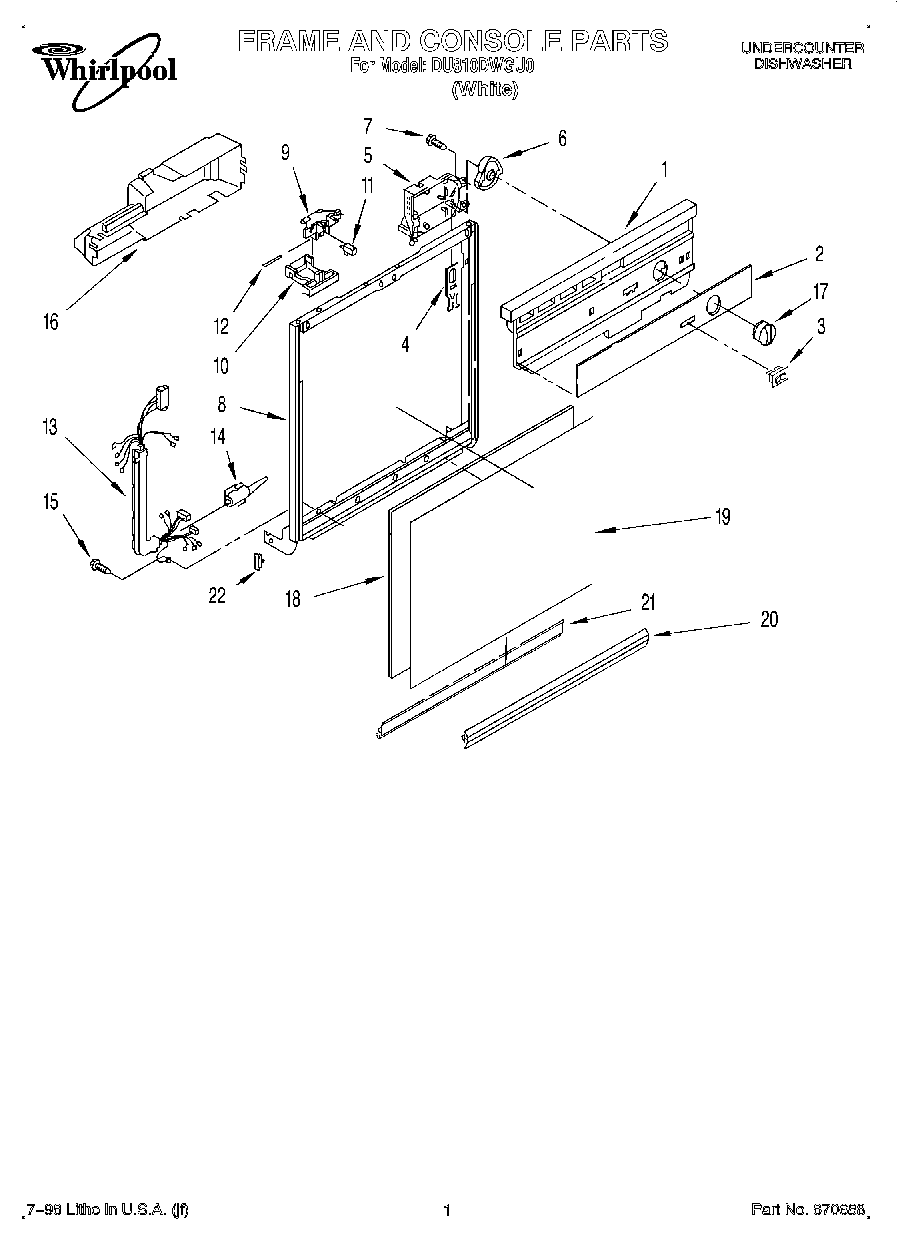

DU810DWGU0 01 – FRAME AND CONSOLE

Products

Position	Product
1	Console (Includes Item 2) (Black)
2	Insert, Console (Black)
3	8051729 Whirlpool Dishwasher Switch
4	WP3369529 Whirlpool Dishwasher Follower
5	Timer
6	WP8271510 Whirlpool Dishwasher Cam
7	WP304231 Whirlpool Dishwasher Screw
8	3374711 Whirlpool Dishwasher Frame
9	WP3380854 Whirlpool Door Latch Bolt
10	Lever, Latch
11	Shield, Switch
12	Pin, Switch (2)
13	Harness and Protector
14	3376405 Whirlpool Dishwasher Elbow
15	WP488234 Whirlpool Air Conditioner Screw
16	Cover, Timer
17	3375348 Whirlpool Dishwasher Timer Knob
18	Spacer, Corrugated
19	Front Panel
19	WP3369769 Whirlpool Dishwasher Panel
20	Retainer, Panel
21	WP3374716 Whirlpool Dishwasher Channel
22	WP3373234 Whirlpool Dishwasher Bearing
