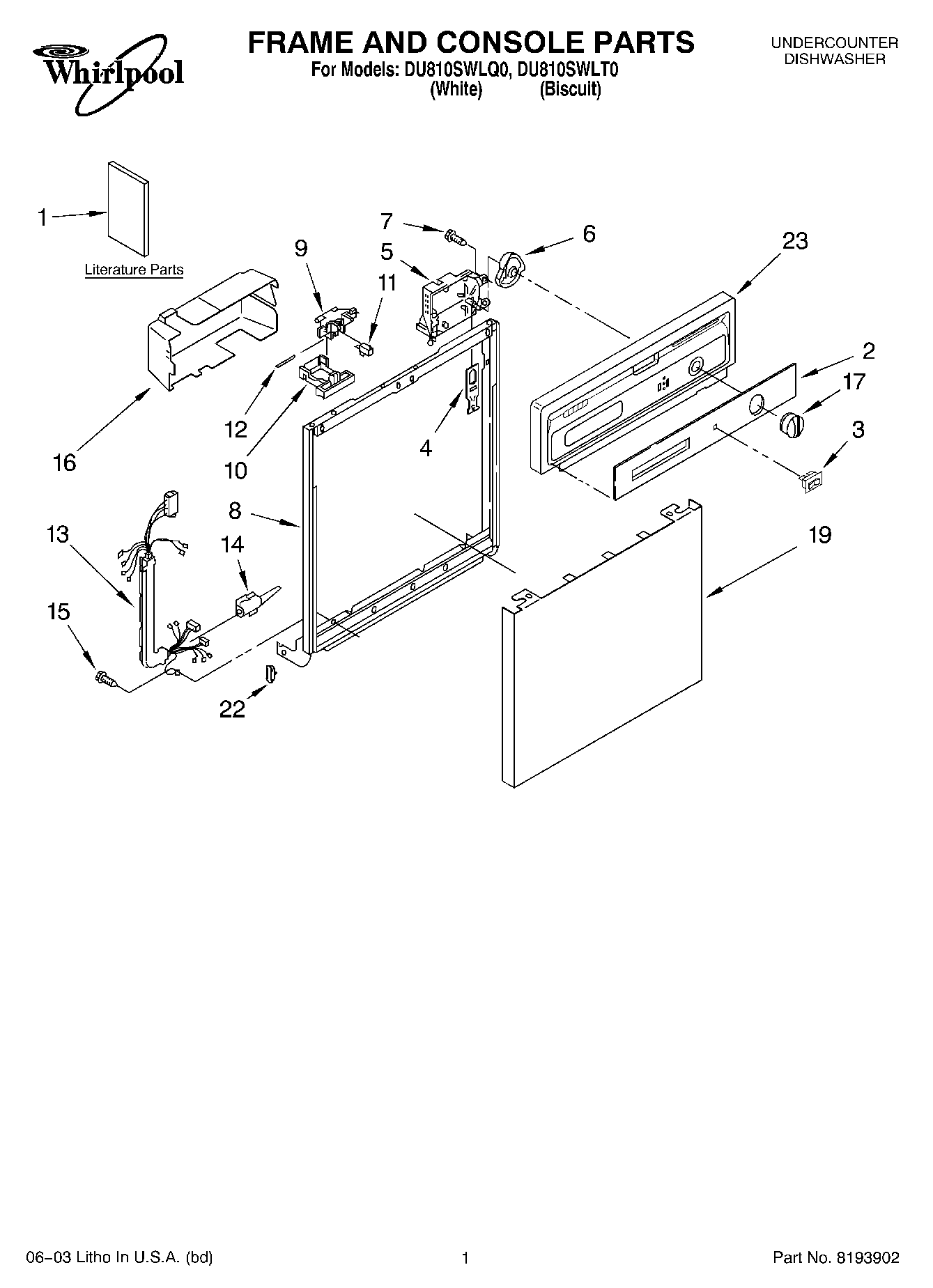

DU810SWLT0 01 – FRAME AND CONSOLE PARTS

Products

Position	Product
1	Instructions, Installation (Supplement) (Locating Your Water Supply)
1	Do-It Yourself Manual
1	Literature Parts (Instructions, Installation)
1	Literature Parts (Diagram, Wiring)
1	Literature Parts (Guide, Energy)
1	Literature Parts (Guide, Use & Care)
2	Insert, Console (White)
2	Insert, Console (Biscuit)
3	8274578 Whirlpool Dishwasher Switch
3	8051730 Whirlpool Dishwasher Switch
4	WP3369529 Whirlpool Dishwasher Follower
5	WP8535372 Whirlpool Dishwasher Timer
6	WP8271510 Whirlpool Dishwasher Cam
7	WP304231 Whirlpool Dishwasher Screw
8	WP9743028 Whirlpool Dishwasher Frame
9	WP3380854 Whirlpool Door Latch Bolt
10	Lever, Latch
10	Lever, Latch White
11	Shield, Switch
12	Pin, Switch (2)
13	Harness and Protector
14	3376405 Whirlpool Dishwasher Elbow
15	WP3400892 Whirlpool Dishwasher Screw
16	Cover, Timer
17	8275310 Whirlpool Dishwasher Timer Knob
17	8275308 Whirlpool Dishwasher Timer Knob
19	Panel Front (White Model)
19	Panel, Front (Biscuit)
22	WP3373234 Whirlpool Dishwasher Bearing
23	Console (Includes Item 2) (White)
23	Console (Includes Item 2) (Biscuit)
