DU8116XT1 02 – TUB , LITERATURE AND OPTIONAL

DU8116XT1 02 – TUB , LITERATURE AND OPTIONAL

Written by

in

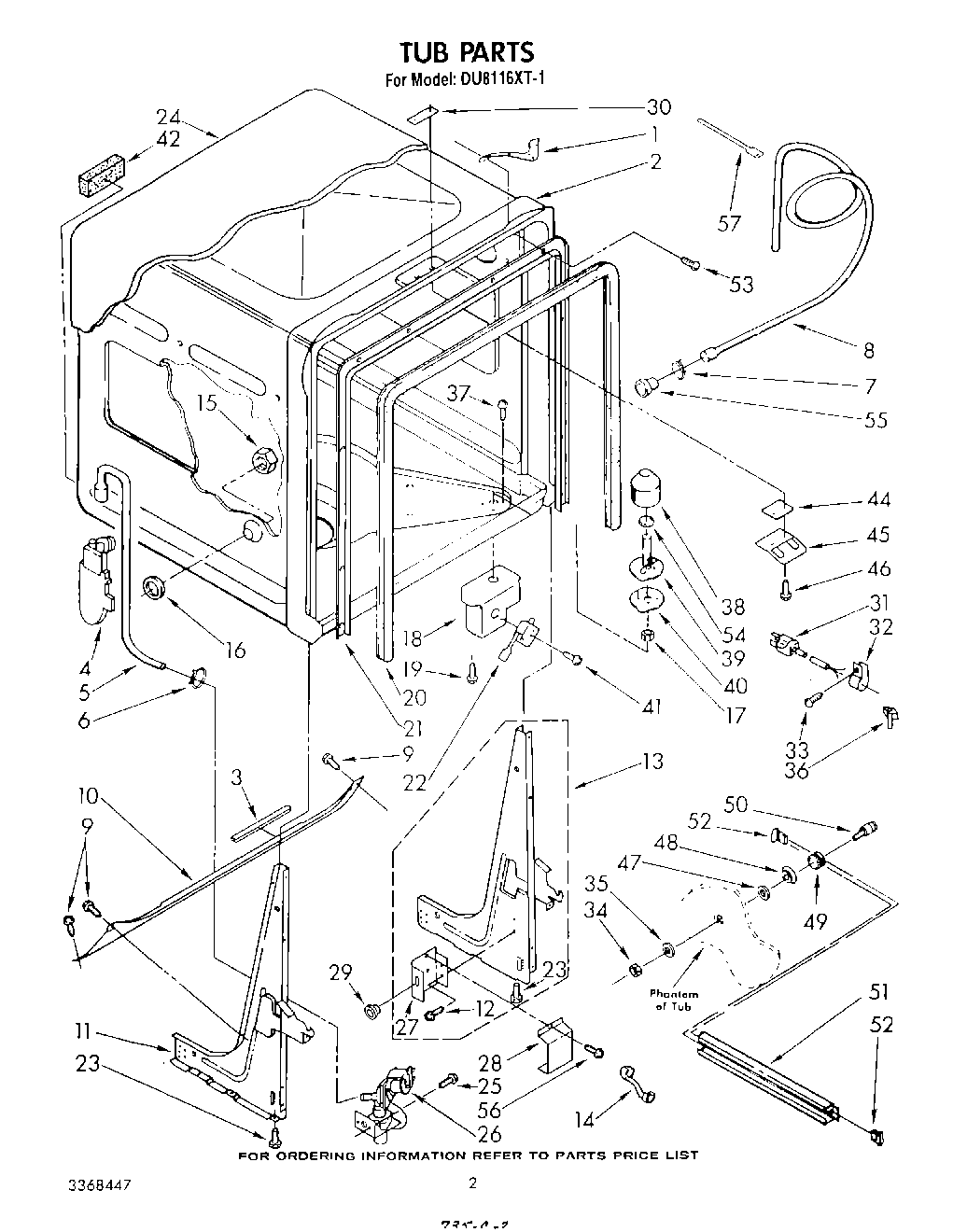

DU8116XT1 02 – TUB , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT3368447
	WPL LIT3368261
	WPL LIT3368017
	WPL LIT3367228
1	Bracket, Mounting (2)
2	tub assembly
3	Edge Protector
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
10	Brace
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Leg & Hinge Assembly, R.H.
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket
21	Retainer, Gasket
22	Retainer-Main Top (2 Required)
22	Switch, Pressure (Alternate)
22	Switch, Pressure (Alternate)
23	8193716 Whirlpool Leveling Leg
24	W11086533 Whirlpool Dishwasher Shield
26	Valve, Water Inlet (Alternate)
26	Valve, Water Inlet (Alternate)
27	Box, Terminal
28	300068 Whirlpool Dishwasher Cover Assembly
29	WPL 302770
30	Nut, Twin Spring
31	WPL 302764
32	Clamp, Strain Relief
33	Screw, 8-18 x 5/8 (10)
34	Nut, Lock
35	Washer (8)
36	WPL 770754
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
42	Block, Foam (2)
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
56	WP90767 Whirlpool Screw
57	Kit, Epoxy Patch (White)
57	Golden Harvest (Uncut)
57	Toast
57	Golden Harvest
57	72113 Whirlpool Touch-Up Paint
57	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
57	WP72107 Whirlpool Touchup
57	799344 Whirlpool Refrigerator Paint
57	72017 Whirlpool Appliance Touch-Up Paint White
57	350956 Whirlpool Spray Assembly
57	Paint, Spray (13 Oz.) (Platinum)
57	Enamal, Toast (1 Qt. Uncut)
57	Vinyl Touch Up (Blue)
57	Leveler (Thinner) (2oz.)
57	72032 Whirlpool Touch Up Paint Black
57	285006 Whirlpool Spray
57	350930 Whirlpool White Spray Paint
57	WPW10144763 Whirlpool Tie Wire
57	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
57	350942 Whirlpool Spray Paint
57	WPL 72112
57	Platinum (Uncut)
57	Enamel, Black (1 Qt. Uncut)
