DU8116XT2 02 – TUB , LITERATURE AND OPTIONAL

DU8116XT2 02 – TUB , LITERATURE AND OPTIONAL

Written by

in

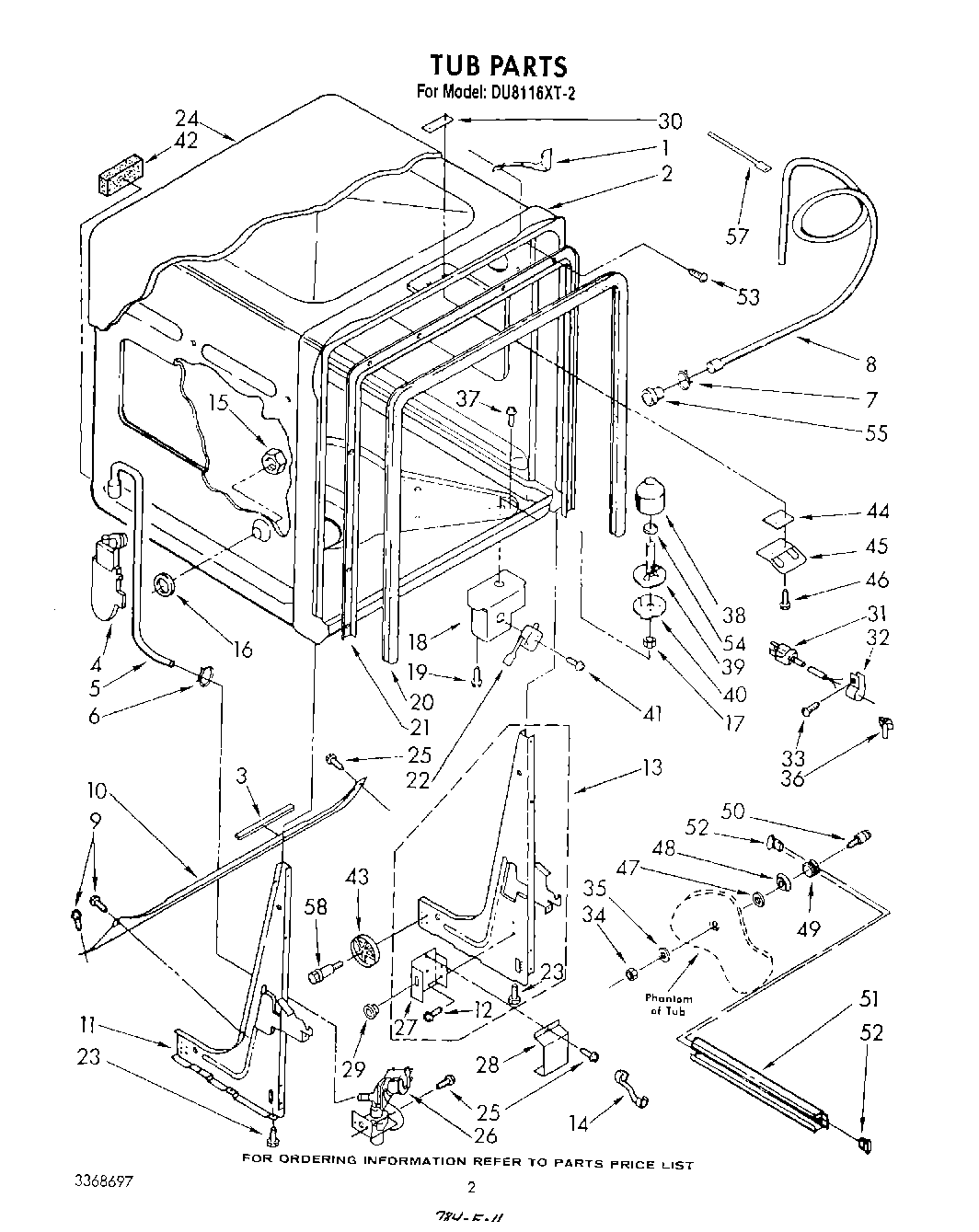

DU8116XT2 02 – TUB , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT3367228
WPL LIT3368261
WPL LIT3368017
WPL LIT3368697
1Bracket, Mounting (2)
2tub assembly
3Edge Protector
4Inlet, Water
5Hose, Inlet
6WP596669 Whirlpool Hose Clamp
7WP356138 Whirlpool Hose Clamp
8675544 Whirlpool Drain Hose
10Brace
11Leg & Hinge Assembly, L.H.
12Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13Leg & Hinge Assembly, R.H.
14Relief, Strain
15Nut, 7/18-16
16Gasket
17Nut
18Bracket, Overflow Switch
19Screw, 8 x 1/2 (3)
20Gasket
21Retainer, Gasket
22Switch, Pressure
238193716 Whirlpool Leveling Leg
24W11086533 Whirlpool Dishwasher Shield
25WP90767 Whirlpool Screw
26Valve, Water Inlet
27Box, Terminal
28300068 Whirlpool Dishwasher Cover Assembly
29WPL 302770
30Nut, Twin Spring
31WPL 302764
32Clamp, Strain Relief
33Screw, 8-18 x 5/8 (10)
34Nut, Lock
35Washer (8)
36WPL 770754
37WP488729 Whirlpool Refrigerator Door Screw
38Float
39Standpipe, Overflow
40Gasket, Overflow
41Screw, 4-40 x 3/4
42Block, Foam (2)
43WP302819 Whirlpool Dishwasher Wheel
44Shim
45Strike
46WP308685 Whirlpool Microwave Screw
47Washer (8)
48Washer, Cup
49Roller, Rack Track
50Screw, Shoulder (8)
51Track (2)
52Endcap, Front or Rear (2)
53Screw, 8-18 x 5/8 (10)
54Gasket, Standpipe (2)
55WPL 301656
57WPW10144763 Whirlpool Tie Wire
58Paint, Spray (13 Oz.) (Platinum)
58Toast
58Enamal, Toast (1 Qt. Uncut)
58Golden Harvest
5872113 Whirlpool Touch-Up Paint
5872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
58WP72107 Whirlpool Touchup
58799344 Whirlpool Refrigerator Paint
5872017 Whirlpool Appliance Touch-Up Paint White
58Golden Harvest (Uncut)
58Platinum (Uncut)
58WPL 72112
58Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
58Kit, Epoxy Patch (White)
58Leveler (Thinner) (2oz.)
5872032 Whirlpool Touch Up Paint Black
58Screw, Shoulder
58285006 Whirlpool Spray
58350930 Whirlpool White Spray Paint
58Enamel, Black (1 Qt. Uncut)
58350942 Whirlpool Spray Paint
58350956 Whirlpool Spray Assembly
