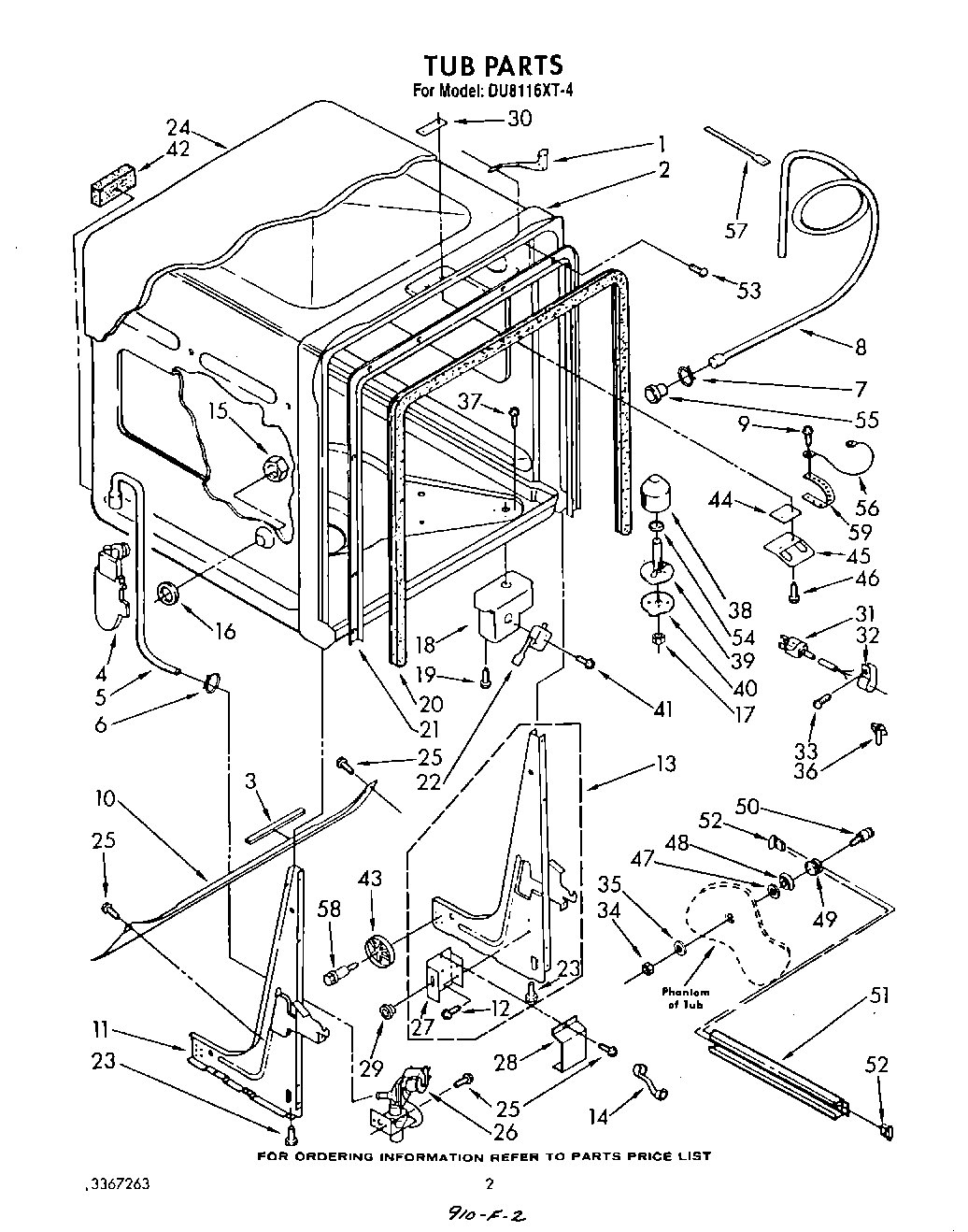

DU8116XT4 02 – TUB, LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT3370050
	WPL LIT3367377
	WPL LIT3368261
	WPL LIT3368017
	WPL LIT3367263
	WPL LIT3367228
1	Bracket, Mounting (2)
2	tub assembly
3	Edge Protector
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
9	Screw, Ground (10-24 x 1)
10	Brace
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Leg & Hinge Assembly, R.H.
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket
21	Retainer, Gasket
22	Switch, Pressure
23	8193716 Whirlpool Leveling Leg
24	W11086533 Whirlpool Dishwasher Shield
25	WP489128 Whirlpool Refrigerator Screw
26	Valve, Water Inlet (Alternate)
27	Box, Terminal
28	300068 Whirlpool Dishwasher Cover Assembly
29	WPL 302770
30	Nut, Twin Spring
31	WPL 302764
32	Clamp, Strain Relief
33	Screw, 8-18 x 5/8 (10)
34	Nut, Lock
35	Washer (8)
36	WPL 770754
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
42	Block, Foam (2)
43	WP302819 Whirlpool Dishwasher Wheel
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
56	WPL 303485
57	WPW10144763 Whirlpool Tie Wire
58	Screw (2)
59	Golden Harvest
59	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
59	Toast
59	72113 Whirlpool Touch-Up Paint
59	Strap, Ground
59	799344 Whirlpool Refrigerator Paint
59	72017 Whirlpool Appliance Touch-Up Paint White
59	350956 Whirlpool Spray Assembly
59	350930 Whirlpool White Spray Paint
59	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
59	Kit, Epoxy Patch (White)
59	285006 Whirlpool Spray
59	72032 Whirlpool Touch Up Paint Black
59	Leveler (Thinner) (2oz.)
59	Enamel, Black (1 Qt. Uncut)
59	350942 Whirlpool Spray Paint
59	WPL 72112
59	Platinum (Uncut)
59	Enamal, Toast (1 Qt. Uncut)
59	Paint, Spray (13 Oz.) (Platinum)
59	Golden Harvest (Uncut)
59	WP72107 Whirlpool Touchup
