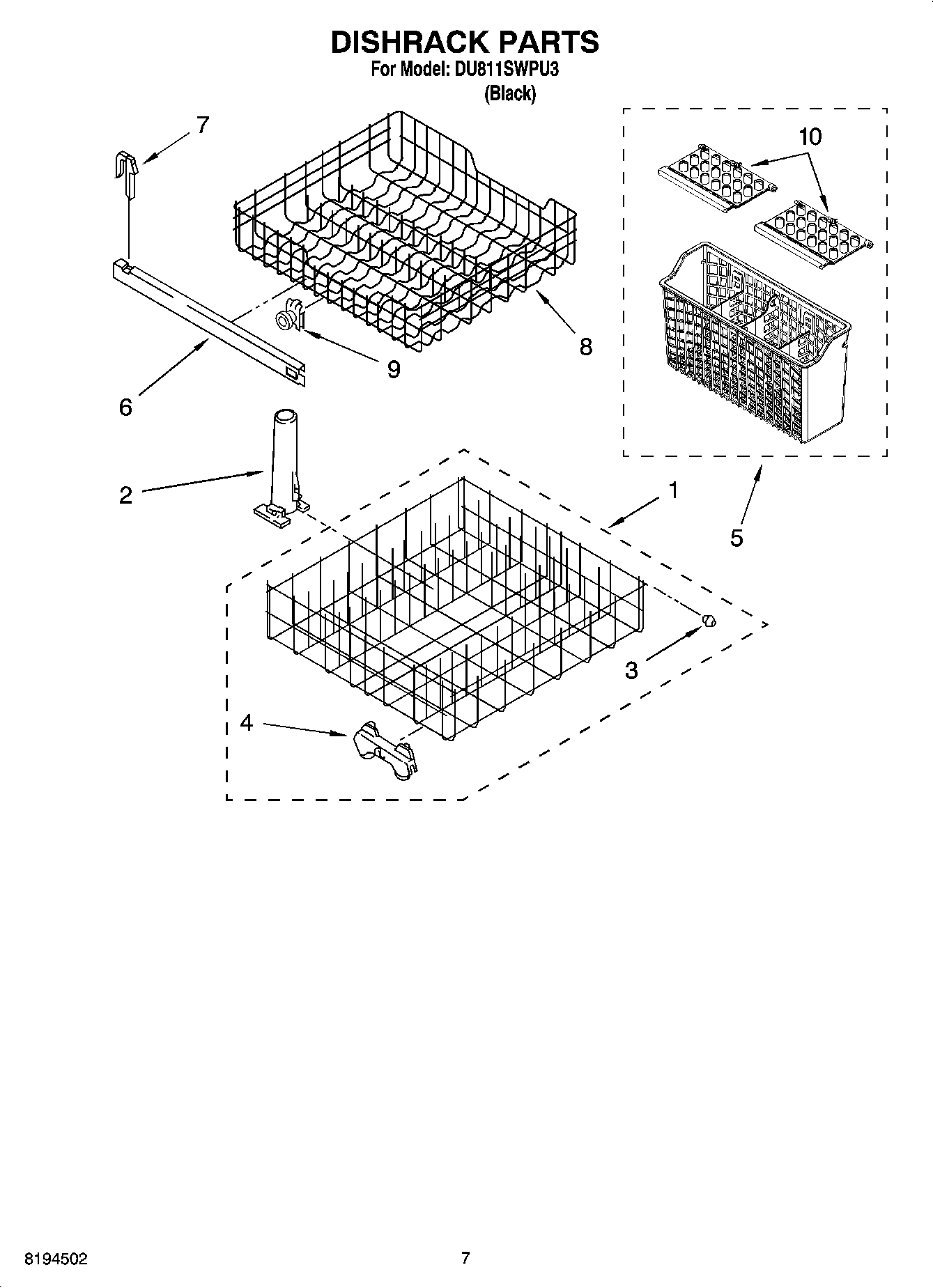

DU811SWPU3 06 – DISHRACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

DU811SWPU3 06 – DISHRACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

DU811SWPU3 06 – DISHRACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
72017 Whirlpool Appliance Touch-Up Paint White
676458 Whirlpool Dishwasher Tine Tip
W10840471 Whirlpool Dishwasher Touch Up
Side Panel Kit (White)
Side Panel Kit: (Almond)
DOOR SPRING KIT: (HEAVY DUTY)
Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
DISHRACK REPAIR
ACCESSORY PARTS
WPL ARI24153A1
675679 Whirlpool Dishwasher White Tip Tines
Door Spring Kit
350942 Whirlpool Spray Paint
Enamel, Black (1 Qt. Uncut)
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WP676453 Whirlpool Dishwasher Touch-Up
WP676455 Whirlpool Dishwasher Touch-Up
1W10161215 Whirlpool Dishwasher Dishrack
2WP8268825 Whirlpool Dishwasher Protector
3WP3385142 Whirlpool Dishwasher Bumper
4WP8268645 Whirlpool Dishwasher Lower Dishrack Roller Assembly
5WP8539107 Whirlpool Silverware Basket
6WP3385089 Whirlpool Track
7WP8565925 Whirlpool Slide Rail Stop
8W11169039 Whirlpool Dishwasher Dish Rack
9WPW10204131 Whirlpool Dishwasher Dishrack Adjuster
108539093 Whirlpool Dishwasher Lid
