DU8150XB0 03 – TUB ASSEMBLY, LIT/OPTIONAL
Written by
in

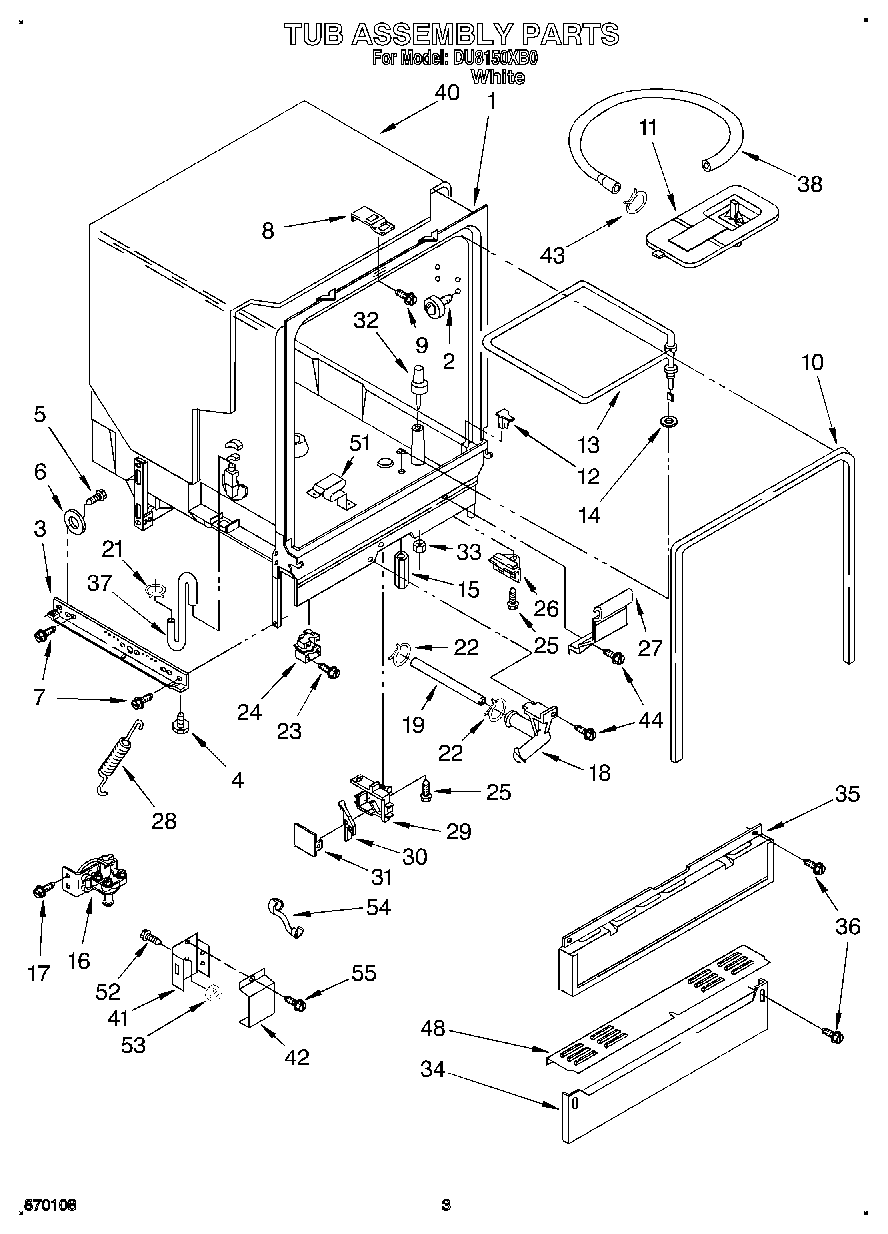

DU8150XB0 03 – TUB ASSEMBLY, LIT/OPTIONAL
Products
Position
Product
350956 Whirlpool Spray Assembly
Enamel, Black (1 Qt. Uncut)
WPL LIT3373738
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
W10840471 Whirlpool Dishwasher Touch Up
WPL LIT3373480
WP676453 Whirlpool Dishwasher Touch-Up
WP676455 Whirlpool Dishwasher Touch-Up
Instructions, Installation
350942 Whirlpool Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
676458 Whirlpool Dishwasher Tine Tip
Wiring Diagram
675679 Whirlpool Dishwasher White Tip Tines
Do-It Yourself Manual
Instructions, Installation (Supplement) (Locating Your Water Supply)
1
Tub Assembly
2
Tub, Wheel Assembly (8)
3
Runner (2)
4
8193716 Whirlpool Leveling Leg
5
Screw (2)
6
WP302819 Whirlpool Dishwasher Wheel
7
SCREW
8
Plate, Latch
9
Screw, 8-32
10
WPW10509257 Whirlpool Door Gasket
11
WP3369322 Whirlpool Cover Assembly
12
DEFLECTOR-DISHWASHER
13
WPW10082894 Whirlpool Dishwasher Heater
14
WP717273 Whirlpool Dishwasher Rubber Washer
15
Nut (2) (Heater Terminal)
16
Water Valve
17
WP489069 Whirlpool Compactor Screw
18
Check, Valve Assembly
19
Hose, Coupler
21
WP596669 Whirlpool Hose Clamp
22
CLAMP, HOSE
23
WP489128 Whirlpool Refrigerator Screw
24
W10102260 Whirlpool Dishwasher Motor Relay
25
WP304231 Whirlpool Dishwasher Screw
26
WP3368928 Whirlpool Dishwasher Fuse
27
Shield, Harness
28
WP3373228 Whirlpool Dishwasher Spring
29
Housing, Float Switch
30
Switch, Float
31
Cover, Switch Housing
32
WP8519552 Whirlpool Dishwasher Float
33
Nut
34
WP3379920 Whirlpool Dishwasher Toe Panel
35
Access Panel (White)
36
WP302868 Whirlpool Screw
37
Hose, Inlet
38
WP3374077 Whirlpool Dishwasher Drain Hose
40
W11086533 Whirlpool Dishwasher Shield
41
Box, Terminal
42
300068 Whirlpool Dishwasher Cover Assembly
43
WP356138 Whirlpool Hose Clamp
44
W11693756 Whirlpool Screw Assembly
48
Extension
51
Support, Heater
52
WP250830 Whirlpool Refrigerator Screw
53
WP488130 Whirlpool Air Conditioner Nut
54
Relief, Strain
55
Side Panel Kit (White)
55
Screw
55
Toast
55
Gold
55
Avocado
55
DOOR SPRING KIT: (HEAVY DUTY)
55
Side Panel Kit: (Almond)
55
Platinum
←
