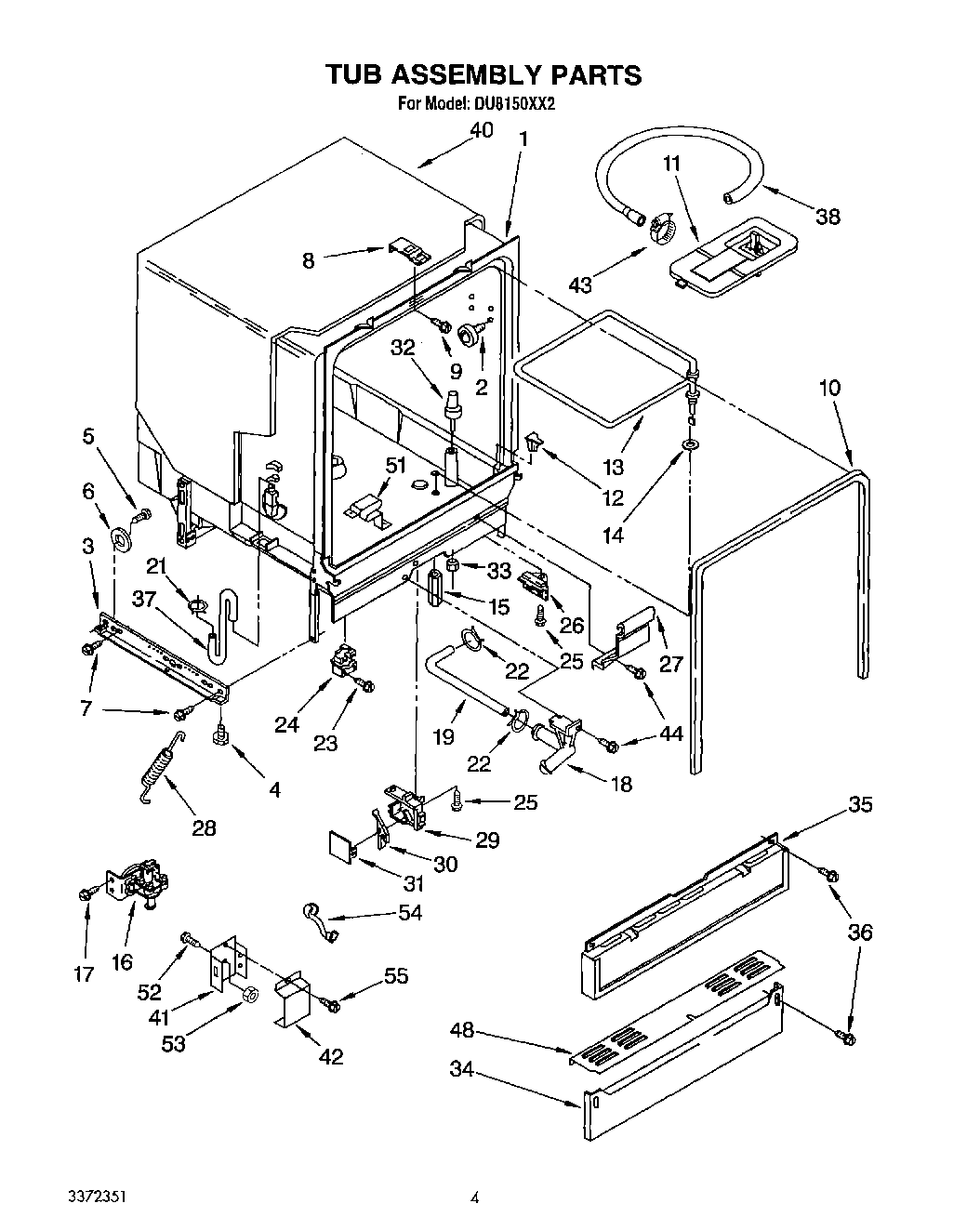

DU8150XX2 04 – TUB ASSEMBLY, LIT/OPTIONALadmin2025-04-26T13:11:42+00:00DU8150XX2 04 – TUB ASSEMBLY, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Instructions, Installation (Supplement) (Locating Your Water Supply) |
| WP676453 Whirlpool Dishwasher Touch-Up |
| WP676455 Whirlpool Dishwasher Touch-Up |
| WPL LIT3369093 |
| Platinum |
| Side Panel Kit: (Almond) |
| Toast |
| Gold |
| Avocado |
| WPL LIT3372351 |
| Side Panel Kit (White) |
| 675679 Whirlpool Dishwasher White Tip Tines |
| 676458 Whirlpool Dishwasher Tine Tip |
| W10840471 Whirlpool Dishwasher Touch Up |
| DOOR SPRING KIT: (HEAVY DUTY) |
| Tine Tip Repair Kit (Blue - Enough For Two Complete Dishracks) |
| Energy Guide |
| 350942 Whirlpool Spray Paint |
| WP72107 Whirlpool Touchup |
| Leveler (Thinner) |
| Almond (Uncut) |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| Enamel, Black (1 Qt. Uncut) |
| WPL LIT3369271 |
| 350956 Whirlpool Spray Assembly |
| 285006 Whirlpool Spray |
| WPL 72112 |
| WPL LIT3370464 |
| 1 | Tub Assembly |
| 2 | Tub, Wheel Assembly (8) |
| 3 | Runner (2) |
| 4 | 8193716 Whirlpool Leveling Leg |
| 5 | Screw (2) |
| 6 | WP302819 Whirlpool Dishwasher Wheel |
| 7 | SCREW |
| 8 | Plate, Latch |
| 9 | Screw, 8-32 |
| 10 | WPW10509257 Whirlpool Door Gasket |
| 11 | WP3369322 Whirlpool Cover Assembly |
| 12 | DEFLECTOR-DISHWASHER |
| 13 | WPW10082894 Whirlpool Dishwasher Heater |
| 14 | WP717273 Whirlpool Dishwasher Rubber Washer |
| 15 | Nut (2) (Heater Terminal) |
| 16 | Water Valve |
| 17 | WP489069 Whirlpool Compactor Screw |
| 18 | Check, Valve Assembly |
| 19 | Hose, Coupler |
| 21 | WP596669 Whirlpool Hose Clamp |
| 22 | CLAMP, HOSE |
| 23 | WP489128 Whirlpool Refrigerator Screw |
| 24 | W10102260 Whirlpool Dishwasher Motor Relay |
| 25 | WP304231 Whirlpool Dishwasher Screw |
| 26 | WP3368928 Whirlpool Dishwasher Fuse |
| 27 | Shield, Harness |
| 28 | Spring & Bearing Assembly (2) |
| 29 | Housing, Float Switch |
| 30 | Switch, Float |
| 31 | Cover, Switch Housing |
| 32 | WP8519552 Whirlpool Dishwasher Float |
| 33 | Nut |
| 34 | WP3379920 Whirlpool Dishwasher Toe Panel |
| 35 | Access Panel (White) |
| 36 | WP302868 Whirlpool Screw |
| 37 | Hose, Inlet |
| 38 | WP3374077 Whirlpool Dishwasher Drain Hose |
| 40 | W11086533 Whirlpool Dishwasher Shield |
| 41 | Box, Terminal |
| 42 | 300068 Whirlpool Dishwasher Cover Assembly |
| 43 | WP3367052 Whirlpool Hose Clamp |
| 44 | W11693756 Whirlpool Screw Assembly |
| 48 | Extension |
| 51 | Support, Heater |
| 52 | WP250830 Whirlpool Refrigerator Screw |
| 53 | WP488130 Whirlpool Air Conditioner Nut |
| 54 | Relief, Strain |
| 55 | Screw |
