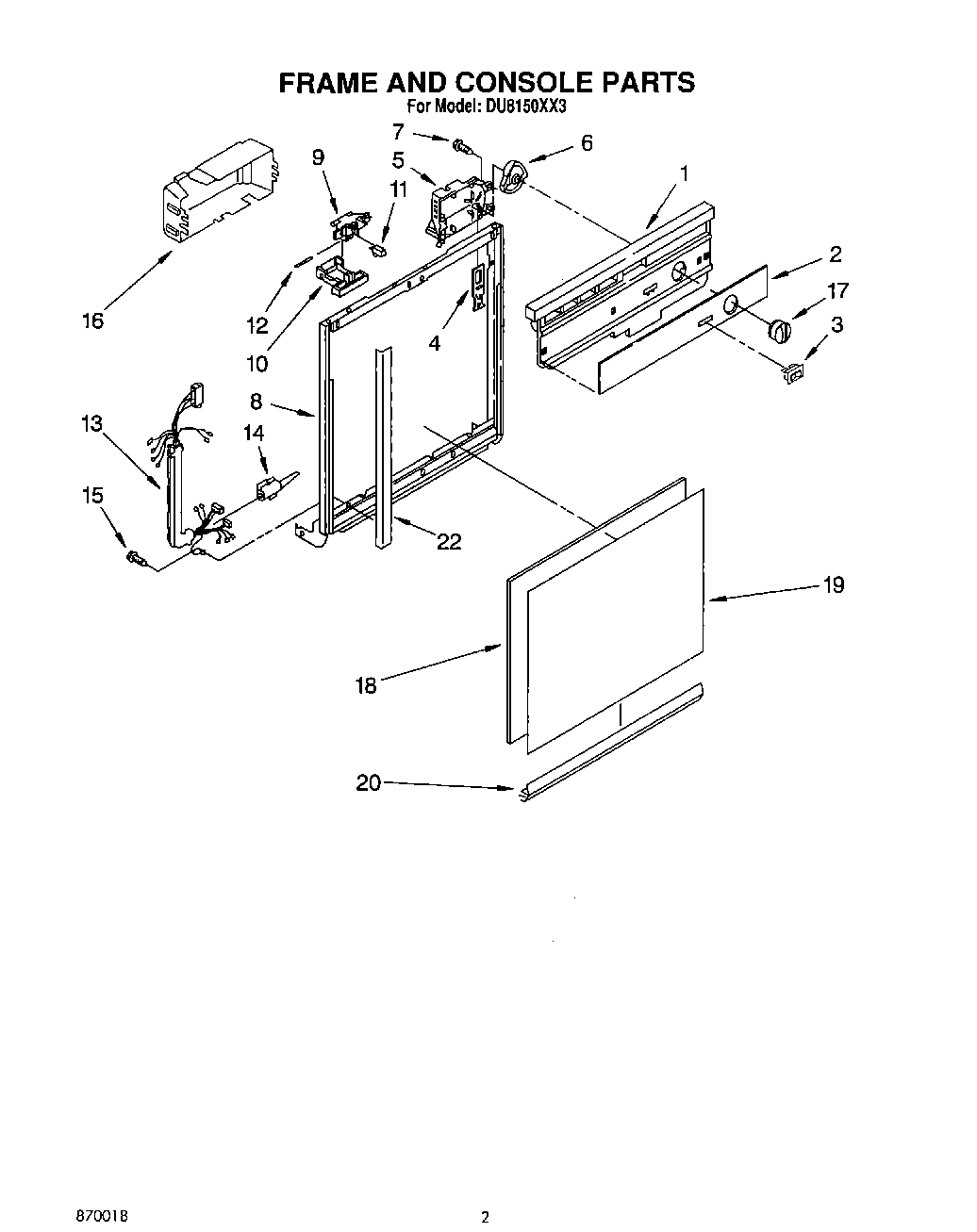

DU8150XX3 02 – FRAME AND CONSOLE

Products

Position	Product
1	Console (Also Order Key 2) (White)
2	Insert, Console
3	WP4314961 Whirlpool Lite Switch
4	Follower, Cam
5	Timer
6	WP3378124 Whirlpool Dishwasher Cam
7	WP304231 Whirlpool Dishwasher Screw
8	Door Frame
9	WP3380854 Whirlpool Door Latch Bolt
10	WP3368954 Whirlpool Dishwasher Lever
11	Shield, Switch
12	Pin, Switch (2)
13	Harness and Protector
14	3376405 Whirlpool Dishwasher Elbow
15	WP488234 Whirlpool Air Conditioner Screw
16	Cover, Timer
17	Knob, Timer (White)
18	Spacer, Corrugated
19	+Front Panel (White)
20	Retainer, Panel
22	Trim (2)
