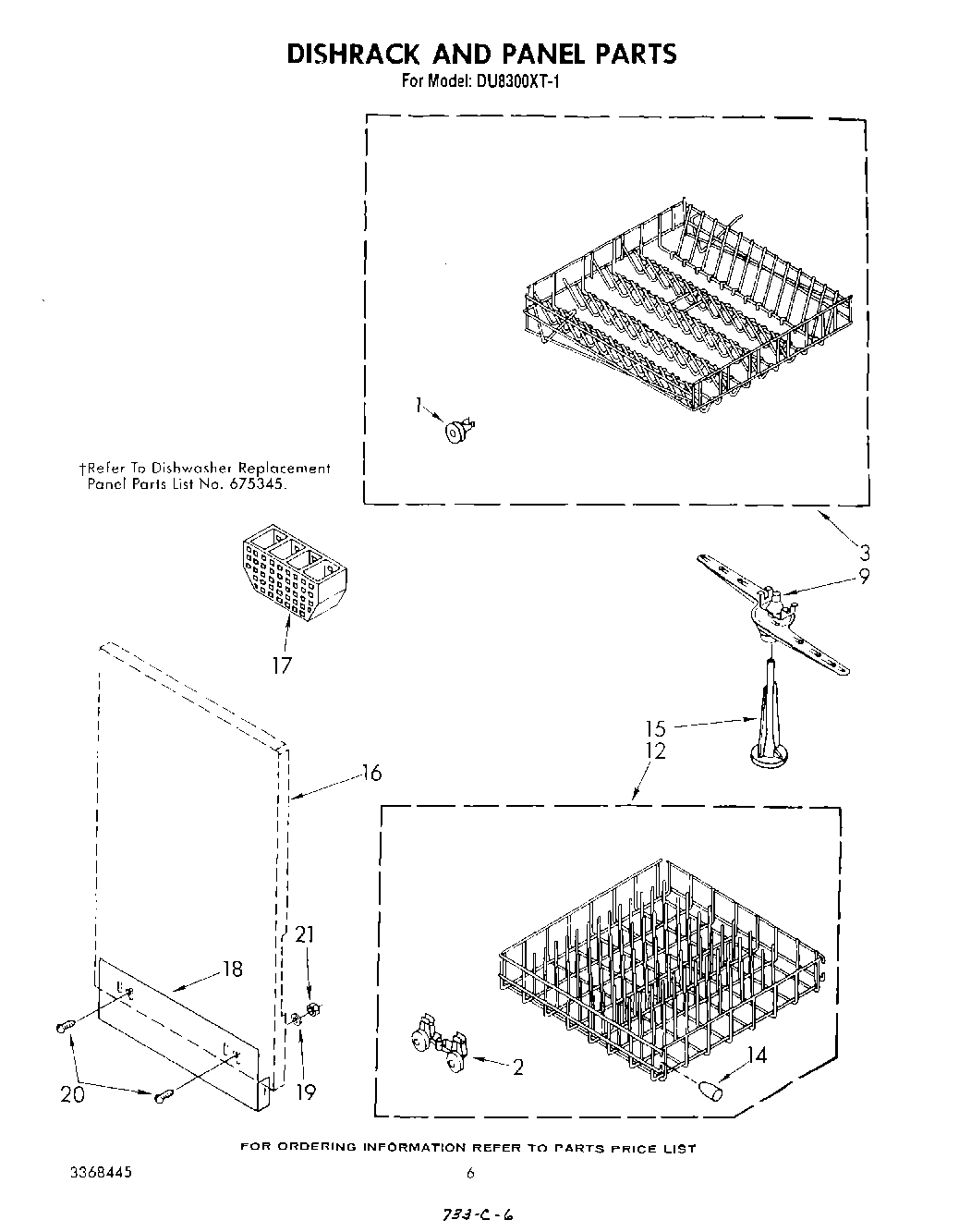

DU8300XT1 04 – DISHRACK AND PANEL

DU8300XT1 04 – DISHRACK AND PANEL

Written by

in

DU8300XT1 04 – DISHRACK AND PANEL

Products

PositionProduct
1Wheel & Axle Assembly (4)
24317933 Whirlpool Lower Rack Wheels
3W11169039 Whirlpool Dishwasher Dish Rack
9WP304204 Whirlpool Dishwasher Spray Arm
12W10311986 Whirlpool Dishwasher Lower Rack
14Bumper
15Tower
16Panel, Reversible Side
17WP8539066 Whirlpool Dishwasher Basket Ware
18Panel, Lower Side
19W11089212 Whirlpool Washer
20Screw, Lower Side Panel Mounting (2)
21W10080180 Whirlpool Nut
