DU8300XT2 02 – TUB , LIT/OPTIONAL

DU8300XT2 02 – TUB , LIT/OPTIONAL

Written by

in

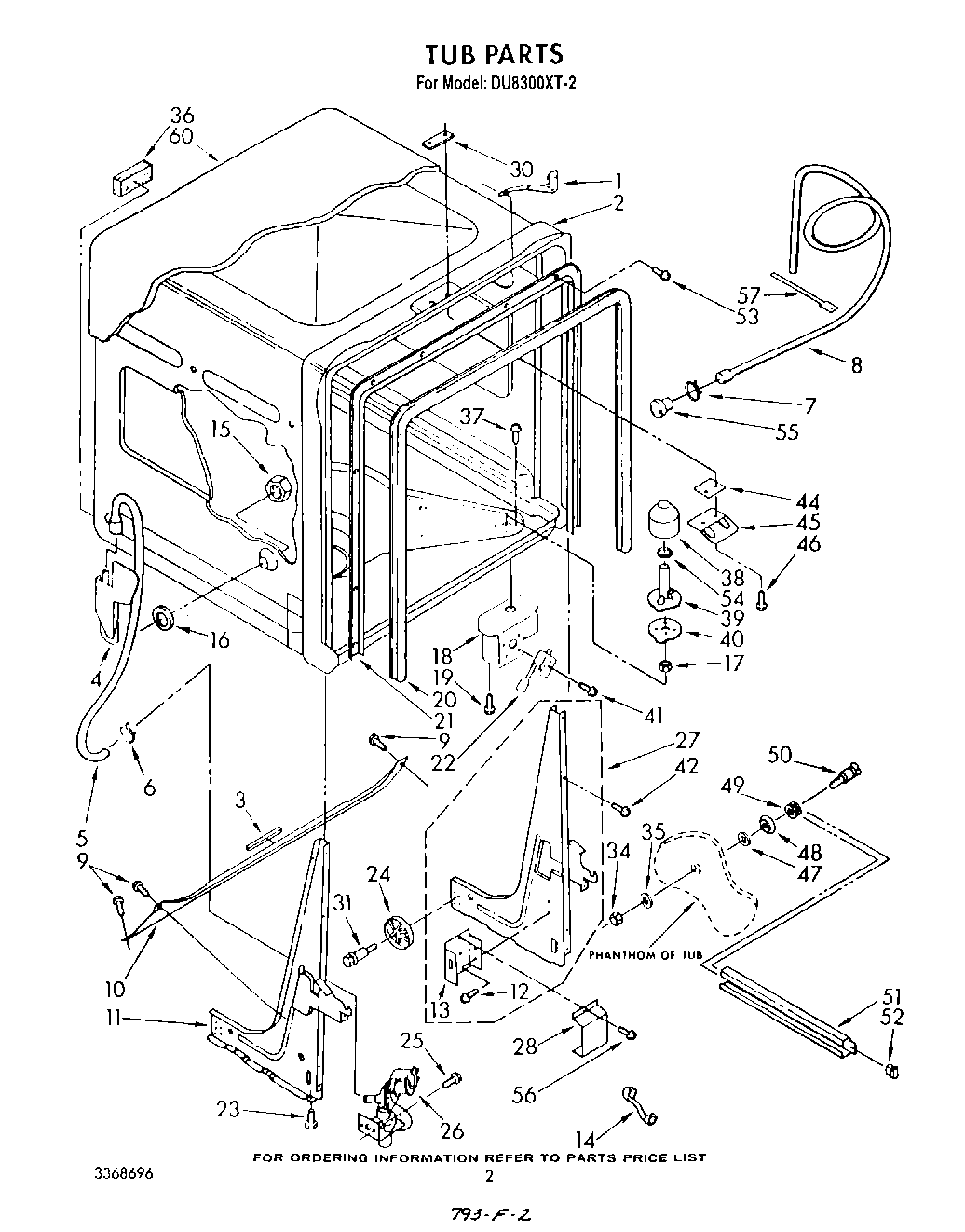

DU8300XT2 02 – TUB , LIT/OPTIONAL

Products

PositionProduct
WPL LIT3367228
WPL LIT3367816
WPL LIT304295
WPL LIT3368696
WPL LIT3368593
1Bracket, Mounting (2)
2tub assembly
3Edge Protector
4Inlet, Water
5Hose, Inlet
6WP596669 Whirlpool Hose Clamp
7WP356138 Whirlpool Hose Clamp
8675544 Whirlpool Drain Hose
9WP302868 Whirlpool Screw
10Brace
11Leg & Hinge Assembly, L.H.
12Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13Box, Terminal
14Relief, Strain
15Nut, 7/18-16
16Gasket
17Nut
18Bracket, Overflow Switch
19Screw, 8 x 1/2 (3)
20Gasket
21Retainer, Gasket
22Switch, Pressure (Alternate)
22Switch, Pressure (Alternate)
22Switch, Pressure
22Retainer-Main Top (2 Required)
238193716 Whirlpool Leveling Leg
24WP302819 Whirlpool Dishwasher Wheel
26Valve, Water Inlet (Alternate)
26Valve, Water Inlet (Alternate)
26Valve, Water Inlet
27Leg & Hinge Assembly, R.H.
28300068 Whirlpool Dishwasher Cover Assembly
30Nut, Twin Spring
31Screw, Shoulder
34Nut, Lock
35Washer (8)
36Block, Foam (2)
37WP488729 Whirlpool Refrigerator Door Screw
38Float
39Standpipe, Overflow
40Gasket, Overflow
41Screw, 4-40 x 3/4
44Shim
45Strike
46WP308685 Whirlpool Microwave Screw
47Washer (8)
48Washer, Cup
49Roller, Rack Track
50Screw, Shoulder (8)
51Track (2)
52Endcap, Front or Rear (2)
53Screw, 8-18 x 5/8 (10)
54Gasket, Standpipe (2)
55WPL 301656
56WP90767 Whirlpool Screw
57WPW10144763 Whirlpool Tie Wire
6072110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
60Almond (Uncut)
6072113 Whirlpool Touch-Up Paint
60Leveler (Thinner)
60WP72107 Whirlpool Touchup
60799344 Whirlpool Refrigerator Paint
60285006 Whirlpool Spray
6072017 Whirlpool Appliance Touch-Up Paint White
60350956 Whirlpool Spray Assembly
60Enamal, Toast (1 Qt. Uncut)
60Enamel, Coffee (1 Qt. Uncut)
60Platinum (Uncut)
60WPL 72112
60350942 Whirlpool Spray Paint
60W11086533 Whirlpool Dishwasher Shield
60Paint, Spray (13 Oz.) (Platinum)
60Kit, Epoxy Patch (White)
60Toast
60Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
60Vinyl Touch Up (Blue)
60Golden Harvest (Uncut)
60350930 Whirlpool White Spray Paint
60Enamel, New Avocado (1 Qt. Uncut)
60Golden Harvest
