DU8300XT2 03 – DOOR

DU8300XT2 03 – DOOR

Written by

in

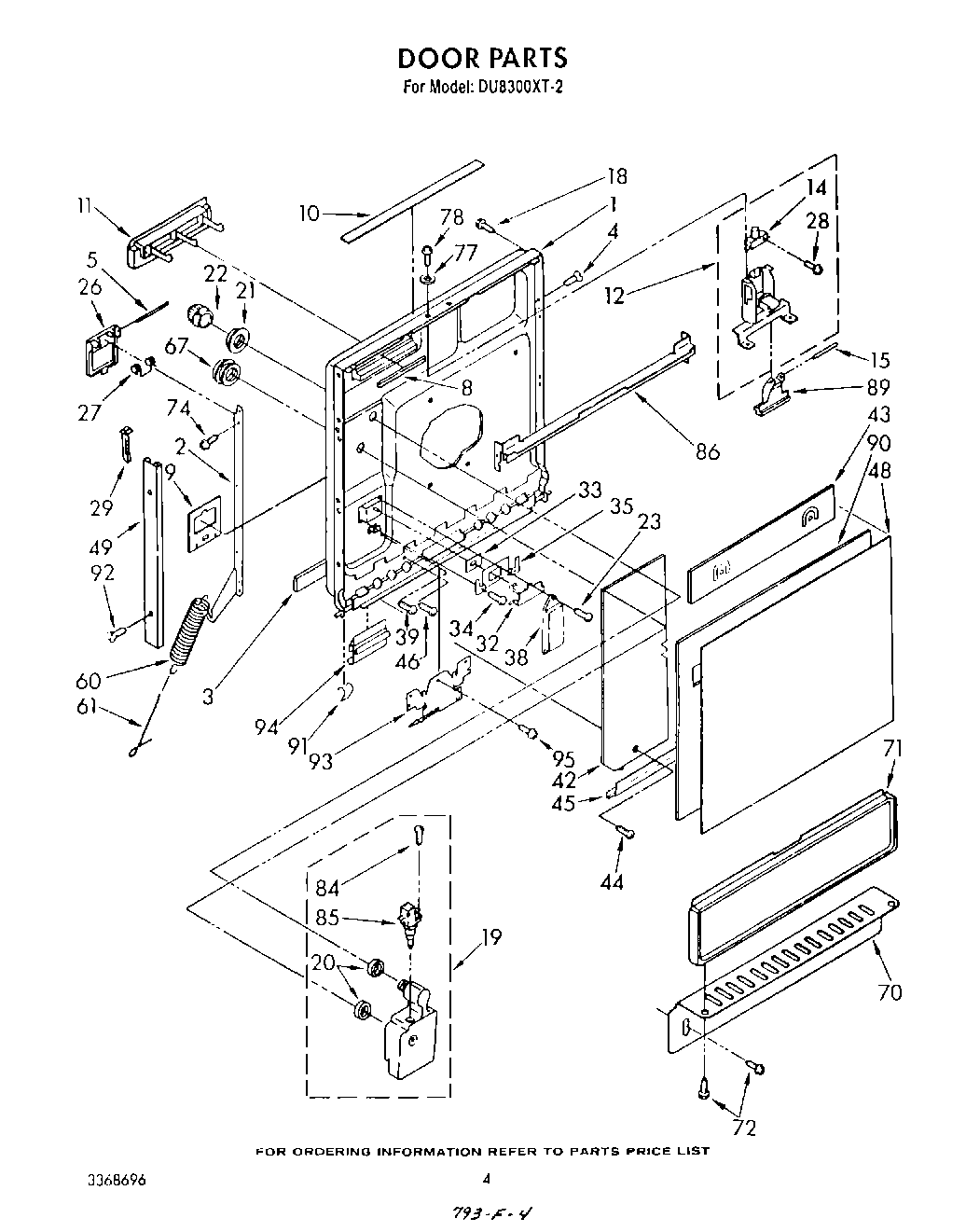

DU8300XT2 03 – DOOR

Products

PositionProduct
1Door, Inner
2Support, Door (R.H.)
2Support, Door (L.H.)
3Gasket, Door
4WP489069 Whirlpool Compactor Screw
54387043 Whirlpool Door Latch Kit
8Baffle
9Barrier
10Label, Users Guide
11Screen, Vent
12Latch Assembly
14Switch, Interlock (Alternate)
14Switch, Interlock (Alternate)
14Switch, Interlock (Alternate)
14Switch, Interlock
15Pin, Pivot
18Screw, 8 x 1-7/8 (2)
19Dispenser, Wetting Agent
20Washer
21Nut, 1-14
22Indicator, Leveler
27WP8066018 Whirlpool Spring Assembly
28Screw, 6-32 x 1
29Clip, Trim Guard (2)
32Lever, Catch
33Seal, Lever
34WP488729 Whirlpool Refrigerator Door Screw
35Retainer
38Actuator
39WP304231 Whirlpool Dishwasher Screw
42Barrier, Door
43Barrier, Console
44W11693756 Whirlpool Screw Assembly
45Edging, Panel
48Panel, Front
49Trim, Door R.H.
49Trim, Door (L.H.)
60675611 Whirlpool Spring Assembly
61WP716401 Whirlpool Dishwasher Retainer
67Cap, Drip
70Plate, Toe
71WP3367793 Whirlpool Black Access Panel
72WP302868 Whirlpool Screw
74WP488627 Whirlpool Refrigerator Screw
77Washer (2)
78WP90767 Whirlpool Screw
84Screw, 4-20 x 3/8 (2)
85Actuator
86Rail, Support
89WPL 304408
90Spacer, Panel
91Clip, Wire
92Screw, 8 x 1/2 (4)
93Shield, Harness
94WPL 3367720
95Screw, 8-18 x 5/8
