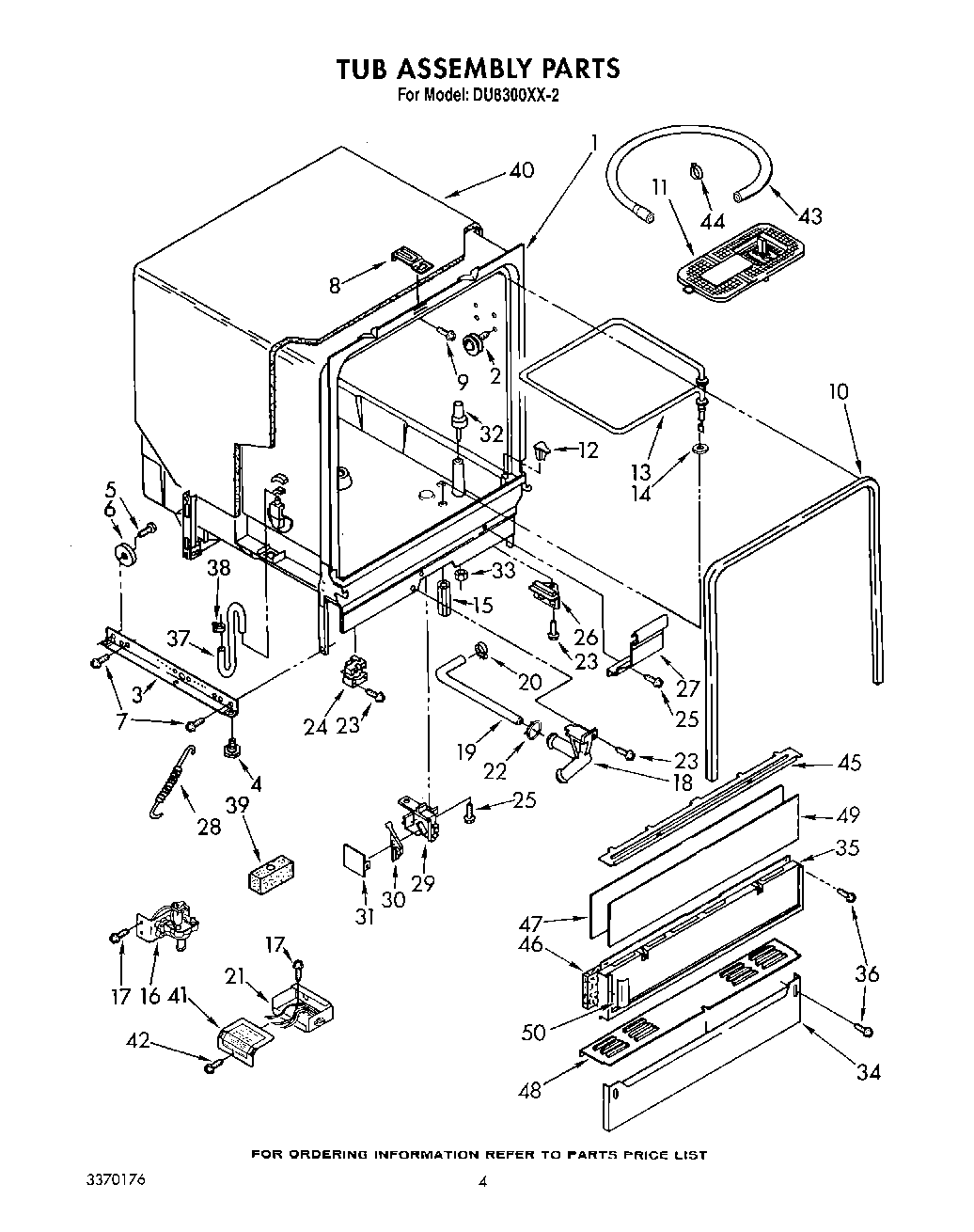

DU8300XX2 04 – TUB ASSEMBLY, LIT/OPTIONAL

DU8300XX2 04 – TUB ASSEMBLY, LIT/OPTIONAL

Written by

in

DU8300XX2 04 – TUB ASSEMBLY, LIT/OPTIONAL

Products

Position	Product
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Energy Guide
	WPL LIT3370465
	Avocado
	Instructions, Installation
	Platinum
	Toast
	Gold
	Side Panel Kit (White)
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	Vinyl Touch Up (Blue)
	285006 Whirlpool Spray
	Enamel, Black (1 Qt. Uncut)
	Side Panel Kits: (Almond)
	72017 Whirlpool Appliance Touch-Up Paint White
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	350942 Whirlpool Spray Paint
	WPL LIT3370176
	350956 Whirlpool Spray Assembly
	WPL LIT3369274
	WPL 72112
1	Tub Assembly (Not Serviceable)
2	Tub, Wheel Assembly (8)
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	Screw, 8-32
10	WPW10509257 Whirlpool Door Gasket
11	WP3369322 Whirlpool Cover Assembly
12	DEFLECTOR-DISHWASHER
13	WPW10082894 Whirlpool Dishwasher Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	Nut (2) (Heater Terminal)
16	Water Valve
17	WP489069 Whirlpool Compactor Screw
18	Check, Valve Assembly
19	Hose, Coupler
20	Clamp
21	Terminal Block & Plug Assembly
22	Clamp
23	WP489128 Whirlpool Refrigerator Screw
24	W10102260 Whirlpool Dishwasher Motor Relay
25	WP304231 Whirlpool Dishwasher Screw
26	WP3368928 Whirlpool Dishwasher Fuse
27	Shield, Harness
28	Spring & Bearing Assembly (2)
29	Housing, Float Switch
30	Switch, Float
31	Cover, Switch Housing
32	WP8519552 Whirlpool Dishwasher Float
33	Nut
34	WP3379920 Whirlpool Dishwasher Toe Panel
35	WP3369193 Whirlpool Dishwasher Panel
36	WP302868 Whirlpool Screw
37	Hose, Inlet
38	WP596669 Whirlpool Hose Clamp
39	Diverter
40	W11086533 Whirlpool Dishwasher Shield
41	Cover Assembly, Terminal Box
42	W11693756 Whirlpool Screw Assembly
43	675544 Whirlpool Drain Hose
44	WP3367052 Whirlpool Hose Clamp
45	WP3372412 Whirlpool Dishwasher Retainer
46	Sound Shield
47	Spacer, Corrugated
48	Extension
49	Access Panel (White/Black)
49	Access Panel (Almond)
50	Trim, Side (2)
