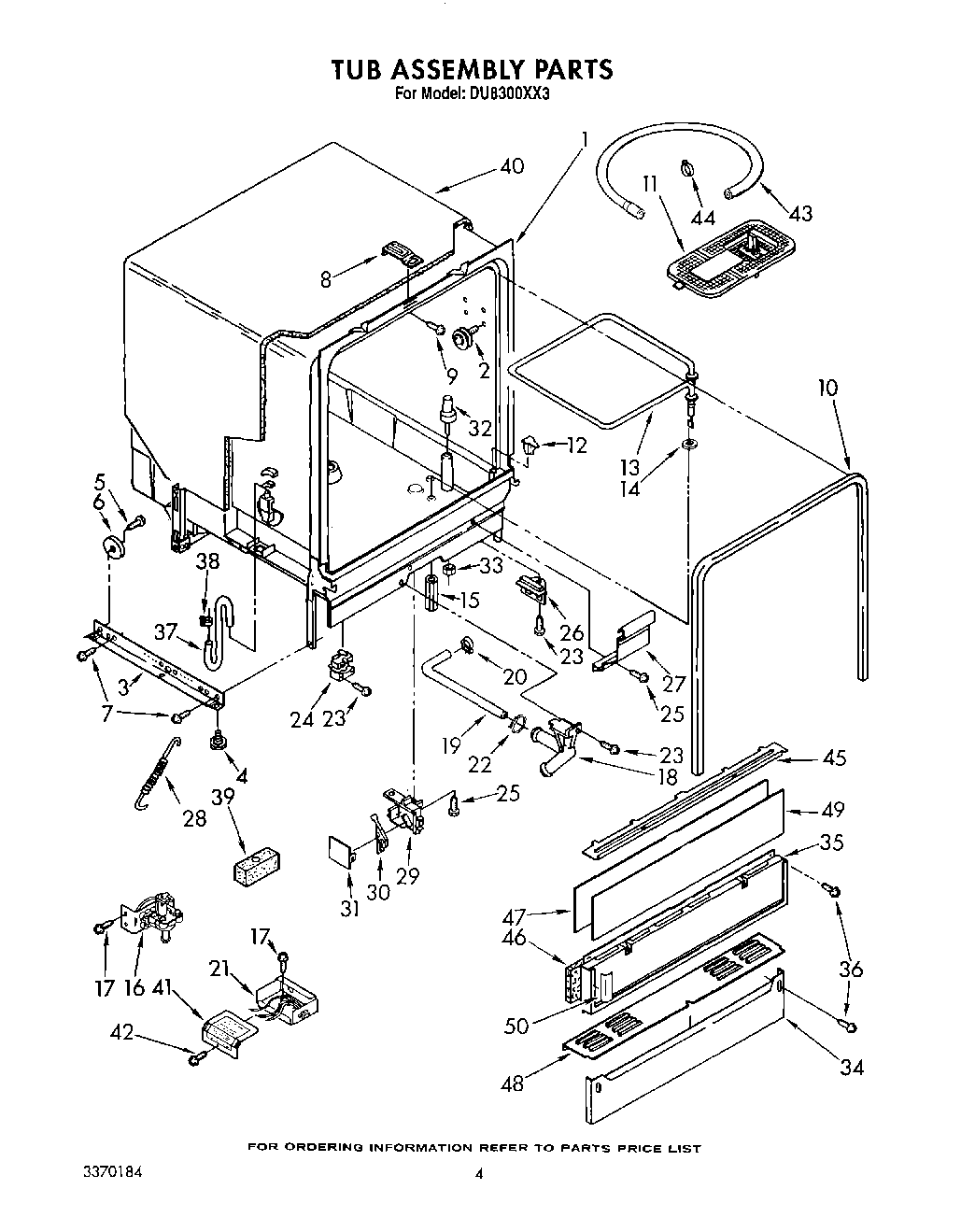

DU8300XX3 04 – TUB ASSEMBLY, LIT/OPTIONAL

DU8300XX3 04 – TUB ASSEMBLY, LIT/OPTIONAL

Written by

in

DU8300XX3 04 – TUB ASSEMBLY, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3369274
	Side Panel Kit: (Almond)
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	WPL LIT3370465
	Vinyl Touch Up (Blue)
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Avocado
	Gold
	Toast
	Platinum
	Instructions, Installation
	WPL LIT3370184
	Energy Guide
	Side Panel Kit (White)
	285006 Whirlpool Spray
	Enamel, Black (1 Qt. Uncut)
	350942 Whirlpool Spray Paint
	WPL 72112
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
1	Tub Assembly
2	Tub, Wheel Assembly (8)
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	Screw, 8-32
10	WPW10509257 Whirlpool Door Gasket
11	WP3369322 Whirlpool Cover Assembly
12	DEFLECTOR-DISHWASHER
13	WPW10082894 Whirlpool Dishwasher Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	Nut (2) (Heater Terminal)
16	Water Valve
17	WP489069 Whirlpool Compactor Screw
18	Check, Valve Assembly
19	Hose, Coupler
20	Clamp
21	Terminal Block & Plug Assembly
22	Clamp
23	WP489128 Whirlpool Refrigerator Screw
24	W10102260 Whirlpool Dishwasher Motor Relay
25	WP304231 Whirlpool Dishwasher Screw
26	WP3368928 Whirlpool Dishwasher Fuse
27	Shield, Harness
28	Spring & Bearing Assembly (2)
29	Housing, Float Switch
30	Switch, Float
31	Cover, Switch Housing
32	WP8519552 Whirlpool Dishwasher Float
33	Nut
34	WP3379920 Whirlpool Dishwasher Toe Panel
35	WP3369193 Whirlpool Dishwasher Panel
36	WP302868 Whirlpool Screw
37	Hose, Inlet
38	WP596669 Whirlpool Hose Clamp
39	Diverter
40	W11086533 Whirlpool Dishwasher Shield
41	Cover Assembly, Terminal Box
42	W11693756 Whirlpool Screw Assembly
43	675544 Whirlpool Drain Hose
44	WP3367052 Whirlpool Hose Clamp
45	WP3372412 Whirlpool Dishwasher Retainer
46	Sound Shield
47	Spacer, Corrugated
48	Extension
49	Access Panel (Almond)
49	Access Panel (White/Black)
50	Trim, Side (2)
