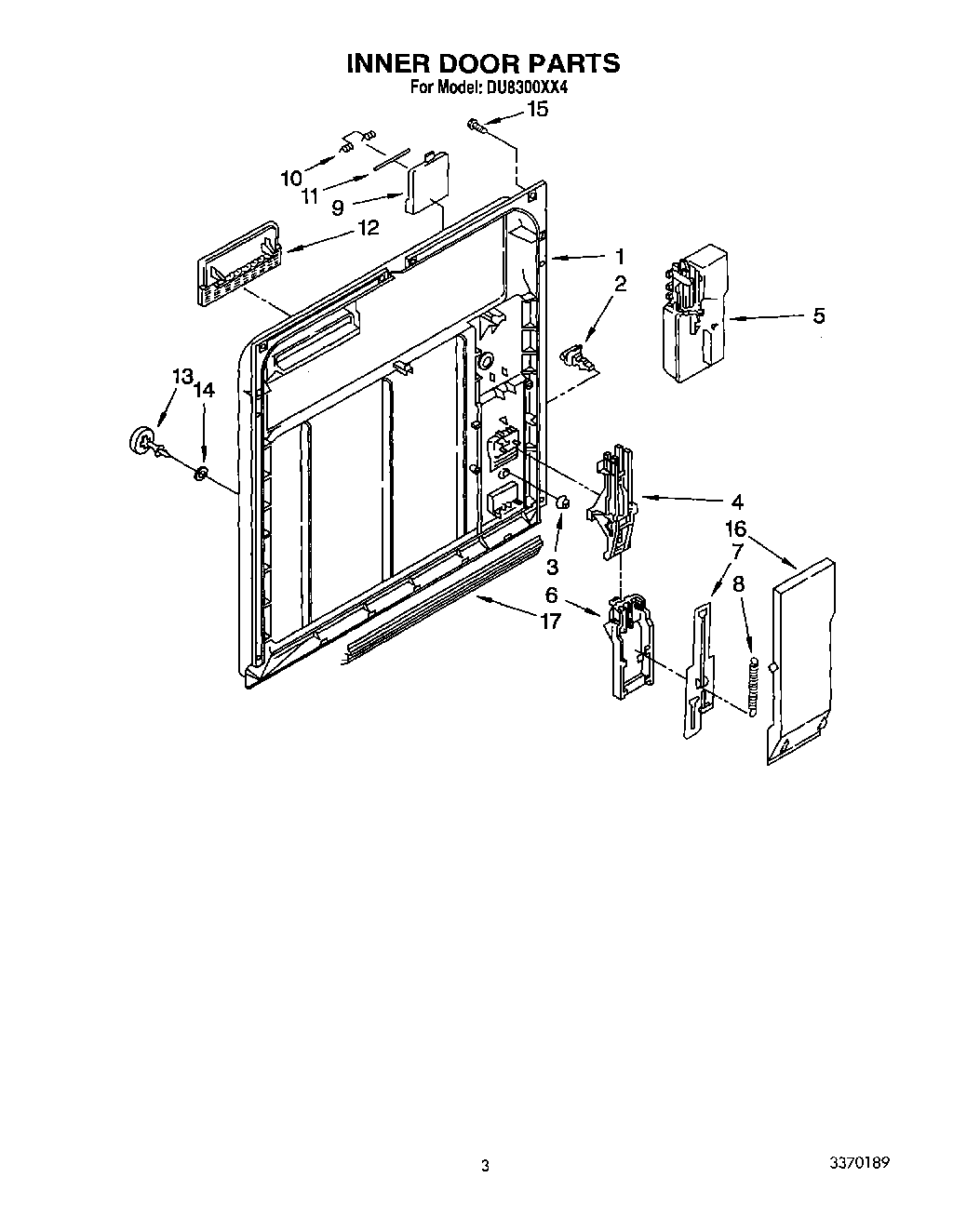

DU8300XX4 03 – INNER DOOR

DU8300XX4 03 – INNER DOOR

Written by

in

DU8300XX4 03 – INNER DOOR

Products

PositionProduct
1WP8528310 Whirlpool Dishwasher Inner Door
3LATCH KIT
48193646 Whirlpool Dishwasher Lower Detergent Dispenser Actuator Kit
5WP8052027 Whirlpool Dishwasher Dispenser
6Draw Bar, (Upper Dispenser)
8WP3368999 Whirlpool Dishwasher Spring
10WP8066018 Whirlpool Spring Assembly
114387043 Whirlpool Door Latch Kit
12WP3371710 Whirlpool Dishwasher Screen
14WP3378134 Whirlpool Dishwasher Cap
15WPW10348409 Whirlpool Screw
16Cover, Drip
17Spatter Shield
