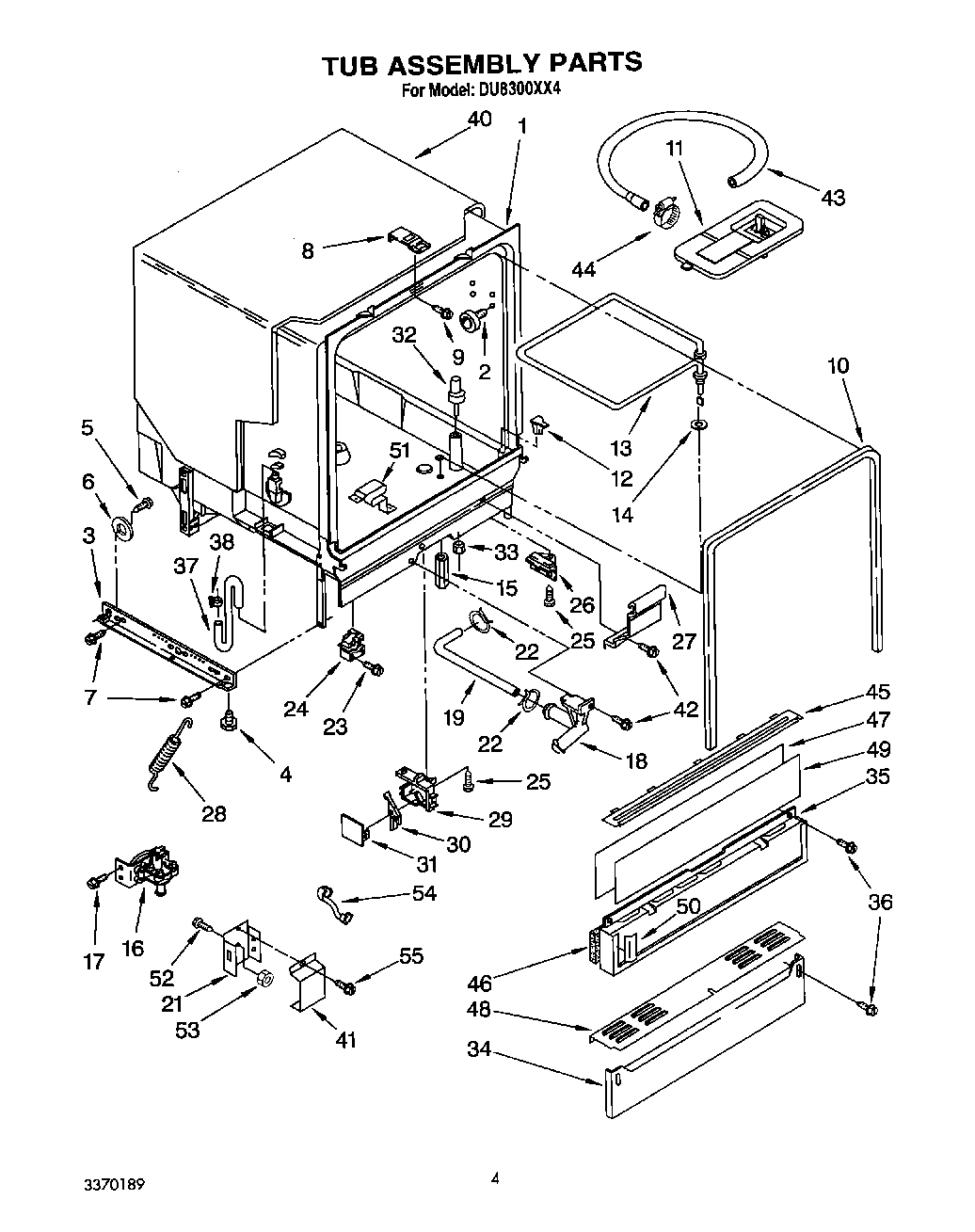

DU8300XX4 04 – TUB ASSEMBLY, LIT/OPTIONAL

DU8300XX4 04 – TUB ASSEMBLY, LIT/OPTIONAL

Written by

in

DU8300XX4 04 – TUB ASSEMBLY, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3369274
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	WPL LIT3370189
	WPL LIT3370465
	WPL LIT3369093
	WPL LIT3370042
1	Tub Assembly
2	Tub, Wheel Assembly (8)
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	Screw, 8-32
10	WPW10509257 Whirlpool Door Gasket
11	WP3369322 Whirlpool Cover Assembly
12	DEFLECTOR-DISHWASHER
13	WPW10082894 Whirlpool Dishwasher Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	Nut (2) (Heater Terminal)
16	Water Valve
17	WP489069 Whirlpool Compactor Screw
18	Check, Valve Assembly
19	Hose, Coupler
21	Box, Terminal
22	CLAMP, HOSE
23	WP489128 Whirlpool Refrigerator Screw
24	W10102260 Whirlpool Dishwasher Motor Relay
25	WP304231 Whirlpool Dishwasher Screw
26	WP3368928 Whirlpool Dishwasher Fuse
27	Shield, Harness
28	Spring & Bearing Assembly (2)
29	Housing, Float Switch
30	Switch, Float
31	Cover, Switch Housing
32	WP8519552 Whirlpool Dishwasher Float
33	Nut
34	WP3379920 Whirlpool Dishwasher Toe Panel
35	WP3369193 Whirlpool Dishwasher Panel
36	WP302868 Whirlpool Screw
37	Hose, Inlet
38	WP596669 Whirlpool Hose Clamp
40	W11086533 Whirlpool Dishwasher Shield
41	300068 Whirlpool Dishwasher Cover Assembly
42	W11693756 Whirlpool Screw Assembly
43	WP3374077 Whirlpool Dishwasher Drain Hose
44	WP3367052 Whirlpool Hose Clamp
45	WP3372412 Whirlpool Dishwasher Retainer
46	Sound Shield
47	Spacer, Corrugated
48	Extension
49	Access Panel (Almond)
49	Access Panel (White/Black)
50	Trim, Side (2)
51	Support, Heater
52	WP250830 Whirlpool Refrigerator Screw
53	WP488130 Whirlpool Air Conditioner Nut
54	Relief, Strain
55	72017 Whirlpool Appliance Touch-Up Paint White
55	Leveler (Thinner)
55	350956 Whirlpool Spray Assembly
55	Almond (Uncut)
55	Screw
55	WP72107 Whirlpool Touchup
55	WPL 72112
55	Platinum
55	Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
55	W10840471 Whirlpool Dishwasher Touch Up
55	WP676455 Whirlpool Dishwasher Touch-Up
55	WP676453 Whirlpool Dishwasher Touch-Up
55	676458 Whirlpool Dishwasher Tine Tip
55	285006 Whirlpool Spray
55	Enamel, Black (1 Qt. Uncut)
55	675679 Whirlpool Dishwasher White Tip Tines
55	Side Panel Kit (White)
55	350942 Whirlpool Spray Paint
55	Avocado
55	Gold
55	Toast
55	Side Panel Kit: (Almond)
