DU8350XT0 04 – DISHRACK AND PANEL

DU8350XT0 04 – DISHRACK AND PANEL

Written by

in

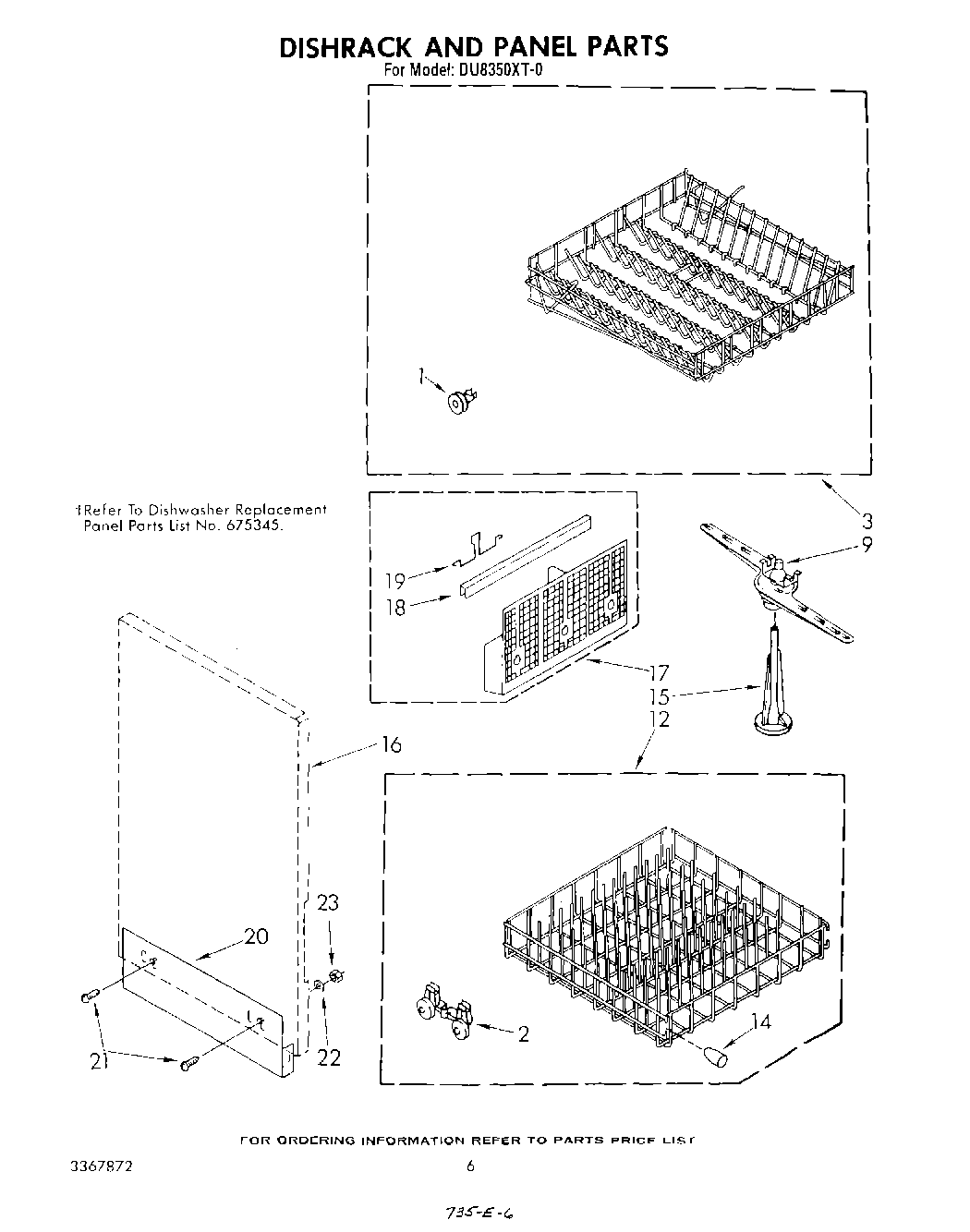

DU8350XT0 04 – DISHRACK AND PANEL

Products

PositionProduct
1Wheel & Axle Assembly (4)
24317933 Whirlpool Lower Rack Wheels
3W11169039 Whirlpool Dishwasher Dish Rack
9WP304204 Whirlpool Dishwasher Spray Arm
12W10311986 Whirlpool Dishwasher Lower Rack
14Bumper
15Tower
16Panel, Reversible Side
17Silverware Basket
18Trim, Basket
19Handle, Basket
20Panel, Lower Side
21Screw, Lower Side Panel Mounting (2)
22W11089212 Whirlpool Washer
23W10080180 Whirlpool Nut
